Products Bearings Inch Type

Inch Type

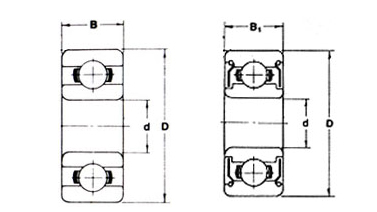

Bearing No.		Boundary Dimensions(Inch)				Radius Rs(min) inch	Basic Dynamic Load Rating Cr（kgf)	Basic Static Load Rating Cor（kgf)	Max. Speed (X1000rpm)		Ball Complement
Bearing No.		Boundary Dimensions(Inch)							Max. Speed (X1000rpm)		QTY	Size
		d	D	B	B1				Grease	Oil	（pcs)	（inch)
RO9	-	0.04	0.125	0.0469	-	0.0039	11	3	130	150	6	0.025
RO	ROZZ	0.0469	0.1562	0.0625	0.0937	0.0039	11	3.5	110	130	7	0.0236
R1	R1ZZ	0.055	0.1875	0.0781	0.1094	0.0039	24	7	90	110	6	0.0394
R1-4	R1-4ZZS	0.0781	0.25	0.937	0.1406	0.0039	29	10	67	80	7	0.0394
R133	-	0.0937	0.1875	0.0625	-	0.0039	19	6	80	95	7	0.0315
-	R133ZZS		0.1875	-	0.0937	0.0039	15	5.5	80	95	10	0.0236
R1-5	R1-5ZZS		0.3125	0.1094	0.1406	0.0059	56	18	60	71	6	0.0625
R144J	R144JZZS	0.125	0.25	0.0937	0.1094	0.0039	32	11	67	80	8	0.0394
R144	R144ZZS		0.25	0.0937	0.1094	0.0039	29	10	67	80	7	0.0394
R2-5	R2-5ZZ		0.3125	0.1094	0.1406	0.0039	57	18	60	67	6	0.0625
R2-6	R2-6ZZ		0.375	0.1094	0.1406	0.0059	65	23	53	63	7	0.0625
R2	R2ZZ		0.375	0.1562	0.1562	0.0018	64	22	56	67	7	0.0625
R2A	R2AZZ		0.5	0.1719	0.1719	0.0018	65	23	53	63	7	0.0625
R155	R155ZZS	0.1562	0.3125	0.1094	0.125	0.0039	37	15	53	63	10	0.0394
R156	R156ZZS	0.1875	0.3125	0.1094	0.125	0.0039	37	15	53	63	10	0.0394
R166	R166ZZ		0.375	0.125	0.125	0.0039	72	28	50	60	8	0.0625
R3	R3ZZ		0.5	0.1562	0.196	0.0018	133	50	43	53	7	0.0937
R3A	R3AZZ		0.625	0.196	0.196	0.0018	151	63	38	45	8	0.0937
R168	R168ZZS	0.25	0.375	0.125	0.125	0.0039	38	18	48	56	11	0.0394
R188	R188ZZ		0.5	0.125	0.1875	0.0059	110	45	40	50	8	0.0787
R4	R4ZZ		0.625	0.196	0.196	0.0018	151	63	38	45	8	0.0937
R4A	R4AZZ		0.75	0.2188	0.2812	0.0157	238	91	36	43	6	0.1378
R1810	R1810ZZS	0.3125	0.5	0.1562	0.1562	0.0059	55	28	40	48	12	0.0472
R6	R6ZZ	0.375	0.875	0.2188	0.2812	0.0157	340	145	32	38	7	0.1563
R8	R8ZZ	0.5	1.125	0.25	0.3125	0.0157	521	246	27	32	8	0.1875
R10	R10ZZ	0.625	1.375	0.2812	0.3438	0.0315	611	335	21	25	10	0.1875
R12	R12ZZ	0.75	1.625	0.3125	0.4375	0.0315	806	457	17	21	10	0.2187
