Hexagon Bore

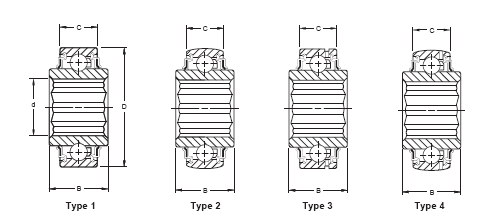

Bearing No. | Type | Shaft Size | Boundary Dimensions(mm) | ||||
| A | d | D | B | C | |||
| 202KRR3 | 1 | 9/16. | 14.3 | 16.46 | 35 | 13 | 11 |
| 204KRR2 | 1 | 11/16. | 17.65 | 20.22 | 47 | 20.96 | 14 |
| 205KRR2 | 1 | 7/8. | 22.25 | 25.65 | 52 | 25.4 | 15 |
| 205KRRB2 | 2 | 7/8. | 22.25 | 25.65 | 52 | 25.4 | 15 |
| 205PPB13 | 2 | 7/8. | 22.25 | 25.65 | 52 | 25.4 | 15 |
| 206KPP3 | 1 | 1 | 25.43 | 29.31 | 62 | 24 | 16 |
| 206KPPB3 | 2 | 1 | 25.43 | 29.31 | 62 | 24 | 16 |
| 206KRR6 | 1 | 1 | 25.43 | 29.31 | 62 | 24 | 16 |
| 206KRRB6 | 2 | 1 | 25.43 | 29.31 | 62 | 24 | 16 |
| 207KRRB9 | 2 | 1-1/8. | 28.6 | 32.97 | 72 | 37.7 | 17 |
| 207KRRB12 | 2 | 1-1/8. | 28.6 | 32.97 | 72 | 25 | 17 |
| 207KPP3 | 1 | 1-1/4. | 31.77 | 36.4 | 72 | 37.7 | 17 |
| 207KPPB3 | 2 | 1-1/4. | 31.77 | 36.4 | 72 | 25 | 17 |
| 207KRR17 | 1 | 1-1/4. | 31.77 | 36.65 | 72 | 25 | 17 |
| 207KRRB17 | 2 | 1-1/4. | 31.77 | 36.65 | 72 | 25 | 17 |
| W208PPB16 | 2 | 1-1/4. | 31.77 | 36.65 | 80 | 36.53 | 18 |
| W208KRR8 | 1 | 1-1/4. | 31.77 | 36.65 | 80 | 36.53 | 18 |
| W208KRRB6 | 2 | 8/13. | 34.95 | 40.3 | 80 | 36.53 | 21 |
| 209KRRB2 | 2 | 1-1/2. | 38.12 | 43.99 | 85 | 30 | 19 |
| W210PPB7 | 2 | 8/15. | 41.35 | 47.65 | 90 | 30.18 | 30.18 |
| G206KPP4 | 3 | 1 | 25.43 | 29.26 | 62 | 24 | 18 |
| G206KPPB4 | 4 | 1 | 25.43 | 29.26 | 62 | 24 | 18 |
| G206KRRB6 | 4 | 1 | 25.43 | 29.26 | 62 | 24 | 18 |
| G207KPPB2 | 4 | 1-1/8. | 28.6 | 32.97 | 72 | 37.7 | 19 |
| GW208KRRB5 | 4 | 1-1/4. | 31.77 | 36.65 | 80 | 36.51 | 21 |
| GW208PPB22 | 2 | 1-1/4. | 31.88 | 36.75 | 80 | 36.51 | 21 |
| GC1200KPPB2 | 4/13. | 44.48 | 51.31 | 100 | 57.15 | 25 | |
