NPB...T
NPB Series Spherical Bearings
BALL
• GCr15 Chrome Steel
• Heat Treated
RACE
• Carbon Steel
• Heat Treated
• PTFE Lined

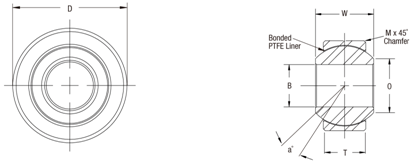

| Part Number | Boundary Dimensions (inch) | Misalign Angle aº | Radial Static Load (lbs) | Ult. Axial Static Load (lbs) | No Load Breakaway Torque In. (lbs) | Net Weight (lbs) | ||||||
| B + .0000 - .0005 | D + .0000 - .0007 | T ± .005 | W + .000 - .005 | 0 Flat Dia. Ref. | M Cham. Ref. | Ball Dia. Ref | ||||||
| NPB3T | 0.19 | 0.5625 | 0.218 | 0.281 | 0.293 | 0.015 | 0.406 | 10 | 3975 | 150 | 0.25-5 | 0.02 |
| NPB4T | 0.25 | 0.6562 | 0.25 | 0.343 | 0.364 | 0.022 | 0.5 | 10 | 6040 | 430 | 0.25-5 | 0.02 |
| NPB5T | 0.3125 | 0.75 | 0.281 | 0.375 | 0.419 | 0.032 | 0.562 | 10 | 8750 | 700 | 1-8 | 0.03 |
| NPB6T | 0.375 | 0.8125 | 0.312 | 0.406 | 0.475 | 0.032 | 0.656 | 9 | 10540 | 1100 | 1-8 | 0.04 |
| NPB7T | 0.4375 | 0.9062 | 0.343 | 0.437 | 0.53 | 0.032 | 0.687 | 8 | 13200 | 1400 | 3-12 | 0.05 |
| NPB8T | 0.5 | 1 | 0.39 | 0.5 | 0.6 | 0.032 | 0.781 | 8 | 17900 | 2100 | 3-12 | 0.07 |
| NPB9T | 0.5625 | 1.0937 | 0.437 | 0.562 | 0.67 | 0.032 | 0.875 | 8 | 23200 | 3680 | 3-12 | 0.09 |
| NPB10T | 0.625 | 1.1875 | 0.5 | 0.625 | 0.739 | 0.032 | 0.968 | 8 | 30500 | 4720 | 3-12 | 0.12 |
| NPB12T | 0.75 | 1.4375 | 0.593 | 0.75 | 0.92 | 0.044 | 1.187 | 8 | 46400 | 6750 | 3-12 | 0.21 |
| NPB14T | 0.875 | 1.5625 | 0.703 | 0.875 | 0.98 | 0.044 | 1.312 | 8 | 62200 | 9350 | 3-12 | 0.27 |
| NPB16T | 1 | 1.75 | 0.797 | 1 | 1.118 | 0.044 | 1.5 | 9 | 82200 | 12160 | 3-12 | 0.39 |
