YPB...T
YBP High Misalignment Carbon Steel Plain Bearings-PTFE Lined
BALL
• GCr15 Chrome Steel
• Heat Treated
RACE
• Carbon Steel
• Heat Treated
• PTFE Lined

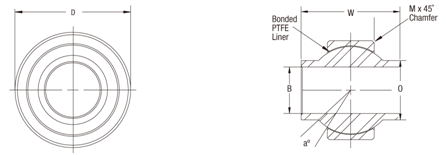

| Part Number | Boundary Dimensions (inch) | Misalign Angle aº | Radial Static Load (lbs) | Net Weight (lbs) | ||||||
| B + .0000 - .0005 | D + .0000 - .0007 | T ± .005 | W + .000 - .005 | 0 Flat Dia. Ref. | M Cham. Ref. | Ball Dia. Ref | ||||
| YPB4T | 0.25 | 0.74 | 0.255 | 0.593 | 0.39 | 0.02 | 0.593 | 24 | 7560 | 0.04 |
| YPB5T | 0.3125 | 0.906 | 0.345 | 0.813 | 0.512 | 0.03 | 0.781 | 23 | 16975 | 0.07 |
| YPB6T | 0.375 | 0.906 | 0.345 | 0.813 | 0.512 | 0.03 | 0.781 | 23 | 16975 | 0.07 |
| YPB7T | 0.4375 | 1 | 0.345 | 0.875 | 0.618 | 0.03 | 0.875 | 22 | 19018 | 0.1 |
| YPB8T | 0.5 | 1.125 | 0.401 | 0.937 | 0.73 | 0.03 | 1 | 20 | 25263 | 0.16 |
| YPB10T | 0.625 | 1.375 | 0.567 | 1.2 | 0.856 | 0.03 | 1.25 | 20 | 44651 | 0.25 |
| YPB12T | 0.75 | 1.5625 | 0.62 | 1.28 | 0.97 | 0.035 | 1.325 | 18 | 53507 | 0.32 |
