PCM..., PCM...T
PCM & PCM-T Series Chromoly Steel Rod Ends
BALL
• 52100 Bearing Steel
• Hard Chrome Plated
• Heat Treated
• Precision Ground
BODY
• Alloy Steel
• Black Oxide Coated
• Heat Treated
• PTFE Lined (PCM-T)
• Metal-to-Metal, or Metal-to-Bronze(PCM-T)

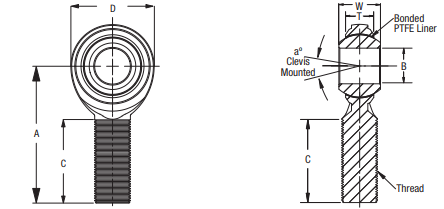

Part Number | Boundary Dimensions (inch) | Thread UNF-3A | Misalign Angle a° | Ult. Radial Static Load (lbs.) | Approx. Bearing Weight (lbs) | ||||||
Left Hand | Right Hand | B +0.0015 -0.0005 | W ±0.005 | A ±0.015 | D Ref. | Ball Dia. Ref. | C +0.062 -0.031 | ||||
| PCML8 | PCMR8 | 0.5 | 0.625 | 2.438 | 1.312 | 0.937 | 1.5 | 1/2-20 | 20 | 17000 | 0.24 |
| PCML8-10 | PCMR8-10 | 0.5 | 0.625 | 2.625 | 1.5 | 0.937 | 1.625 | 5/8-18 | 20 | 19300 | 0.3 |
| PCML8-10T | PCMR8-10T | 0.5 | 0.625 | 2.625 | 1.5 | 0.937 | 1.625 | 5/8-18 | 20 | 17650 | 0.3 |
| PCML8T | PCMR8T | 0.5 | 0.625 | 2.438 | 1.312 | 0.937 | 1.5 | 1/2-20 | 20 | 14500 | 0.24 |
| PCML10 | PCMR10 | 0.625 | 0.75 | 2.625 | 1.5 | 1.125 | 1.625 | 5/8-18 | 26 | 18000 | 0.36 |
| PCML10-12 | PCMR10-12 | 0.625 | 0.75 | 2.875 | 1.75 | 1.125 | 1.75 | 3/4-16 | 26 | 27000 | 0.48 |
| PCML10-12T | PCMR10-12T | 0.625 | 0.75 | 2.875 | 1.75 | 1.125 | 1.75 | 3/4-16 | 26 | 23000 | 0.48 |
| PCML10T | PCMR10T | 0.625 | 0.75 | 2.625 | 1.5 | 1.125 | 1.625 | 5/8-18 | 26 | 15200 | 0.36 |
| PCML12 | PCMR12 | 0.75 | 0.875 | 2.875 | 1.75 | 1.312 | 1.75 | 3/4-16 | 24 | 25000 | 0.57 |
| PCML12T | PCMR12T | 0.75 | 0.875 | 2.875 | 1.75 | 1.312 | 1.75 | 3/4-16 | 24 | 21400 | 0.57 |
