PCYM...T
PCYM-T Series Chromoly Steel Rod Ends
BALL
• 52100 Bearing Steel
• Hard Chrome Plated
• Heat Treated
• Precision Ground
• High Misalignment
BODY
• Alloy Steel
• Heat Treated
• PTFE Lined
• Black Oxide Coated

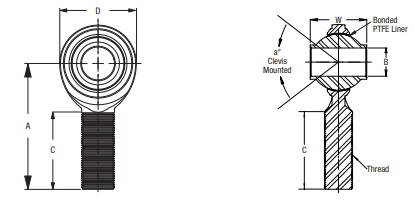

Part Number | Boundary Dimensions (inch) | Thread UNF-3A | Misalign Angle a° | Ult. Radial Static Load ( lbs.) | Approx. Net Weight (lbs) | ||||||
Left Hand | Right Hand | B +0.0015 -0.0005 | W ±0.005 | A ±0.015 | D Ref. | Ball Dia. Ref. | C +0.062 -0.031 | ||||
| PCYML6T | PCYMR6T | 0.375 | 0.875 | 2.125 | 1.125 | 0.812 | 1.375 | 3/8-24 | 55 | 11050 | 0.14 |
| PCYML7T | PCYMR7T | 0.4375 | 1 | 2.438 | 1.312 | 0.937 | 1.5 | 7/16-20 | 58 | 14449 | 0.22 |
| PCYML8-10T | PCYMR8-10T | 0.5 | 1.25 | 2.875 | 1.75 | 1.125 | 1.75 | 5/8-18 | 65 | 24158 | 0.44 |
| PCYML8T | PCYMR8T | 0.5 | 1.25 | 2.625 | 1.5 | 1.125 | 1.625 | 1/2-20 | 65 | 16240 | 0.33 |
| PCYML10-12T | PCYMR10-12T | 0.625 | 1.375 | 3.375 | 2 | 1.312 | 2 | 3/4-16 | 64 | 30290 | 0.68 |
| PCYML10T | PCYMR10T | 0.625 | 1.375 | 2.875 | 1.75 | 1.312 | 1.75 | 5/8-18 | 64 | 21219 | 0.51 |
| PCYML12T | PCYMR12T | 0.75 | 1.5 | 3.375 | 2 | 1.5 | 2 | 3/4-16 | 61 | 29127 | 0.79 |
