PCYF...T
PCYM-T Series Chromoly Steel Rod Ends
BALL
• 52100 Bearing Steel
• Hard Chrome Plated
• Heat Treated
• Precision Ground
• High Misalignment
BODY
• Alloy Steel
• Heat Treated
• PTFE Lined
• Black Oxide Coated

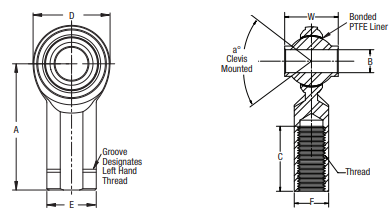

Part Number | Boundary Dimensions (inch) | Thread UNF-2B | Misalign Angle a° | Ult. Radial Static Load ( lbs.) | Approx. Bearing Weight (lbs) | |||||||
Left Hand | Right Hand | B +0.0015 -0.0005 | W ±0.005 | A ±0.015 | D Ref. | C +0.062 -0.031 | E ±0.01 | F +0.002 -0.01 | ||||
| PCYFL6T | PCYFR6T | 0.375 | 0.875 | 2.125 | 1.125 | 1.062 | 0.687 | 0.562 | 3/8-24 | 55 | 11050 | 0.2 |
| PCYFL8T | PCYFR8T | 0.5 | 1.25 | 2.625 | 1.5 | 1.375 | 0.875 | 0.75 | 1/2-20 | 65 | 16240 | 0.43 |
| PCYFL10T | PCYFR10T | 0.625 | 1.375 | 2.875 | 1.75 | 1.562 | 1 | 0.875 | 5/8-18 | 64 | 21219 | 0.57 |
| PCYFL12T | PCYFR12T | 0.75 | 1.5 | 3.375 | 2 | 1.785 | 1.125 | 1 | 3/4-16 | 61 | 29127 | 0.84 |
