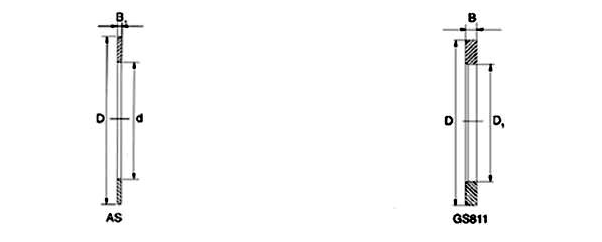

AS Bearing Washer
Shaft Dia | Bearing Washer | Mass Approx. | Housing Locating Washer | Mass Approx. | Boundary Dimensions | ||||
d | D1 | D | B1 | B | |||||
mm | g | g | mm | ||||||
4 | AS0414 | 1 | 4 | 14 | 1 | ||||
5 | AS0515 | 1 | 5 | 15 | 1 | ||||
6 | AS0614 | 1 | 6 | 14 | 0.8 | ||||
6 | AS0619 | 2 | 6 | 19 | 1 | 2.75 | |||
8 | AS0821 | 2 | 8 | 21 | 1 | 2.75 | |||
10 | AS1024 | 3 | 10 | 24 | 1 | 2.75 | |||
12 | AS1226 | 3 | 12 | 26 | 1 | 2.75 | |||
15 | AS1528 | 3 | GS81102 | 8 | 15 | 16 | 28 | 1 | 2.75 |
17 | AS1722 | 3 | 17 | 22 | 0.5 | ||||
17 | AS1730 | 4 | GS81103 | 9 | 17 | 18 | 30 | 1 | 2.75 |
20 | AS2035 | 5 | GS81104 | 12 | 20 | 21 | 35 | 1 | 2.75 |
25 | AS2542 | 7 | GS81105 | 19 | 25 | 26 | 42 | 1 | 3 |
30 | AS3047 | 8 | GS81106 | 20 | 30 | 32 | 47 | 1 | 3 |
35 | AS3552 | 9 | GS81107 | 27 | 35 | 37 | 52 | 1 | 3.5 |
40 | AS4060 | 12 | GS81108 | 37 | 40 | 42 | 60 | 1 | 3.5 |
45 | AS4565 | 13 | GS81109 | 47 | 45 | 47 | 65 | 1 | 4 |
50 | AS5070 | 14 | GS81110 | 51 | 50 | 52 | 70 | 1 | 4 |
55 | AS5578 | 18 | GS81111 | 82 | 55 | 57 | 78 | 1 | 5 |
60 | AS6085 | 22 | GS81112 | 92 | 60 | 62 | 85 | 1 | 4.75 |
65 | AS6590 | 24 | GS81113 | 110 | 65 | 67 | 90 | 1 | 5.25 |
70 | AS7095 | 25 | GS81114 | 120 | 70 | 72 | 95 | 1 | 5.25 |
75 | AS75100 | 27 | GS81115 | 136 | 75 | 77 | 100 | 1 | 5.75 |
80 | AS80105 | 28 | GS81116 | 144 | 80 | 82 | 105 | 1 | 5.75 |
85 | AS85110 | 29 | GS81117 | 151 | 85 | 87 | 110 | 1 | 5.75 |
90 | AS90120 | 39 | GS81118 | 225 | 90 | 92 | 120 | 1 | 6.5 |
100 | AS100135 | 50 | GS81120 | 350 | 100 | 102 | 135 | 1 | 7 |
110 | AS110145 | 55 | GS81122 | 385 | 110 | 112 | 145 | 1 | 7 |
120 | AS120155 | 59 | GS81124 | 415 | 120 | 122 | 155 | 1 | 7 |
130 | AS130170 | 65 | GS81128 | 643 | 130 | 132 | 170 | 1 | 9 |
140 | AS140180 | 79 | GS81130 | 749 | 140 | 142 | 180 | 1 | 9.5 |
150 | AS150190 | 84 | GS81132 | 796 | 150 | 152 | 190 | 1 | 9.5 |
160 | AS160200 | 89 | GS81134 | 842 | 160 | 162 | 200 | 1 | 9.5 |
