Products Bearings K874, K894 Series

K874, K894 Series

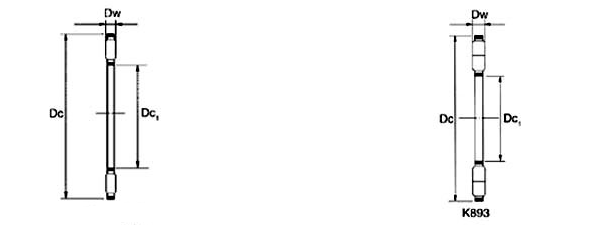

K811 drawing.png

Shaft Dia	Bearing No.	Mass Approx.	Boundary Dimensions			Basic Load Rating		Limiting Speed


			Dc1	Dc	Dw	Cr Dynamic	Cor Static	Oil
			Dc1	Dc	Dw	Cr Dynamic	Cor Static	Oil
mm		g	mm			N		rpm
70	K81114TN	92	70	95	7.5	110800	364500	2900
	K81214TN	212	70	105	11	186000	549700	2700
	K89314TN	290	70	125	10	238500	829600	2400
	K87414	650	70	150	11	359000	1376900	2200
	K89414	920	70	150	16	449800	1389600	2100
75	K81115TN	96	75	100	7.5	104500	339600	2700
	K81215TN	195	75	110	11	171500	498700	2600
	K89315TN	375	75	135	11	284800	1009000	2200
	K87415	800	75	160	12	429500	1658900	2000
	K89415	1070	75	160	17	499600	1579800	2000
80	K81116TN	95	80	105	7.5	105800	348800	2600
	K81216TN	234	80	115	11	200600	629600	2400
	K89316TN	420	80	140	11	304500	1109800	2100
	K87416	880	80	170	12	449000	1807900	1900
	K89416	1410	80	170	18	559600	1769500	1900
85	K81117TN	118	85	110	7.5	111900	384900	2500
	K81217TN	280	85	125	12	216500	659700	2300
	K89317	540	85	150	12	324600	1099600	2000
	K87417	1030	85	180	13	484600	1919100	1800
	K89417	1610	85	180	19	619500	1979800	1800
90	K81118TN	150	90	120	9	140600	459800	2300
	K81218TN	542	90	135	14	288900	886900	2100
	K89318	620	90	155	12	329500	1199400	1900
	K87418	1130	90	190	13	508900	2086500	1700
	K89418	1870	90	190	20	678900	2199600	1700
100	K81120TN	250	100	135	11	197000	649800	2000
	K81220	600	100	150	15	279800	839600	1900
	K89320	810	100	170	13	379500	1399500	1700
	K87420	1660	100	210	15	678900	2798900	1500
	K89420	2400	100	210	22	849000	2847900	1500
110	K81122	325	110	145	11	194600	649600	1900
	K81222	685	110	160	15	299800	939700	1800
	K89322	1150	110	190	15	499500	1867900	1600
	K87422	2150	110	230	17	809600	3349600	1400
	K89422	3300	110	230	24	998500	3397800	1400
120	K81124	340	120	155	11	202700	698900	1700
	K81224	730	120	170	15	309600	979600	1700
	K89324	1720	120	210	17	639500	2417600	1400
	K87424	2920	120	250	18	959600	4097900	1300
	K89424	4300	120	250	26	1159500	3987900	1300
130	K81126	414	130	170	12	232700	809600	1600
	K81226	1144	130	190	19	424500	1287900	1500
	K89326	1910	130	225	18	709600	2697900	1300
	K87426	3410	130	270	19	1049500	4549600	1200
	K89426	5000	130	270	28	1329700	4599800	1200
140	K81128	448	140	180	12	241800	865900	1500
	K81228	1197	140	200	19	444500	1449700	1400
	K87428	2390	140	240	19	819700	3198900	1200
	K89328	3680	140	280	19	1109800	4749800	1100
	K89428	6000	140	280	28	1379600	4949800	1100
150	K81130	474	150	190	12	249600	929700	1400
	K81230	1520	150	215	21	589600	1938900	1300
	K89330	2510	150	250	19	837900	3347900	1200
	K87430	4450	150	300	21	1259800	5497900	1000
	K89430	7100	150	300	30	1569500	5698900	1000
160	K81132	505	160	200	12	259600	989600	1300
	K81232	1603	160	225	21	599500	2028900	1200
	K89332	3150	160	270	21	969600	3898800	1100
	K87432	5330	160	320	22	1447800	6598800	1000
	K89432	8600	160	320	32	1778600	6498800	950
