Products Bearings K811,K812,K893 Series

K811,K812,K893 Series

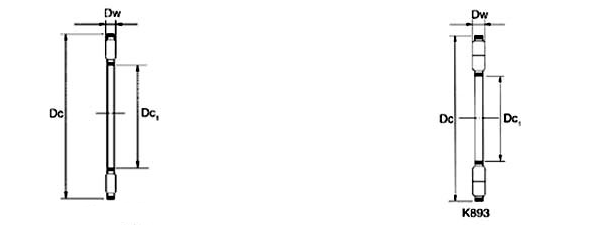

K811 drawing.png

Shaft Dia	Bearing No.	Mass Approx.	Boundary Dimensions			Basic Load Rating		Limiting Speed


			Dc1	Dc	Dw	Cr Dynamic	Cor Static	Oil
			Dc1	Dc	Dw	Cr Dynamic	Cor Static	Oil
mm		g	mm			N		rpm
15	K81102TN	6	15	28	3.5	13500	28000	11000
17	K81103TN	9	17	30	3.5	14800	32900	10000
20	K81104TN	13	20	35	4.5	23700	52600	8500
25	K81105TN	15	25	42	5	32900	70000	7000
30	K81106TN	17	30	47	5	34800	85000	6000
	K81206TN	33	30	52	7.5	63500	139000	6000
	K89306TN	40	30	60	5.5	67900	188500	5000
35	K81107TN	19	35	52	5	38500	100900	5500
	K81207TN	43	35	62	7.5	79800	198100	4900
	K89307TN	53	35	68	6	79800	236500	4600
	K89407TN	111	35	80	9	149000	425000	4200
40	K81108TN	31	40	60	6	55000	147500	4800
	K81208TN	81	40	68	9	106500	264600	4400
	K89308TN	98	40	78	7	119000	384500	4000
	K87408	127	40	90	6.5	127000	478000	3600
	K89408TN	200	40	90	10	199000	579500	3700
45	K81109TN	35	45	65	6	58500	162500	4400
	K81209TN	85	45	73	9	104500	264100	4000
	K89309TN	121	45	85	7.5	138500	439000	3600
	K87409	174	45	100	7	153500	559800	3200
	K89409TN	262	45	100	11	238600	699200	3300
50	K81110TN	38	50	70	6	60700	167000	4000
	K81210TN	98	50	78	9	106000	309000	3700
	K89310TN	175	50	95	8	166500	557900	3200
	K87410	256	50	110	8	199600	738000	2900
	K89410TN	360	50	110	12	280500	899000	3000
55	K81111TN	45	55	78	6	87900	298700	3600
	K81211TN	166	55	90	11	153100	404500	3300
	K89311TN	195	55	105	9	183200	599800	2900
	K87411	303	55	120	8	221500	868600	2600
	K89411TN	473	55	120	13	339500	1049500	2700
60	K81112TN	82	60	85	7.5	102100	309500	3300
	K81212TN	176	60	95	11	171100	478000	3100
	K89312TN	210	60	110	9	195100	669800	2700
	K87412	380	60	130	9	259100	998600	2500
	K89412TN	538	60	130	14	388000	1219500	2500
65	K81113TN	90	65	90	7.5	106500	339500	3100
	K81213TN	185	65	100	11	176800	499500	2900
	K89313TN	210	65	115	9	193500	667900	2600
	K87413	470	65	140	10	299800	1139500	2300
	K89413TN	790	65	140	15	444000	1396000	2300
