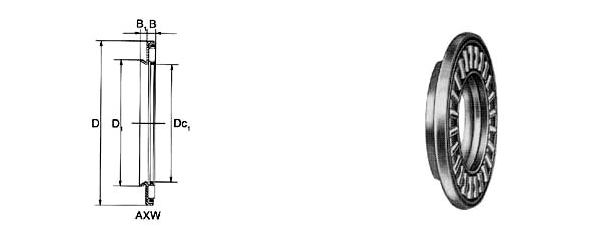

AXW...
Shaft Dia | Bearing No. | Mass Approx. | Boundary Dimensions | Basic Load Rating | Limiting Speed | |||||
| Dc1 | D1 | D | B | B1 | Cr Dynamic | Cor Static | Oil | |||
| mm | g | mm | N | rpm | ||||||
| 10 | AXW10 | 8.3 | 10 | 14 | 27 | 3.2 | 3 | 9100 | 24000 | 14000 |
| 12 | AXW12 | 9.1 | 12 | 16 | 29 | 3.2 | 3 | 8900 | 27800 | 13000 |
| 15 | AXW15 | 10.1 | 15 | 21 | 31 | 3.2 | 3.5 | 10500 | 35000 | 11000 |
| 17 | AXW17 | 11 | 17 | 23 | 33 | 3.2 | 3.5 | 10900 | 38800 | 10000 |
| 20 | AXW20 | 14 | 20 | 26 | 38 | 3.2 | 3.5 | 12700 | 45600 | 8500 |
| 25 | AXW25 | 19.5 | 25 | 32 | 45 | 3.2 | 4 | 13900 | 57500 | 7000 |
| 30 | AXW30 | 22 | 30 | 37 | 50 | 3.2 | 4 | 15900 | 69500 | 6000 |
| 35 | AXW35 | 26.6 | 35 | 42 | 55 | 3.2 | 4 | 17000 | 80100 | 5500 |
| 40 | AXW40 | 39.2 | 40 | 47 | 63 | 4.2 | 4 | 27800 | 109000 | 4700 |
| 45 | AXW45 | 43.4 | 45 | 52 | 68 | 4.2 | 4 | 29500 | 119900 | 4300 |
| 50 | AXW50 | 49.2 | 50 | 58 | 73 | 4.2 | 4.5 | 31800 | 140900 | 3900 |
