Products Bearings Full Complement-B..., BH..., M..., MH...

Full Complement-B..., BH..., M..., MH...

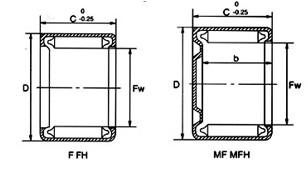

drawn cup full complement inch drawing.png

Shaft Dia	Bearing No.		Boundary Dimensions			Basic Load Rating		Limiting Speed
	Bearing No.		Boundary Dimensions			Basic Load Rating		Limiting Speed
	Open End	Closed End	Fw	D	C	Cr Dynamic	Cor Static
	Open End	Closed End	Fw	D	C	Cr Dynamic	Cor Static	Oil
mm			mm			N		rpm
6.35	B-44	M-441	6.35	11.11	6.35	566	531	10000
	B-45	M-451	6.35	11.11	7.92	768	786	10000
	B-47	M-471	6.35	11.11	11.13	1210	1410	10000
7.94	B-55	M-551	7.94	12.7	7.92	883	985	8300
	B-56	-	7.94	12.7	9.52	1140	1370	8300
	B-57	M-571	7.94	12.7	11.13	1390	1770	8300
	B-59	-	7.94	12.7	14.27	1850	2550	8300
	BH-57	-	7.94	14.29	11.13	1530	1590	11000
	BH-59	-	7.94	14.29	14.27	2080	2340	11000
9.52	B-65	M-651	9.52	14.29	7.92	984	1180	7100
	B-610	M-6101	9.52	14.29	15.88	2310	3530	7100
	BH-68	-	9.52	15.88	12.7	2050	2380	9400
11.11	B-76	-	11.11	15.88	9.52	1390	1930	6300
	B-710	-	11.11	15.88	15.88	2520	4130	6300
	BH-78	-	11.11	17.46	12.7	2260	2780	8300
12.7	B-85	-	12.7	17.46	7.92	1160	1580	5500
	B-810	M-8101	12.7	17.46	15.88	2720	4720	5500
	BH-87	-	12.7	19.05	11.13	2060	2550	7500
	BH-810	-	12.7	19.05	15.88	3180	4440	7500
14.29	B-95	M-951	14.29	19.05	7.92	1240	1780	5000
	B-910	-	14.29	19.05	15.88	2900	5310	5000
	BH-98	-	14.29	20.64	12.7	2630	3580	6800
	BH-912	-	14.29	20.64	19.05	4130	6410	6800
15.88	B-105	-	15.88	20.64	7.92	1310	1980	4500
	B-1010	-	15.88	20.64	15.88	3070	5900	4500
	BH-108	MH-1081	15.88	22.22	12.7	2790	3980	6200
	BH-1012	-	15.88	22.22	19.05	4390	7130	6200
17.46	B-116	-	17.46	22.22	9.52	1790	3030	4200
	B-1110	M-11101	17.46	22.22	15.88	3230	6500	4200
	BH-1110	MH-11101	17.46	23.81	15.88	3820	6110	5700
19.05	B-126	-	19.05	25.4	9.52	2100	2900	5500
19.05	B-1210	M-12101	19.05	25.4	15.88	4010	6670	5500
20.64	B-136	-	20.64	26.99	9.52	2190	3140	5200
	B-1314	-	20.64	26.99	22.22	5940	11300	5200
	BH-1310	-	20.64	28.58	15.88	4320	6510	6200
22.22	B-146	-	22.22	28.58	9.52	2280	3380	4800
	B-1412	M-14121	22.22	28.58	19.05	5300	9990	4800
	BH-1410	-	22.22	30.16	15.88	4470	7030	5880
	BH-1412	-	22.22	30.16	19.05	5530	9230	5880
23.81	B-158	-	23.81	30.16	12.7	3500	5990	4500
23.81	B-1516	M-15161	23.81	30.16	25.4	7300	15400	4500
25.4	B-166	-	25.4	31.75	9.52	2450	3870	4300
	B-1610	-	25.4	31.75	15.88	4690	8910	4300
	BH-168	MH-1681	25.4	33.34	12.7	3600	5500	5200
	BH-1612	MH-16121	25.4	33.34	19.05	5970	10500	5200
	BH-1620	-	25.4	33.34	31.75	10100	20600	5200
28.58	B-186	-	28.58	34.92	9.52	2610	4350	3800
	BH-1812	-	28.58	38.1	19.05	6920	11500	5500
	BH-1816	-	28.58	38.1	25.4	9420	17100	5500
