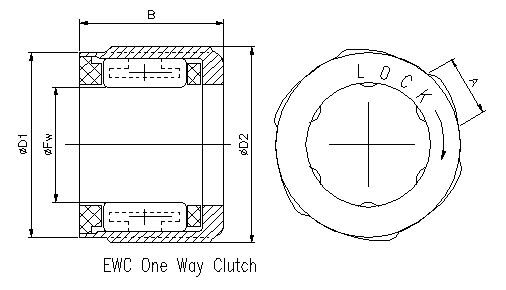

EWC...
Shaft Dia | boundary dimensions | Torque Ma | |||||
| d | Fw | D1 | D2 | B | A | ||
| mm | mm | Nm | Kg.cm | ||||
| 4 | 4 | 8 | 8.4 | 6 | 2.6 | 0.08 | 0.82 |
| 4 | 8 | 8.4 | 6 | 2.6 | 0.15 | 1.53 | |
| 6 | 6 | 10 | 10.4 | 8 | 2.8 | 0.25 | 2.55 |
| 6 | 10 | 10.4 | 8 | 2.8 | 0.44 | 4.49 | |
| 6 | 10 | 10.4 | 8 | 2.8 | 0.44 | 4.49 | |
| 6 | 10 | 10.4 | 12 | 2.8 | 0.88 | 8.98 | |
| 8 | 8 | 12 | 12.4 | 9 | 2.6 | 0.49 | 5 |
| 8 | 12 | 12.4 | 9 | 2.6 | 0.88 | 8.98 | |
| 8 | 14.2 | 15 | 12 | 3.6 | 1.18 | 12.04 | |
| 8 | 14.2 | 15 | 12 | 3.6 | 1.96 | 20 | |
| 8 | 14.2 | 15 | 12 | 3.6 | 1.96 | 20 | |
| 8 | 14.2 | 15 | 14.5 | 3.6 | 2.65 | 27.04 | |
| 10 | 10 | 16 | 17 | 10 | 5 | 1.18 | 12.04 |
| 10 | 16 | 17 | 10 | 5 | 1.96 | 20 | |
| 10 | 16 | 17 | 12 | 5 | 1.37 | 13.98 | |
| 10 | 16 | 17 | 12 | 5 | 2.35 | 23.98 | |
| 10 | 16 | 17 | 12 | 5 | 2.35 | 23.98 | |
| 12 | 12 | 18 | 19 | 16 | 5.1 | 6.28 | 64.08 |
