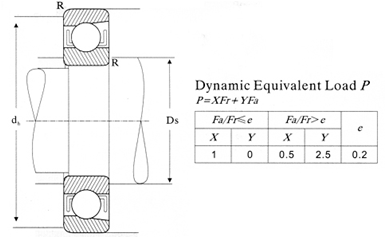

Magneto Bearing
| Bearing No. | Boundary Dimensions (mm) | Basic Load Ratings (Kgf) | Limiting Speeds (rpm) | Abutment and Fillet | Net Weight (kg) | ||||||||
| Dimension(mm) | |||||||||||||
| E series | EN Series | d | D | B/T | r | r1 | Dynamic | Static | Oil | Ds(min) | dh(max) | R(max) | |
| C | Cor | ||||||||||||
| E4 | EN4 | 4 | 16 | 5 | 0.3 | 0.2 | 168 | 26 | 40000 | 5.6 | 14.4 | 0.15 | 0.005 |
| E5 | EN5 | 5 | 16 | 5 | 0.3 | 0.2 | 168 | 26 | 40000 | 6.6 | 14.4 | 0.15 | 0.005 |
| E6 | EN6 | 6 | 21 | 7 | 0.5 | 0.3 | 254 | 40 | 36000 | 8.5 | 18.5 | 0.3 | 0.011 |
| E7 | EN7 | 7 | 22 | 7 | 0.5 | 0.3 | 254 | 40 | 36000 | 9.5 | 19.5 | 0.3 | 0.013 |
| E8 | EN8 | 8 | 24 | 7 | 0.5 | 0.3 | 350 | 58 | 34000 | 10.5 | 21.5 | 0.3 | 0.016 |
| E9 | EN9 | 9 | 28 | 8 | 0.5 | 0.3 | 465 | 79 | 30000 | 11.5 | 25.5 | 0.3 | 0.024 |
| E10 | EN10 | 10 | 28 | 8 | 0.5 | 0.3 | 465 | 79 | 30000 | 12.5 | 25.5 | 0.3 | 0.023 |
| E11 | EN11 | 11 | 32 | 7 | 0.5 | 0.3 | 450 | 78 | 28000 | 13.5 | 29.5 | 0.3 | 0.029 |
| E12 | EN12 | 12 | 32 | 7 | 0.5 | 0.3 | 450 | 78 | 28000 | 14.5 | 29.5 | 0.3 | 0.028 |
| E13 | EN13 | 13 | 30 | 7 | 0.5 | 0.3 | 450 | 78 | 28000 | 15.5 | 27.5 | 0.3 | 0.022 |
| - | EN14 | 14 | 35 | 8 | 0.5 | 0.3 | 590 | 106 | 24000 | 16.5 | 32.5 | 0.3 | 0.035 |
| E15 | EN15 | 15 | 35 | 8 | 0.5 | 0.3 | 590 | 106 | 24000 | 17.5 | 32.5 | 0.3 | 0.034 |
| BO15 | - | 15 | 40 | 10 | 1 | 0.6 | 750 | 139 | 18000 | 20 | 35 | 0.6 | 0.06 |
| - | EN16 | 16 | 38 | 10 | 0.7 | 0.4 | 705 | 127 | 20000 | 19.5 | 34.5 | 0.4 | 0.048 |
| L17 | - | 17 | 40 | 10 | 1 | 0.5 | 750 | 139 | 18000 | 22 | 35 | 0.6 | 0.055 |
| - | EN17 | 17 | 44 | 11 | 1 | 0.6 | 750 | 138 | 18000 | 22 | 39 | 0.6 | 0.078 |
| BO17 | - | 27 | 44 | 11 | 1 | 0.6 | 750 | 138 | 18000 | 22 | 39 | 0.6 | 0.075 |
| - | EN18 | 18 | 40 | 9 | 0.7 | 0.4 | 515 | 97 | 20000 | 21 | 36.5 | 0.4 | 0.05 |
| E19 | EN19 | 19 | 40 | 9 | 0.7 | 0.4 | 515 | 97 | 20000 | 22 | 36.5 | 0.4 | 0.048 |
| E20 | EN20 | 20 | 47 | 12 | 1.5 | 1 | 1120 | 218 | 18000 | 26 | 41 | 1 | 0.08 |
