SCE..., SCH...

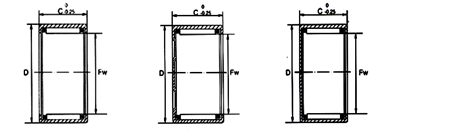

SCE BCE drawing.png

Shaft Dia	Bearing No.		Boundary Dimensions					Basic Load Rating		Limiting speed


mm	Open End	Closed End	Fw	D			C	Cr Dynamic	Cor static


			mm					N		rpm
31.75	SCH2012	BCH2012	31.75		41.275	19.05		27100	39500	8800
	SCH2016	BCH2016	31.75		41.275	25.4		36000	57500	8800
	SCH2020	BCH2020	31.75		41.275	31.75		43600	72900	8800
33.338	SCE2110	--	33.338		41.275	15.875		21100	34000	8400
34.925	SCE228	BCE228	34.925		41.275	12.7		13600	23700	8000
	SCE2212	BCE2212	34.925		41.275	19.05		21500	42500	8000
	SCE2216	--	34.925		41.275	25.4		27500	59000	8000
	SCE2220	BCE2220	34.925		41.275	31.75		34000	77000	8000
	SCH2212	BCH2212	34.925		44.45	19.05		29500	45000	8000
	SCH2216	BCH2216	34.925		44.45	25.4		39000	65000	8000
38.1	SCE248	BCE248	38.1		47.625	12.7		18600	26000	7400
	SCE2410	BCE2410	38.1		47.625	15.875		24400	36500	7400
	SCE2412	BCE2412	38.1		47.625	19.05		30500	48500	7400
	SCE2414	BCE2414	38.1		47.625	22.225		36000	60000	7400
	SCE2416	BCE2416	38.1		47.625	25.4		38500	66000	7400
	SCE2420	BCE2420	38.1		47.625	31.75		47500	86000	7400
41.275	SCE2610	BCE2610	41.275		50.8	15.875		25550	40000	6800
	SCE2620	BCE2620	41.275		50.8	31.75		51000	97000	6800
44.45	SCE2812	BCE2812	44.45		53.975	19.05		31500	55000	6300
	SCE2816	BCE2816	44.45		53.975	25.4		41500	76000	6300
	SCE2820	--	44.45		53.975	31.75		55000	108000	6300
	SCE2824	BCE2824	44.45		53.975	38.1		62000	130000	6300
50.8	SCE328	--	50.8		60.325	12.7		21800	35000	5500
	SCE3210	--	50.8		60.325	15.875		28500	49500	5500
	SCE3216	BCE3216	50.8		60.325	25.4		41500	80000	5500
	SCE3220	--	50.8		60.325	31.75		55000	116000	5500
	SCE3224	--	50.8		60.325	38.1		62000	123000	5500
53.975	SCE348	--	53.975		63.5	12.7		25200	39000	5200
	SCE3410	BCE3410	53.975		63.5	15.875		31000	57000	5200
	SCE3416	--	53.975		63.5	25.4		50000	103000	5200
	SCE3424	--	53.975		63.5	38.1		62000	120000	5200
57.15	SCE3612	BCE3612	57.15		66.675	19.05		37500	72000	4900
	SCE3616	BCE3616	57.15		66.675	25.4		50000	107000	4900
69.85	SCE4412	BE4412	69.85		79.375	19.05		38500	80000	4000
	SCE4416	---	69.85		79.375	25.4		55000	115000	4000
