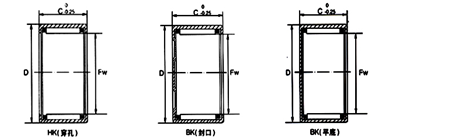

HK..., BK...
Shaft Dia | Bearing No. | Mass Approx. | Boundary Dimensions | Basic Load Rating | Limiting Speed | ||||
Current | Original Code | Fw | D | C | Cr Dynamic | Cor Static | Oil | ||
| mm | g | mm | N | rpm | |||||
| 16 | HK16*21*0.6 | 5.5 | 16 | 21 | 6 | 4200 | 5300 | 12000 | |
| HK16*21*09 | 7.5 | 16 | 21 | 9 | 4400 | 5600 | 12000 | ||
| HK1612 | 37941/16 | 11.7 | 16 | 22 | 12 | 7100 | 9200 | 14000 | |
| BK1612 | 35941/16 | 13.8 | 16 | 22 | 12 | 7100 | 9200 | 14000 | |
| HK1614 | 47941/16 | 14.4 | 16 | 22 | 14 | 8800 | 9900 | 12000 | |
| HK1616 | 57941/16 | 15.8 | 16 | 22 | 16 | 10100 | 14300 | 14000 | |
| BK1616 | 55941/16 | 17.6 | 16 | 22 | 16 | 10100 | 14300 | 14000 | |
| HK1617 | SZ-435 | 18 | 16 | 22 | 17 | 12900 | 17200 | 12000 | |
| HK1622 | 87941/16 | 21.7 | 16 | 22 | 22 | 11100 | 17400 | 14000 | |
| BK1622 | 85941/16 | 23.4 | 16 | 22 | 22 | 11100 | 17400 | 14000 | |
| 17 | HK17*21.5*15 | 17BTM-15 | 10 | 17 | 21.5 | 15 | 6300 | 8600 | 11000 |
| HK1712 | 37941/17 | 12.2 | 17 | 23 | 12 | 6900 | 9300 | 13000 | |
| BK1712 | 35941/17 | 14.5 | 17 | 23 | 12 | 6900 | 9300 | 136000 | |
| HK1714 | 7941/17 | 14 | 17 | 23 | 14 | 6800 | 10200 | 10000 | |
| HK1716 | 57941/17 | 15.9 | 17 | 23 | 16 | 8500 | 10500 | 10000 | |
| HK1718 | 7942/17 | 19 | 17 | 23 | 18 | 9500 | 10600 | 10000 | |
| HK1722 | 7943/17 | 17 | 17 | 23 | 22 | ||||
| HK17*24*15 | 17 | 17 | 24 | 15 | 11200 | 12800 | 10000 | ||
| HK17*24*14 | 37942/17K | 17.7 | 17 | 25 | 14 | 13100 | 14700 | 10000 | |
| HK17*25*15.5 | 20 | 17 | 25 | 16 | 9320 | 10400 | 10000 | ||
| HK17*25*18 | 57942/17K | 23.5 | 17 | 25 | 18 | 9500 | 10600 | 11000 | |
| 18 | HK1812 | 37941/18 | 13.1 | 18 | 24 | 12 | 7100 | 9900 | 12000 |
| BK1812 | 35941/18 | 14.9 | 18 | 24 | 12 | 7100 | 9900 | 12000 | |
| HK1816 | 57941/18 | 17.5 | 18 | 24 | 16 | 106500 | 15300 | 12000 | |
| BK1816 | 55941/18 | 19.9 | 18 | 24 | 16 | 10600 | 15300 | 12000 | |
| HK18*24*20 | 18 | 18 | 24 | 20 | |||||
| 19 | HK19*27*16 | TA1916 | 23 | 19 | 27 | 16 | 8100 | 9500 | 10500 |
| 20 | HK2010 | 27941/20 | 11.8 | 20 | 26 | 10 | 5900 | 7200 | 10000 |
| BK2010 | 25941/20 | 14 | 20 | 26 | 10 | 5900 | 7200 | 10000 | |
| HK2011 | 12 | 20 | 26 | 11 | 7500 | 9200 | 9000 | ||
| HK2012 | 37941/20 | 14.1 | 20 | 26 | 12 | 7600 | 10100 | 10000 | |
| BK2012 | 35941/20 | 16.7 | 20 | 26 | 12 | 7600 | 10100 | 10000 | |
| HK2014 | 47941/20 | 15.7 | 20 | 26 | 14 | 9700 | 18100 | 9000 | |
| HK2016 | 57941/20 | 19.3 | 20 | 26 | 16 | 11700 | 29100 | 10000 | |
| BK2016 | 55941/20 | 22.3 | 20 | 26 | 16 | 11700 | 29100 | 10000 | |
| HK2018 | 67941/20 | 23.3 | 20 | 26 | 18 | 7900 | 12800 | 9000 | |
| HK2020 | 7942/20 | 14.1 | 20 | 26 | 20 | 13700 | 24000 | 10000 | |
| BK2020 | 75941/20 | 27.1 | 20 | 26 | 20 | 13700 | 24000 | 10000 | |
| HK2025 | 7943/20 | 28 | 20 | 26 | 25 | 9100 | 14800 | 9900 | |
| HK2030 | 34.7 | 20 | 26 | 30 | 21800 | 40000 | 10100 | ||
| BK2030 | 37.4 | 20 | 26 | 30 | 21800 | 40000 | 10100 | ||
| HK20*27*18 | 78 | 20 | 27 | 18 | 26000 | 47200 | 9900 | ||
| HK20*27*20 | 82 | 20 | 27 | 20 | 26300 | 47800 | 9900 | ||
| HK20*27*30 | 94 | 20 | 27 | 30 | 28500 | 48800 | 9900 | ||
| HK20*28*16 | 47942/20 | 28.5 | 20 | 28 | 16 | 29600 | 49800 | 9900 | |
| HK20*29*18 | 41 | 20 | 29 | 18 | 30900 | 54600 | 9900 | ||
| 22 | HK22*28*7.5TN | 8.8 | 22 | 28 | 7.5 | 5200 | 7000 | 10010 | |
| HK2210 | 27941/22 | 12.3 | 22 | 28 | 10 | 7200 | 9500 | 10010 | |
| HK2212 | 37941/22 | 15 | 22 | 28 | 12 | 8100 | 10400 | 10010 | |
| BK2212 | 35941/22 | 18.1 | 22 | 28 | 12 | 8100 | 10400 | 10010 | |
| HK2216 | 57941/22 | 20.9 | 22 | 28 | 16 | 11400 | 18100 | 10010 | |
| BK2216 | 55941/22 | 24.3 | 22 | 28 | 16 | 11400 | 18100 | 10010 | |
| HK2220 | 77941/22 | 26.2 | 22 | 28 | 20 | 14500 | 25000 | 10010 | |
| BK2220 | 75941/22 | 29.9 | 22 | 28 | 20 | 14500 | 25000 | 10010 | |
| HK2230 | 32 | 22 | 28 | 30 | 17500 | 30400 | 9000 | ||
| HK22*29*25 | 37 | 22 | 29 | 25 | 18100 | 31500 | 9000 | ||
| HK22*29*30 | 43 | 22 | 29 | 30 | 19400 | 33100 | 9000 | ||
| HK22*30*14 | 37942/22 | 21.9 | 22 | 30 | 14 | 19800 | 34000 | 9000 | |
| 24 | HK24*30*7.5TN | 10.6 | 24 | 30 | 7.5 | 5800 | 7200 | ||
| 25 | HK2512 | 27941/25 | 20 | 25 | 32 | 12 | 10000 | 14200 | 9000 |
| BK2512 | 25941/25 | 23.2 | 25 | 32 | 12 | 10000 | 14200 | 9000 | |
| HK2514 | 37941/25 | 21.9 | 25 | 32 | 14 | 13600 | 18700 | 9000 | |
| HK2516 | 7941/25 | 27.3 | 25 | 32 | 16 | 13600 | 20000 | 9000 | |
| BK2516 | 7941/25 | 31 | 25 | 32 | 16 | 13600 | 50000 | 9000 | |
| HK2518 | 57941/25 | 28.2 | 25 | 32 | 18 | 17500 | 25800 | 9000 | |
| HK2520 | 67941/25 | 34.1 | 25 | 32 | 20 | 17900 | 30000 | 9000 | |
| BK2520 | 65941/25 | 38.7 | 25 | 32 | 20 | 17900 | 30000 | 9000 | |
| HK2525 | 7942/25 | 40 | 25 | 32 | 25 | 22200 | 36700 | 9000 | |
| HK2526 | 44.8 | 25 | 32 | 26 | 22500 | 42000 | 9000 | ||
| BK2526 | 49 | 25 | 32 | 26 | 22500 | 42000 | 9000 | ||
| HK2538 | 87941/25 | 64.7 | 25 | 32 | 38 | 30000 | 58000 | 9000 | |
| BK2538 | 85941/25 | 69 | 25 | 32 | 38 | 30000 | 58000 | 9000 | |
| HK25*33*10 | 17 | 25 | 33 | 10 | 34800 | 69600 | 9000 | ||
| HK25*33*15 | 27.4 | 25 | 33 | 15 | 35700 | 70000 | 9000 | ||
| HK25*35*20 | 57942/25 | 44.9 | 25 | 35 | 20 | 36100 | 78650 | 8700 | |
