HK..., BK...

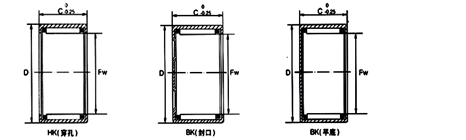

HK BK drawing.png

Shaft Dia	Bearing No.		Mass Approx.	Boundary Dimensions			Basic Load Rating		Limiting Speed


	Current	Original Code		Fw	D	C	Cr Dynamic	Cor Static	Oil
	Current	Original Code		Fw	D	C	Cr Dynamic	Cor Static	Oil
mm			g	mm			N		rpm
28	HK2816	47941/28	30.1	28	35	16	15400	22500	8700
	BK2816	45941/28	34.1	28	35	16	15400	22500	8700
	HK2818	57941/28	31.7	28	35	18	18500	29300	8700
	HK2820	67941/28	37.6	28	35	20	18900	32000	8700
	BK2820	65941/28	43	28	35	20	18900	32000	8700
30	HK3012	27941/30	24	30	37	12	10100	16200	8100
	BK3012	25941/30	27.9	30	37	12	10100	16200	8100
	HK3016	47941/30	32	30	37	16	15200	27000	8100
	BK3016	45941/30	37.1	30	37	16	15200	27000	8100
	HK3018	57941/30	33.6	30	37	18	19200	31500	8100
	HK3020	67941/30	40.1	30	37	20	19700	33500	8100
	BK3020	65941/30	46.5	30	37	20	19700	33500	8100
	HK3026		52.9	30	37	26	24000	50000	8100
	BK3026		59.4	30	37	26	24000	50000	8100
	HK3038		76.1	30	37	38	32500	74000	8100
	BK3038		82.5	30	37	38	32500	74000	8100
	HK303812	27941/30K	28	30	38	12	38100	80000	8100
	HK303816	7941/30	32.7	30	38	16	39000	82000	8100
	HK303824	7942/30	49	30	38	24	39910	88800	8100
	HK303832	7943/30	69	30	38	32	38890	88700	8100
32	HK323811		17	32	38	11	19700	43200	7800
	HK3224	77941/32	50.7	32	38	24	15500	52000	7300
	HK3232	97941/32	66.4	32	39	32	22600	54300	7100
	HK321916			32	19	16
	HK324032	7943/32	72.7	32	39	32	27990	59890	7100
	HK324116			32	41	16
35	HK3512	27941/35	27.7	35	40	12	12100	19300	7100
	BK3512	25941/35	32.9	35	42	12	12100	19300	7100
	HK3516	47941/35	36.9	35	42	16	15700	27500	7100
	BK3516		43.8	35	42	16	45700	27500	7100
	HK3520		46.1	35	42	20	20800	41000	7100
	BK3520	65941/35	54.8	35	42	20	20800	41000	7100
	HK354316	7941/35	37	35	42	16	24200	47100	7100
	HK354325	7942/35	60.5	35	43	25	24440	48200	6200
	HK354332	7943/35	80	35	43	32	24870	48880	6200
	HK354512		31	35	45	12	24870	48880	6200
36	HK364212		23	36	42	12	15000	21000	6200
38	HK384830		102	38	48	30	16100	24100	6000
40	HK4012	27941/40	31.1	40	47	12	14000	24300	6300
	BK4012	25941/40	38.2	40	47	12	14000	24300	6300
	HK4016	47941/40	41.4	40	47	16	20000	38500	6300
	BK4016	45941/40	51	40	47	16	20000	38500	6300
	HK4020	67941/40	51.8	40	47	20	25500	52000	6300
	BK4020	65941/40	62	40	47	20	25500	52000	6300
	HK405032	7942/40	114.3	40	50	32	23000	42000	6000
	HK405038	7943/40	130.8	40	50	38	24100	43000	6000
45	HK4512	27941/45	34.8	45	52	12	12900	22500	5800
	BK4512	25941/45	45	45	52	12	12900	22500	5800
	HK4516	47941/45	46.2	45	52	16	19300	3800	5800
	BK4516	45941/45	56	45	52	16	19300	38000	5800
	HK4520	67941/45	56	45	52	20	22000	51000	5800
	BK4520	65941/45	72	45	52	20	22000	51000	5800
	HK455538	7943/45	135	45	52	38	27600	61000	5300
50	HK505716		51.2	50	57	16	15200	32500	5300
	HK5012	27941/50	44.2	50	58	12	23600	57200	5300
	HK5020	57941/50	72	50	58	20	28000	60000	5300
	BK5020	55941/50	87.3	50	58	20	28000	60000	5300
	HK5025	7943/50	90.1	50	58	25	34500	80000	5300
	BK5025	5943/50	109	50	58	25	34500	80000	5300
	HK506038		140	50	60	38	27770	63100	4600
55	HK5520	57941/255	78	55	63	20	29500	59900	4600
	BK5520	55941/55	93.8	55	63	20	29500	59900	4600
	HK5525	77941/55	109	55	63	25	33200	69980	4600
	HK5528	87941/55	111	55	63	28	39090	98000	4600
	BK5528	85941/55	132	55	63	28	39090	98000	4600
60	HK6012		19.2	60	68	12	12400	29000	4100
	BK6012		77	60	68	12	12400	29000	4100
	HK6020	57941/60	86	60	68	20	30500	72000	4100
	HK6020	55941/60	105	60	68	20	30500	72000	4100
	HK6032	87941/60	136	60	68	32	50000	131000	4100
	BK6032	85941/60	164	60	68	32	50000	131000	4100
