Products Bearings NAO...

NAO...

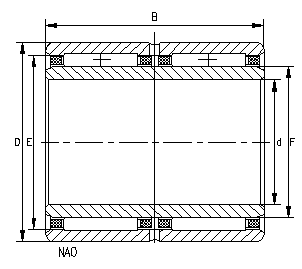

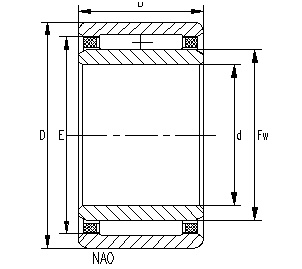

NAO Single drawing.png NAO double drawing.png

Shaft Dia	Bearing No.	Mass Approx.	Boundardy Dimensions					Basic Load Rating		Limiting Speed


			d	D	B	F	E	Cr Dynamic	Cor Static	Oil


mm		g	mm					N		rpm
6	NAO 6×17×10 TN	13	6	17	10	10	13	3950	5000	17080
9	NAO 9×22×12 TN	22	9	22	12	12	18	8800	7900	12090
12	NAO 12×24×13	29	12	24	13	16	20	8000	16000	15020
	NAO 12×24×20	43	12	24	20	16	20	10300	16800	20000
	NAO 12×28×12	38.6	12	28	12	16	22	9850	10500	19000
15	NAO 15×28×13	27.8	15	28	13	20	24	7800	10300	20600
15	NAO 15×32×12	48.1	15	32	12	20	26	10400	14020	20000
17	NAO 17×30×13	39	17	30	13	22	26	9860	15000	20000
17	NAO 17×35×16	70	17	35	16	22	29	16800	20050	10090
20	NAO 20×35×17	72	20	35	17	25	29	12600	20200	16000
20	NAO 20×37×16	81	20	37	16	25	32	10000	18000	12700
25	NAO 25×40×17	78.9	25	40	17	30	35	10600	24000	10500
	NAO 25×42×16	83	25	42	16	30	37	13100	23500	10500
	*NAO 25×42×32	189	25	42	32	30	37	26500	47000	10500
30	NAO 30×45×13	73	30	45	13	35	40	11200	25000	11207
	NAO 30×45×17	100	30	45	17	35	40	12800	28500	11207
	*NAO 30×45×26	150	30	45	26	35	40	17500	32900	11207
	NAO 30×47×16	99.8	30	47	16	35	42	14400	17500	11207
	NAO 30×47×18	109	30	47	18	35	42	20000	33000	11207
	NAO 35×52×18	172	30	52	18	37	44	18000	25500	10900
35	NAO 35×50×17	103	35	50	17	40	45	20800	40506	10900
	NAO 35×55×20	175	35	55	20	40	47	28500	41000	10000
	NAO 35×57×20.5	206	35	57	20.5	42	50	26000	49000	10000
40	NAO 40×55×17	118	40	55	17	45	50	12500	36000	9000
40	NAO 40×65×20	269	40	65	20	50	58	35000	61200	8000
50	NAO 50×68×20	219	50	68	20	55	60	24500	62000	7500
50	NAO 50×78×20	400	50	78	20	60	68	33500	65000	6500
70	NAO 70×100×30	829	70	100	30	80	88	52600	129000	4000
75	NAO 75×105×25	676	75	105	25	85	93	42000	106000	3900
80	*NAO 80×110×30	892	80	110	30	90	98	49020	112000	4200
90	NAO 90×120×30	1004	90	120	30	100	108	51000	128000	3900
