Products Bearings KNL...Series

KNL...Series

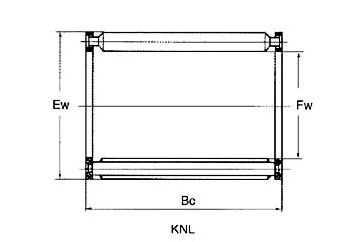

KNL drawing.png

Shaft Dia	Bearing No.					Mass Approx.	Boundary Dimensions


	Current			Original Code			Fw	Ew	Bc
mm						g	mm
19.051	KNL19.051X28.588X36.75			64903		70	19.051	28.588	36.75
19.051	KNL19.051X28.588X43.25			64904		80	19.051	28.588	43.25
20	KNL20X30.2X18			64704		40	20	30.2	18
20.612	KNL20.612X33.325X35			864904		96	20.612	33.325	35
20.638	KNL20.638X33.338X36.75			64705		92	20.638	33.338	36.75
25	KNL25X38X24.7			64805		82	25	38	24.7
25.4	KNL25.4X41.2X60.4			64905		265	25.4	41.2	60.4
27.71	KNL27.7X42.825X44.1			64906		183	27.71	42.825	44.1
28.575	KNL28.575X41.275X34.925			64806		122	28.575	41.275	34.925
28.578	KNL28.578X41.275X40			94626		155	28.578	41.275	40
29.975	KNL29.975X42X44.1			64706		160	29.975	42	44.1
29.975	KNL29.975X42X31			9148/30		81	29.975	42	31
31.75	KNL31.75X44.45X31.75			864807		115.8	31.75	44.45	31.75
31.9	KNL31.9X41.46X32			31.9X41.46X32		95	31.9	41.46	32
32	KNL32X50X45			30643/32		272	32	50	45
32	KNL32X52X49			64907		329	32	52	49
37.96	KNL37.96X53.9X36			37.96X53.9X36		208.3	37.96	53.9	36
40	KNL40X60X30			10643/40		248	40	60	30
52.412	KNL52.412X71.425X42.3			864911		441	52.412	71.425	42.3
65	KNL65X89X58.9			864913		943	65	89	58.9
74	KNL74X106X57.9			864915		1563	74	106	57.9
