K... Series 2

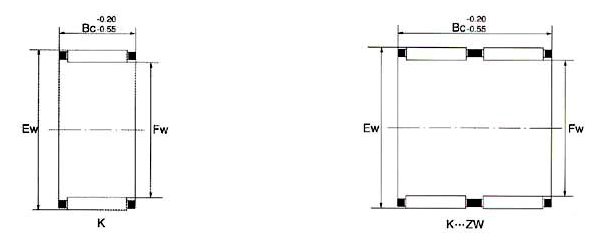

K drawing.png

Shaft Dia	Bearing No.		Mass Approx.	Boundary Dimensions			Basic Load Rating		Limiting Speed


	Current	Original Code		Fw	Ew	Bc	Cr Dynamic	Cor Static	Oil
	Current	Original Code		Fw	Ew	Bc	Cr Dynamic	Cor Static	Oil
mm			g	mm			N		rpm
16	K16X20X10	29241/16	5.7	16	20	10	7600	9700	22000
	K16X20X13	39241/16	7.1	16	20	13	8700	11300	22000
	K16X20X17	59241/16	9.2	16	20	17	11200	16300	22000
	K16X21X10	19242/16	3.7	16	21	10	9000	12000	22000
	K16X22X12	19243/16	10.4	16	22	12	11000	12000	21000
	K16X22X13		11.9	16	22	13	12000	13400	21000
	K16X22X16		13.7	16	22	16	14300	17000	21000
	K16X22X20	49243/16	16.7	16	22	20	18000	22300	21000
	K16X23X14	19244/16	20	16	23	14	19000	21000	19000
	K16X24X20	19245/16	24.9	16	24	20	21100	23000	20000
17	K17X21X10	29241/17	5.6	17	21	10	7900	10100	21000
	K17X21X13	39241/17	7.5	17	21	13	10000	14100	21000
	K17X21X17	59241/17	9.5	17	21	17	12000	17400	21000
	K17X23X14	29243/17	11.5	17	23	14	11000	15000	21000
18	K18X22X10	29241/18	6.1	18	22	10	8200	9900	20000
	K18X22X13	39241/18	7.7	18	22	13	9000	12100	20000
	K18X22X17	59241/18	10.8	18	22	17	11900	17600	20000
	K18X24X12	19243/18	11.6	18	24	12	11200	12900	20000
	K18X24X13		12.6	18	24	13	12900	14900	20000
	K18X24X13.5		13	18	24	13.5	12900	14900	20000
	K18X24X20	49243/18	19	18	24	20	20000	26500	20000
	K18X25X14		14.9	18	25	14	16500	18800	20000
	K18X25X22		24.9	18	25	22	22900	28400	20000
	K18X26X14		19	18	26	14	18000	20000	18000
	K18X28X16	19244/18	24	18	28	16	19000	18400	19000
19	K19X23X13		8.2	19	23	13	9300	13000	20000
19	K19X23X17		11.1	19	23	17	12000	18600	20000
20	K20X24X10	29241/20	6.5	20	24	10	8700	12100	19000
	K20X24X12		8	20	24	12	9600	13800	19000
	K20X24X13	39241/20	8.9	20	24	13	9600	13800	19000
	K20X24X17	29241/20	11.2	20	24	17	12400	20000	19000
	K20X26X12	19243/20	13.2	20	26	12	13100	15700	19000
	K20X26X16	29243/20	17.5	20	26	16	18000	25000	18500
	K20X26X17	39243/20	18.2	20	26	17	18700	25500	19000
	K20X26X20	49243/20	22	20	26	20	20600	28500	19000
	K20X28X20	19245/20	26.8	20	28	20	23400	28000	18000
	K20X28X25	29245/20	3.2	20	28	25	30000	28500	18000
	K20X30X30	39245/20	56	20	30	30	35000	41000	18000
21	K21X25X13		9	21	25	13	9600	14500	19000
21	K21X25X17		12	21	25	17	12800	21000	19000
22	K22X26X10	29241/22	7.1	22	26	10	8700	12900	18000
	K22X26X13	39241/22	9.4	22	26	13	10000	15400	18000
	K22X26X17	59241/22	12.1	22	26	17	13100	22100	18000
	K22X27X13	29242/22	10.8	22	27	13	14000	23000	18000
	K22X28X17	39243/22	19.7	22	28	17	19000	26500	18000
	K22X28X23	59243/22	26	22	28	23	20000	27000	19000
	K22X29X16	19244/22	22.2	22	29	16	19500	25000	17000
	K22X30X15 TN		14.4	22	30	15	19600	22900	17000
	K22X30X20	19245/22	28	22	30	20	21000	23500	18900
	K22X32X24		43.4	22	32	24	33500	39500	16000
