K... Series 3

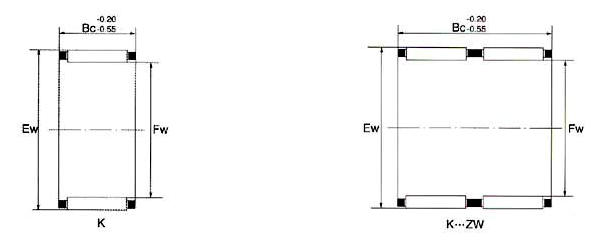

K drawing.png

Shaft Dia	Bearing No.		Mass Approx.	Boundary Dimensions			Basic Load Rating		Limiting Speed


	Current	Original Code		Fw	Ew	Bc	Cr Dynamic	Cor Static	Oil
	Current	Original Code		Fw	Ew	Bc	Cr Dynamic	Cor Static	Oil
mm			g	mm			N		rpm
23	K23X35X16 TN		30	23	35	16	24000	23400	15000
24	K24X28X10		8.1	24	28	10	9400	14300	17000
	K24X28X13		10.1	24	28	13	10500	17000	17000
	K24X28X17	9243/24	13.2	24	28	17	14000	24500	17000
	K24X29X13		13.5	24	29	13	13100	19100	16000
	K24X30X17		21.5	24	30	17	19000	27000	16000
	K24X30X31		39.1	24	30	31	27000	43000	16000
25	K25X29X10	29241/25	8.3	25	29	10	9700	14900	16000
	K25X29X13	39241/25	10.4	25	29	13	10800	17900	16000
	K25X29X17	59241/25	13.7	25	29	17	14500	25500	16000
	K25X30X13	29242/25	12.9	25	30	13	14100	21300	16000
	K25X30X20	59242/25	20.5	25	30	20	21100	28000	16000
	K25X30X25		21	25	30	25	21700	40400	15000
	K25X30X26		21.6	25	30	26	20100	26500	15000
	K25X31X17	39243/25	21.8	25	31	17	19000	28000	16000
	K25X31X21		26.2	25	31	21	24100	37500	16000
	K25X32X16	19244/25	24.5	25	32	16	20500	27500	15000
	K25X33X20	19245/25	32	25	33	20	28000	37500	15000
	K25X33X24	29245/25	38.7	25	33	24	33900	46500	15000
	K25X34X18		32	25	34	18	48000	67000	15000
	K25X35X30	39245/25	65.5	25	35	30	46500	61500	14000
	K25X30X26 ZW		27	25	30	26	21000	35000	14000
26	K26X30X10		9	26	30	10	9500	15500	16000
	K26X30X13		11.4	26	30	13	11100	18700	16000
	K26X30X17		15	26	30	17	14700	27000	16000
	K26X30X22		9.9	26	30	22	12400	18400	15000
	K26X31X13		12.3	26	31	13	15200	28000	16000
27	K27X32X17		29	27	32	17	16000	34000	17000
28	K28X32X16.5		16	28	32	16.5	15000	32400	14000
	K28X32X17	9242/28	18.2	28	32	17	15000	32400	14000
	K28X33X13	29241/28	15.2	28	33	13	14800	23600	14000
	K28X33X17	49241/28	19.5	28	33	17	19100	33000	14000
	K28X33X27 TN	79241/28	19	28	33	27	22800	40500	14000
	K28X34X17	39242/28	24.2	28	34	17	21300	35000	14000
	K28X35X16	19243/28	26	28	35	16	21000	29000	14000
	K28X35X18		31	28	35	18	23500	33500	14000
	K28X35X20	29243/28	35	28	35	20	24000	34000	14000
	K28X35X27		47	28	35	27	34500	54500	14000
	K28X36X16		40	28	36	16	34000	47000	11000
	K28X40X18		50	28	40	18	33000	36500	12000
	K28X40X25		71	28	40	25	45000	54500	12000
30	K30X34X13		14.6	30	34	13	11800	21200	13000
	K30X35X13	29241/30	16.3	30	35	13	15100	25000	13000
	K30X35X17	49241/30	21.3	30	35	17	19100	33500	13000
	K30X35X27	79241/30	33.3	30	35	27	30000	58500	13000
	K30X37X16	19243/30	26.4	30	37	16	22500	33000	13000
	K30X38X25	29244/30	43	30	38	25	16000	39000	13000
	K30X40X18		44	30	40	18	31500	39500	12000
	K30X40X30	49243/30	78	30	40	30	48500	68500	13000
	K30X35X26		32	30	35	26	23500	43500	12000
