K... Series 6

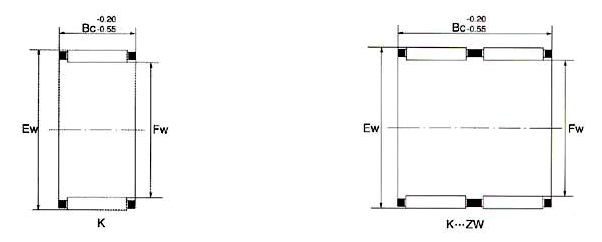

K drawing.png

Shaft Dia	Bearing No.		Mass Approx.	Boundary Dimensions			Basic Load Rating		Limiting Speed


	Current	Original Code		Fw	Ew	Bc	Cr Dynamic	Cor Static	Oil
	Current	Original Code		Fw	Ew	Bc	Cr Dynamic	Cor Static	Oil
mm			g	mm			N		rpm
62	K62X70X40 ZW		147.5	62	70	40	65500	145500	5500
63	K63X70X21		75	63	70	21	45000	100500	5500
64	K64X70X16		53	64	70	16	27500	59500	5500
65	K65X70X20	49241/65	49	65	70	20	30000	76500	5500
	K65X70X30		83	65	70	30	43500	123500	5500
	K65X73X23		100	65	73	23	45500	93500	5000
	K65X73X30	39243/65	126	65	73	30	56500	122500	5000
68	K68X74X20	49241/68	65	68	74	20	35000	83500	5000
	K68X74X30	69241/68	97	68	74	30	46000	117500	5000
	K68X74X35 ZW	79241/68	116	68	74	35	48000	124500	5000
	K68X75X20		120	68	75	20	53500	127500	4500
70	K70X76X20	49241/70	70	70	76	20	35500	85500	4500
	K70X76X30	69241/70	100	70	76	30	51500	138500	4500
	K70X78X25	29243/70	115	70	78	25	51500	111500	4500
	K70X78X30	39243/70	136	70	78	30	59500	134500	4500
	K70X80X30	29244/70	150	70	80	30	72500	147500	4500
	K70X78X46 ZW		230	70	78	46	77500	18800	4500
72	K72X80X20	19243/72	94	72	80	20	41000	84500	4500
73	K73X79X20		69	73	79	20	36500	99500	4500
75	K75X81X20	49241/75	72	75	81	20	37000	93500	4500
	K75X81X30	69241/75	106	75	81	30	51500	142000	4500
	K75X83X23		113	75	83	23	49500	108000	4000
	K75X83X30	39243/75	147	75	83	30	61500	142000	4000
	K75X83X35 ZW	49243/75	165	75	83	35	62500	146500	4000
	K75X83X40 ZW	59243/75	190	75	83	40	72500	176500	4000
80	K80X86X20	49241/80	76	80	86	20	38000	97500	4000
	K80X86X30	69241/80	114	80	86	30	55500	158500	4000
	K80X88X30	39243/80	141	80	88	30	71500	178500	4000
	K80X88X40 ZW	59243/80	204	80	88	40	75500	191500	4000
	K80X88X46 ZW	69243/80	235	80	88	46	87500	23000	4000
85	K85X92X20	29241/85	96	85	92	20	44000	107500	3500
90	K90X97X20	29241/90	103	90	97	20	44500	112500	3000
	K90X98X27		150	90	98	27	60500	149500	3000
	K90X98X30	39242/90	172	90	98	30	67500	171500	3000
95	K95X102X20	29241/95	110	95	102	20	45500	122500	2900
	K95X102X30	39242/95	177	95	102	30	68500	179500	2900
	K95X103X40 ZW	59242/95	250	95	103	40	82500	227500	2900
100	K100X107X21		120	100	107	21	47500	126500	2700
	K100X108X27		176	100	108	27	56500	142500	2700
	K100X108X30	39242/100	190	100	108	30	70500	187500	2700
105	K105X112X21		123	105	112	21	47000	126500	2500
105	K105X113X30	39242/105	198	105	113	30	71500	196500	2500
110	K110X117X24		146	110	117	24	55500	157500	2300
110	K110X118X30	39244/110	217	110	118	30	77500	218500	2300
