HGH...CA, HGH...HA

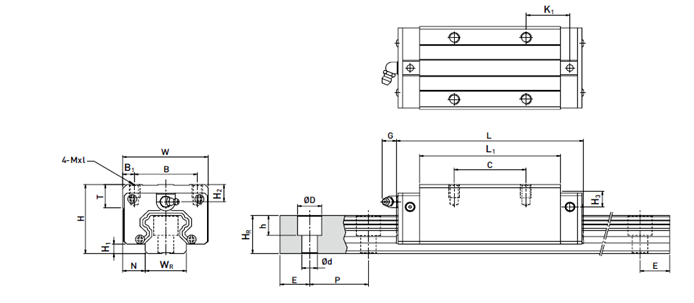

HGH drawing.png

Model No.	Dimensions of Assembly(mm)			Dimensions of Block (mm)									Dimensions of Rail (mm)							Mounting Bolt

	H	H₁	N	W	B	B₁	C	L₁	L	G	Mxl	T	W_R	H_R	D	h	d	P	E	(mm)
HGH 15CA	28	4.3	9.5	34	26	4	26	39.4	61.4	5.3	M4x5	6	15	15	7.5	5.3	4.5	60	20	M4x16
HGH 20CA	30	4.6	12	44	32	6	36	50.5	77.5	12	M5x6	8	20	17.5	9.5	8.5	6	60	20	M5x16
HGH 20HA							50	65.2	92.2
HGH 25CA	40	5.5	12.5	48	35	6.5	35	58	84	12	M6x8	8	23	22	11	9	7	60	20	M6x20
HGH 25HA							50	78.6	104.6
HGH 30CA	45	6	16	60	40	10	40	70	97.4	12	M8x10	8.5	28	26	14	12	9	80	20	M8x25
HGH 30HA							60	93	120.4
HGH 35CA	55	7.5	18	70	50	10	50	80	112.4	12	M8x12	10.2	34	29	14	12	9	80	20	M8x25
HGH 35HA							72	105.8	138.2
HGH 45CA	70	9.5	20.5	86	60	13	60	97	139.4	12.9	M10x17	16	45	38	20	17	14	105	22.5	M12x35
HGH 45HA							80	128.8	171.2
HGH 55CA	80	13	23.5	100	75	12.5	75	117.7	166.7	12.9	M12x18	17.5	53	44	23	20	16	120	30	M14x45
HGH 55HA							95	155.8	204.8
HGH 65CA	90	15	31.5	126	76	25	70	144.2	200.2	12.9	M16x20	25	63	53	26	22	18	150	35	M16x50
HGH 65HA							120	203.6	259.6
