Products Bearings 51100, 51200, 51300

51100, 51200, 51300

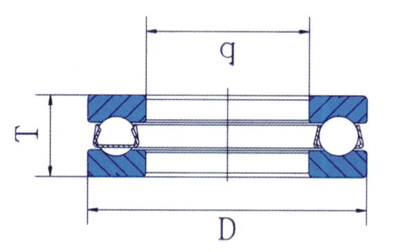

Bearing No.	Boundary Dimension(mm)			Basic load rating (KN)		Limiting Speed (rpm)		Mass (kg)
Bearing No.	d	D	T	Dynamic Cr	Static Cor	Grease	Oil	Mass (kg)
51100	10	24	9	10	14	6500	10000	0.02
51200	10	26	11	12.7	17.1	5700	8800	0.03
51101	12	26	9	10.3	15.4	6500	10000	0.022
51201	12	28	11	13.2	19	5400	8300	0.034
51102	15	28	9	10.5	16.8	6100	9400	0.024
51202	15	32	12	16.6	24.8	4900	7500	0.046
51103	17	30	9	10.8	18.2	5300	7500	0.024
51203	17	35	12	17	27.2	4500	6300	0.048
51104	20	35	10	14.2	24.5	4800	6700	0.036
51204	20	40	14	22.2	37.5	3800	5300	0.075
51105	25	42	11	15.2	30.2	4300	6000	0.055
51205		47	15	27.8	50.5	3400	4800	0.11
51305		52	18	35.5	61.5	3000	3400	0.17
51405		60	24	55.5	89.2	2200	5600	0.31
51106	30	47	11	16	34.2	4000	4500	0.062
51206		52	16	28	54.2	3200	3600	0.13
51306		60	21	42.8	78.5	2400	3000	0.26
51406		70	28	72.5	125	1900	5300	0.51
51107	35	52	12	18.2	41.5	3800	4000	0.077
51207		62	18	39.2	78.2	2800	3200	0.21
51307		68	24	55.2	105	2000	2600	0.37
51407		80	32	86.8	155	1700	4800	0.76
51108	40	60	13	26.8	62.8	3400	3600	0.11
51208		68	19	47	98.2	2400	3000	0.26
51308		78	26	69.2	135	19000	2200	0.53
51408		90	36	112	205	1500	4500	1.06
51109	45	65	14	27	66	3200	3400	0.14
51209		73	20	47.8	105	2200	2600	0.3
51309		85	28	75.8	150	1700	2000	0.66
51409		100	39	140	262	1400	4300	1.41
51110	50	70	14	27.2	69.2	3000	3200	0.15
51210		78	22	48.5	112	2000	2400	0.37
51310		95	31	96.5	202	1600	1900	0.92
51410		110	43	160	302	1300	4000	1.86
51111	55	78	16	33.8	89.2	2800	4000	0.22
51211		90	25	67.5	158	1900	3000	0.58
51311		105	35	115	242	1500	2200	1.28
51411		120	48	182	355	1100	1700	2.51
51112	60	85	17	40.2	108	2600	3800	0.27
51212		95	26	73.5	178	1800	2800	0.66
51312		110	35	118	262	1400	2000	1.37
51412		130	51	200	395	1000	1600	3.08
51113	65	90	18	40.5	112	2400	3600	0.31
51213		100	27	74.8	188	1700	2600	0.72
51313		115	36	115	262	1300	1900	1.48
51413		140	56	215	448	900	1400	3.91
51114	70	95	18	40.8	115	2200	3400	0.33
51214		105	27	73.5	188	1600	2400	0.75
51314		125	40	148	340	1200	1800	1.98
51414		150	60	255	560	850	1300	4.85
51115	75	100	19	48.2	140	2000	3200	0.38
51215		110	27	74.8	198	1500	2200	0.82
51315		135	44	162	380	1100	1700	2.58
51415		160	65	268	615	800	1200	6.08
51116	80	105	19	48.5	145	1900	3000	0.4
51216		115	28	83.8	222	1400	2000	0.9
51316		140	44	160	380	1000	1600	2.69
51416		170	68	292	692	750	1100	7.12
51117	85	110	19	45.9	150	2100	3200	0.44
51217		125	31	102	280	1300	1900	1.21
51317		150	49	208	495	950	1500	3.47
51417		180	72	318	782	700	1000	8.28
51118	90	120	22	59.7	190	1900	2900	0.67
51218		135	35	117	326	1400	2100	1.65
51318		155	50	213	524	1000	1600	3.69
51418		190	77	327	826	710	1100	11
51120	100	135	25	85	268	1600	2500	0.99
51220		150	38	147	410	1200	1900	2.21
51320		170	55	236	596	940	1450	4.86
51420		210	85	368	983	620	950	14.6
51122	110	145	25	87.1	288	1600	2400	1.08
51222		160	38	138	412	1000	1600	2.39
51322		190	63	280	754	810	1250	7.72
51422		230	95	379	1070	550	850	19.8
51124	120	155	25	89	308	1500	2300	1.16
51224		170	39	154	472	1100	1700	2.86
51324		210	70	325	931	710	1100	10.6
51424		250	102	480	1460	520	800	25
51126	130	170	30	104	352	1300	2000	1.87
51226		190	45	203	622	970	1500	4.09
51326		225	75	346	1030	650	1000	13
51426		270	110	498	1540	490	750	31.4
51128	140	180	31	107	377	1200	1900	2.2
51228		200	46	215	669	940	1450	4.46
51328		240	80	367	1130	620	950	15.5
51428		280	112	520	1680	450	700	33.9
51130	150	190	31	109	402	1200	1900	2.15
51230		215	50	244	768	840	1300	5.64
51330		250	80	377	1200	580	900	16.3
51430		300	120	568	1910	420	650	41.6
51132	160	200	31	112	427	1200	1800	2.28
51232		225	51	247	803	810	1250	6.53
51332		270	87	470	1570	550	850	21
51432		320	130	681	2410	390	600	51.2
51134	170	215	34	134	512	1100	1700	3.25
51234		240	55	269	874	750	1150	8.12
51334		280	87	463	1570	520	800	22
51434		340	135	755	2730	360	550	60
51136	180	225	34	135	528	1000	1600	3.39
51236		250	56	294	986	710	1100	8.68
51336		300	95	463	1580	490	750	28.1
51436		360	140	742	2730	320	500	69.5
51138	190	240	37	170	657	970	1500	3.95
51238		270	62	298	1010	650	1000	11.7
51338		320	105	543	1950	440	680	36
51140	200	250	37	172	677	940	1450	4.13
51240		280	62	314	1110	620	950	12.2
51340		340	110	596	2220	420	650	42.9
51144	220	270	37	177	739	880	1350	4.5
51244	220	300	63	342	1310	580	900	13.5
51148	240	300	45	241	1020	750	1150	7.38
51248	240	340	78	442	1800	520	800	23.1
51152	260	320	45	231	990	710	1100	7.93
51252	260	360	79	445	1880	490	750	25
51156	280	350	53	329	1430	640	900	12
51160	300	380	62	363	1610	540	810	17.5
51260	300	420	95	570	2600	400	600	42.5
51164	320	400	63	379	1760	540	810	19
51264	320	440	95	577	2710	400	600	45
51168	340	420	64	387	1860	500	770	20.5
51268	340	460	96	584	2830	380	570	48
51172	360	440	65	394	1960	500	720	21.5
51272	360	500	110	701	3500	340	500	70
51176	380	460	65	397	2200	500	720
51276	380	520	112	728	4150	340	500
51180	400	480	65	403	2280	460	700
