Flanged Metric Type

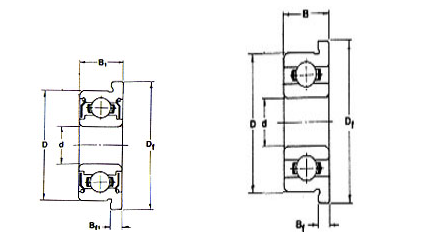

Bearing No.		Boundary Dimensions(mm)							Radius Rs(min) mm	Basic Dynamic Load Rating Cr（kgf)	Basic Static Load Rating Cor（kgf)	Max. Speed (X1000rpm)		Ball Complement
Bearing No.		Boundary Dimensions(mm)										Max. Speed (X1000rpm)		QTY	Size
		d	D	Df	B	B_f	B1	Bf1				Grease	Oil	（pcs)	（mm)
F681	-	1	3	3.8	1	0.3	-	-	0.05	7.5	2	130	150	6	0.5
F691	-	1	4	5	1.6	0.5	-		0.1	14	4	100	120	5	0.8
MF41X	-	1.2	4	4.8	1.8	0.4	-	-	0.1	11	3.5	110	130	7	0.6
F681X	F681XZZ	1.5	4	5	1.2	0.4	2	0.6	0.05	11	3.5	100	120	7	0.6
F691X	F691XZZ		5	6.5	2	0.6	2.6	0.8	0.15	17	5	85	100	6	0.8
F601X	F601XZZ		6	7.5	2.5	0.6	3	0.8	0.15	34	10	75	90	6	1.2
F682	F682ZZ	2	5	6.1	1.5	0.5	2.3	0.6	0.08	17	5	85	100	6	0.8
MF52	MF52ZZ		5	6.2	2	0.6	2.5	0.6	0.1	17	5	85	100	6	0.8
F692	F692ZZ		6	7.5	2.3	0.6	3	0.8	0.15	34	10	75	90	6	1.2
MF62	-		6	7.2	2.5	0.6	-	-	0.15	34	10	75	90	6	1.2
MF72	MF72ZZS		7	8.2	2.5	0.6	3	0.6	0.15	39	13	63	75	7	1.2
F602	F602ZZS		7	8.5	2.8	0.7	3.5	0.9	0.15	39	13	60	71	7	1.2
F682X	F682XZZ	2.5	6	7.1	1.8	0.5	2.6	0.8	0.08	19	6	71	80	8	0.8
F692X	F692XZZ		7	8.5	2.5	0.7	3.5	0.9	0.15	39	13	63	75	7	1.2
MF82X	-		8	9.2	2.5	0.6	-	-	0.2	57	18	60	67	6	1.588
F602X	F602XZZ		8	9.5	2.8	0.7	4	0.9	0.15	56	18	60	71	6	1.588
MF63	MF63ZZ	3	6	7.2	2	0.6	2.5	0.6	0.1	21	7.5	71	80	8	0.8
F683	F683ZZ		7	8.1	2	0.5	3	0.8	0.1	21	7.5	71	80	8	0.8
MF83	-		8	9.2	2.5	0.6	-	-	0.15	40	14	60	67	7	1.2
F693	F693ZZ		8	9.5	3	0.7	4	0.9	0.15	57	18	60	67	6	1.588
MF93	MF93ZZ		9	10.2	2.5	0.6	4	0.8	0.2	58	19	56	67	6	1.588
F603	F603ZZ		9	10.5	3	0.7	5	1	0.15	58	19	56	67	6	1.588
F623	F623ZZ		10	11.5	4	1	4	1	0.15	64	22	50	60	7	1.588
MF74	-	4	7	8.2	2	0.6	-	-	0.1	32	12	60	67	8	1
-	MF74ZZS		7	8.2	-	-	2.5	0.6	0.1	26	11	60	67	11	0.8
MF84	MF84ZZ		8	9.2	2	0.6	3	0.6	0.15	40	14	56	67	7	1.2
F684	F684ZZ		9	10.3	2.5	0.6	4	1	0.1	65	23	53	63	7	1.588
MF104	MF104ZZ		10	11.2	3	0.6	4	0.8	0.2	60	21	48	56	6	1.588
F694	F694ZZ		11	12.5	4	1	4	1	0.15	98	36	48	56	7	2
F604	F604ZZ		12	13.5	4	1	4	1	0.2	98	36	48	56	7	2
F624	F624ZZ		13	15	5	1	5	1	0.2	133	50	40	48	7	2.381
F634	F634ZZ		16	18	5	1	5	1	0.3	137	53	36	43	7	2.381
MF85	-	5	8	9.2	2	0.6	-	-	0.1	31	12	53	63	8	1
-	MF85ZZS		8	9.2	-	-	2.5	0.6	0.1	22	9	53	63	9	0.8
MF95	MF95ZZS		9	10.2	2.5	0.6	3	0.6	0.15	44	17	50	60	8	1.2
MF105	MF105ZZ		10	11.2	3	0.6	4	0.8	0.15	44	17	50	60	8	1.2
-	MF115ZZ		11	12.6	-	-	4	0.8	0.15	73	30	45	53	8	1.588
F685	F685ZZ		11	12.5	3	0.8	5	1	0.15	73	30	45	53	8	1.588
F695	F695ZZ		13	15	4	1	4	1	0.2	110	44	43	50	8	2
F605	F605ZZ		14	16	5	1	5	1	0.2	136	52	40	50	7	2.381
F625	F625ZZ		16	18	5	1	5	1	0.3	176	69	36	43	7	2.778
F635	F635ZZ		19	22	6	1.5	6	1.5	0.3	238	91	32	40	6	3.5
MF106	MF106ZZS	6	10	11.2	2.5	0.6	3	0.6	0.15	51	22	45	53	10	1.2
MF126	MF126ZZ		12	13.2	3	0.6	4	0.8	0.2	73	30	43	50	8	1.588
F686	F686ZZ		13	15	3.5	1	5	1.1	0.15	110	45	40	50	8	2
F696	F696ZZ		15	17	5	1.2	5	1.2	0.2	137	53	40	45	7	2.381
F606	F606ZZ		17	19	6	1.2	6	1.2	0.3	231	86	38	45	6	3.5
F626	F626ZZ		19	22	6	1.5	6	1.5	0.3	238	91	32	40	6	3.5
MF117	MF117ZZ	7	11	12.2	2.5	0.6	3	0.6	0.15	46	21	43	50	9	1.2
MF137	MF137ZZ		13	14.2	3	0.6	4	0.8	0.2	55	28	40	48	12	1.2
F687	F687ZZ		14	16	3.5	1	5	1.1	0.15	120	52	40	50	9	2
F697	F697ZZ		17	19	5	1.2	5	1.2	0.3	164	73	36	43	9	2.381
F607	F607ZZ		19	22	6	1.5	6	1.5	0.3	238	91	36	43	6	3.5
F627	F627ZZ		22	25	7	1.5	7	1.5	0.3	335	141	30	36	7	3.969
MF128	MF128ZZS	8	12	13.2	2.5	0.6	3.5	0.8	0.15	55	28	40	48	12	1.2
MF148	MF148ZZ		14	15.6	3.5	0.8	4	0.8	0.2	83	39	38	45	10	1.588
F688	F688ZZ		16	18	4	1	5	1.1	0.2	128	60	36	43	10	2
F698	F698ZZ		19	22	6	1.5	6	1.5	0.3	228	94	36	43	7	3.175
F608	F608ZZ		22	25	7	1.5	7	1.5	0.3	336	141	34	40	7	3.969
F689	F689ZZ	9	17	19	4	1	5	1.1	0.2	135	68	36	43	11	2
F699	F699ZZ		20	23	6	1.5	6	1.5	0.3	252	110	34	40	8	3.175
F609	F609ZZ		24	27	7	1.5	7	1.5	0.3	340	145	32	38	7	3.969
