Products Bearings 61000 Series

61000 Series

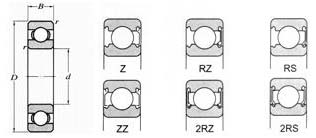

Bearing No.	Boundary Dimensions(mm)				Basic Load Rating		Net Weight
	Boundary Dimensions(mm)				Basic Load Rating		Net Weight
	d	D	B	Chamfer	Cr(KN)	Cor(KN)	Kgs
61802	15	24	5	0.3	1.92	1.18	0.008
61803	17	26	5	0.3	2.18	1.28	0.008
61804	20	32	7	0.3	3.45	2.25	0.02
61805	25	37	7	0.3	3.70	2.65	0.022
61806	30	42	7	0.3	4.00	3.15	0.026
61807	35	47	7	0.3	4.12	3.45	0.03
61808	40	52	7	0.3	4.40	3.50	0.034
61809	45	58	7	0.3	4.65	4.32	0.04
61810	50	65	7	0.3	5.10	4.68	0.057
61811	55	72	9	0.3	6.72	6.50	0.083
61812	60	78	10	0.3	9.15	8.75	0.11
61813	65	85	10	0.6	10.00	9.32	0.114
61814	70	90	10	0.6	10.50	10.80	0.13
61815	75	95	10	0.6	10.60	11.00	0.15
61816	80	100	10	0.6	11.00	11.80	0.16
61817	85	110	13	0.8	18.50	19.50	0.27
61818	90	115	13	0.8	19.00	20.10	0.28
61819	95	120	13	1	19.30	20.40	0.288
61821M	105	130	13	1	19.50	21.00	0.362
61822	110	140	16	1	24.80	28.00	0.505
61824	120	150	16	1	24.70	28.00	0.568
61826M	130	165	18	1.1	35.80	38.00	0.898
61828M	140	175	18	1.1	37.00	40.00	0.93
61830M	150	190	20	1.1	46.40	53.00	1.36
61832M	160	200	20	1.1	49.50	59.00	1.32
61834M	170	215	22	1.1	65.00	61.00	1.87
61836M	180	225	22	1.1	61.80	65.00	1.97
61838M	190	240	24	1.5	72.50	83.50	2.38
61840M	200	250	24	1.5	72.30	84.00	2.68
61844M	220	270	24	1.5	74.10	89.00	3.21
61848M	240	300	28	2	103.00	116.00	4.78
61852M	260	320	28	2	122.00	128.00	4.85
61856M	280	350	33	2	131.00	188.00	7.17
61860M	300	380	38	2.1	163.00	206.00	10.4
61864M	320	400	38	2.1	164.00	220.00	11.4
61868M	340	420	38	2.1	169.00	227.00	11.6
61872M	360	440	38	2.1	173.00	242.00	12.2
61876M	380	480	46	2.1	278.00	345.00	19
61880M	400	500	46	2.1	242.00	403.00	21
61884M	420	520	46	2.1	245.00	420.00	21.5
61888M	440	540	46	2.1	245.00	445.00	22
61892M	460	580	56	3	303.00	435.00	34.3
61896M	480	600	56	3	315.00	610.00	36
61903	17	30	7	0.3	4.30	2.32	0.02
61904	20	37	9	0.3	6.55	3.60	0.04
61905	25	42	9	0.3	7.36	4.55	0.05
61906	30	47	9	0.3	7.55	5.08	0.06
61907	35	55	10	0.6	9.55	6.85	0.086
61908	40	62	12	0.6	12.00	8.98	0.11
61909	45	68	12	0.6	12.30	9.72	0.14
61910	50	72	12	0.6	12.80	11.20	0.14
61911	55	80	13	1	13.00	13.50	0.19
61912	60	85	13	1	14.00	14.20	0.22
61913	65	90	13	1	14.50	17.00	0.23
61914	70	100	16	1	16.50	17.20	0.35
61915	75	105	16	1	18.00	17.50	0.42
61916	80	110	16	1	27.57	25.20	0.44
61917	85	120	18	1.1	30.3	27	0.557
61918	90	125	18	1.1	33	31.5	0.572
61918M	90	125	18	1.1	33	31.5	0.68
61918/YA6	90	125	18	0.6	33	31.5	0.572
61919	95	130	18	1.1	33.8	33	0.61
61920M	100	140	20	1.1	34.5	35	0.96
61920	100	140	20	1.1	34.5	35	0.85
61922	110	150	20	1.1	43.5	44.5	0.888
61922M	110	150	20	1.1	43.5	44.5	1.01
61924	120	165	22	1.1	53	54	1.21
61924M	120	165	22	1.1	53	54	1.54
61926M	130	180	24	1.5	65	67	1.92
61926	130	180	24	1.5	65	67	1.56
61928	140	190	24	2	140	111	1.93
61930M	150	210	28	2	84.5	90	3.04
61932M	160	220	28	2	90	95	3.15
61934M	170	230	28	2	115	100	5.19
61936M	180	250	33	2	127	137	5.27
61938M	190	260	33	2	127	138	5.85
61940M	200	280	38	2.1	125	144	7.63
61944M	220	300	38	2.1	175	162	7.96
61948M	240	320	38	2.1	155	186	8.1
61952M	260	360	46	2.1	212	269	14.4
61952X1M	260	369.5	46	2.1	212	269	16.3
61956M	280	380	46	2.1	215	282	15.6
61956X1M	280	389.5	46	4	215	282	17.5
61960M	300	420	56	3	267	370	20.7
61964M	320	440	56	3	278	395	24.9
61968M	340	460	56	3	282	420	27
61972M	360	480	56	3	282	425	30.2
