6900 Series
Bearing No. | Boundary Dimensions | Basic Load Rating | Balls | Limiting Speed | Net Weight | ||||||

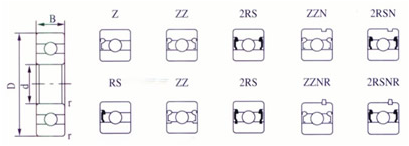

d | D | B | Chamfer | C(N) | CO(N) | Qty | Size | Grease | Oil | Kgs | |
694 | 4 | 11 | 4 | 0.15 | 0.715 | 0.276 | 7 | 2 | 45000 | 5200 | 0.0018 |
695 | 5 | 13 | 4 | 0.2 | 1.08 | 0.43 | 8 | 2 | 34000 | 43000 | 0.0024 |
696 | 6 | 15 | 5 | 0.2 | 1.35 | 0.53 | 8 | 2.381 | 32000 | 40000 | 0.0038 |
697 | 7 | 17 | 5 | 0.2 | 1.61 | 0.715 | 9 | 2.381 | 300000 | 38000 | 0.0052 |
698 | 8 | 19 | 6 | 0.3 | 1.99 | 0.865 | 7 | 3.5 | 28000 | 36000 | 0.0073 |
699 | 9 | 20 | 6 | 0.3 | 2.48 | 1.09 | 9 | 2.381 | 27000 | 34000 | 0.0082 |
6900 | 10 | 22 | 6 | 0.5 | 2.7 | 1.27 | 12 | 2.381 | 2500 | 32000 | 0.009 |
6901 | 12 | 24 | 6 | 0.5 | 2.89 | 1.46 | 9 | 3.5 | 20000 | 28000 | 0.011 |
6902 | 15 | 28 | 7 | 0.5 | 4.1 | 2.06 | 10 | 3.969 | 19000 | 26000 | 0.016 |
6903 | 17 | 30 | 7 | 0.5 | 4.65 | 2.58 | 11 | 3.969 | 18000 | 24000 | 0.018 |
6904 | 20 | 37 | 9 | 0.5 | 6.4 | 3.7 | 11 | 4.763 | 17000 | 22000 | 0.036 |
6905 | 25 | 42 | 9 | 0.5 | 7.05 | 4.56 | 13 | 4.763 | 14000 | 18000 | 0.042 |
6906 | 30 | 47 | 9 | 0.6 | 7.25 | 5 | 14 | 4.763 | 12000 | 16000 | 0.148 |
6907 | 35 | 55 | 10 | 0.6 | 11.2 | 7.45 | 14 | 5.556 | 10000 | 14000 | 0.074 |
6908 | 40 | 62 | 12 | 0.6 | 14.5 | 10.2 | 14 | 6.747 | 8000 | 12000 | 0.11 |
6909 | 45 | 68 | 12 | 0.6 | 15.1 | 11.2 | 15 | 6.747 | 6000 | 10000 | 0.128 |
6910 | 50 | 72 | 12 | 0.6 | 15.6 | 12.2 | 16 | 6.747 | 4000 | 8000 | 0.132 |
