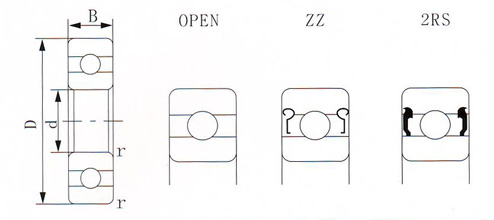

6700 Series
Bearing No. | Boundary Dimensions(mm) | |||
| d(mm) | D(mm) | B(mm) | Chamfer rsmin(mm) | |
| 6700 OPEN | 10 | 15 | 3 | 0.1 |
| 6700 ZZ | 10 | 15 | 4 | 0.1 |
| 6701 | 12 | 18 | 4 | 0.2 |
| 6702 | 15 | 21 | 4 | 0.2 |
| 6703 | 17 | 23 | 4 | 0.2 |
| 6704 | 20 | 27 | 4 | 0.2 |
| 6705 | 25 | 32 | 4 | 0.2 |
| 6706 | 30 | 37 | 4 | 0.2 |
| 6707 | 35 | 44 | 5 | 0.3 |
| 6708 | 40 | 50 | 6 | 0.3 |
| 6709 | 45 | 55 | 6 | 0.3 |
| 6710 | 50 | 62 | 6 | 0.3 |
| 6711 | 55 | 68 | 7 | 0.3 |
| 6712 | 60 | 75 | 7 | 0.3 |
