MB00

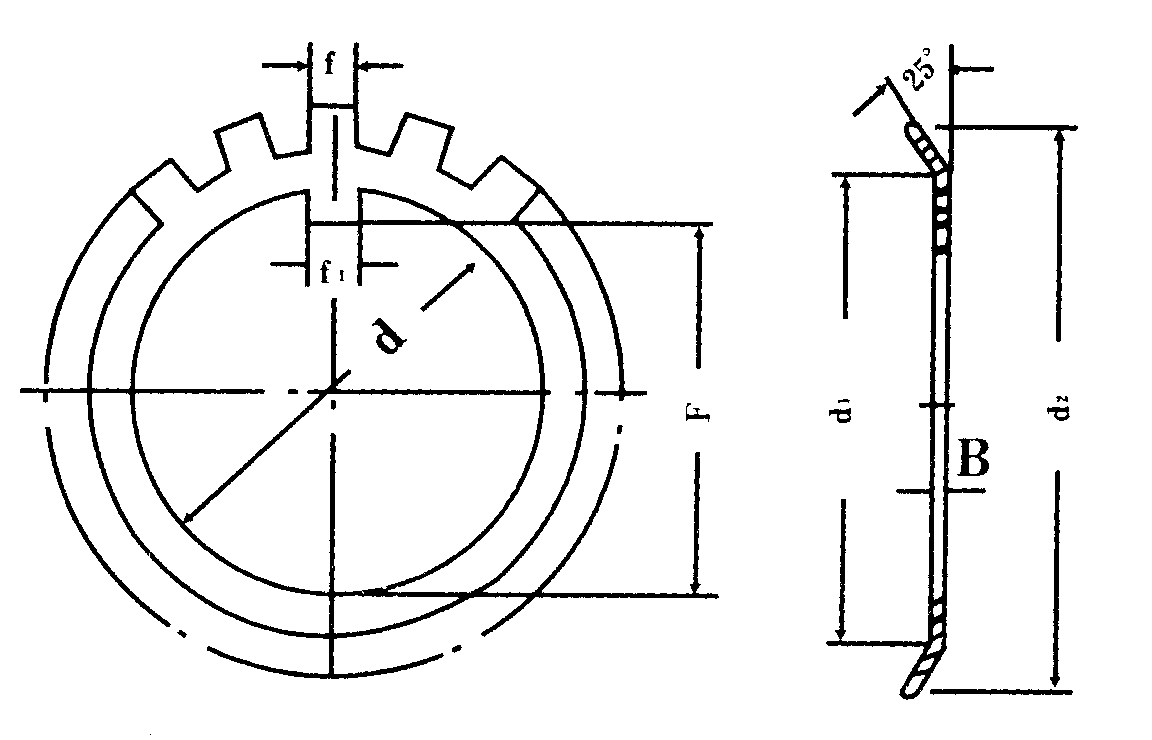

| Item No. | Boundary Dimensions（mm） | N.Weight (kg) | ||||||
| d | d1 | d2 | F | B | f | f1 | ||
| MB00 | 10 | 13.5 | 21 | 8.5 | 1 | 3 | 3 | 0.001 |
| MB01 | 12 | 17 | 25 | 10.5 | 1 | 3 | 3 | 0.002 |
| MB02 | 15 | 21 | 28 | 13.5 | 1 | 4 | 4 | 0.0026 |
| MB03 | 17 | 24 | 32 | 15.5 | 1 | 4 | 4 | 0.0032 |
| MB04 | 20 | 26 | 36 | 18.5 | 1 | 4 | 4 | 0.0035 |
| MB05 | 25 | 32 | 42 | 23 | 1.25 | 5 | 5 | 0.0064 |
| MB06 | 30 | 38 | 49 | 27.5 | 1.25 | 5 | 5 | 0.0078 |
| MB07 | 35 | 44 | 57 | 32.5 | 1.25 | 5 | 6 | 0.0105 |
| MB08 | 40 | 50 | 62 | 37.5 | 1.25 | 6 | 6 | 0.0124 |
| MB09 | 45 | 56 | 69 | 42.5 | 1.25 | 6 | 6 | 0.0152 |
| MB10 | 50 | 61 | 74 | 47.5 | 1.25 | 6 | 6 | 0.016 |
| MB11 | 55 | 67 | 81 | 52.5 | 1.5 | 7 | 8 | 0.0196 |
| MB12 | 60 | 73 | 86 | 57.5 | 1.5 | 7 | 8 | 0.0253 |
| MB13 | 65 | 79 | 92 | 62.5 | 1.5 | 7 | 8 | 0.029 |
| MB14 | 70 | 85 | 98 | 66.5 | 1.5 | 8 | 8 | 0.0334 |
| MB15 | 75 | 90 | 104 | 71.5 | 1.5 | 8 | 8 | 0.0356 |
| MB16 | 80 | 95 | 112 | 76.5 | 1.8 | 8 | 10 | 0.0465 |
| MB17 | 85 | 102 | 119 | 81.5 | 1.8 | 8 | 10 | 0.0524 |
| MB18 | 90 | 108 | 126 | 86.5 | 1.8 | 10 | 10 | 0.061 |
| MB19 | 95 | 113 | 133 | 91.5 | 1.8 | 10 | 10 | 0.067 |
| MB20 | 100 | 120 | 142 | 96.5 | 1.8 | 10 | 12 | 0.0765 |
| MB21 | 105 | 126 | 145 | 100.5 | 1.8 | 12 | 12 | 0.0826 |
| MB22 | 110 | 133 | 154 | 105.5 | 1.8 | 12 | 12 | 0.094 |
| MB23 | 115 | 137 | 159 | 110.5 | 2 | 12 | 12 | 0.103 |
| MBL24 | 120 | 135 | 152 | 115 | 2 | 12 | 14 | 0.07 |
| MB24 | 120 | 138 | 164 | 115 | 2 | 12 | 14 | 0.105 |
| MB25 | 125 | 148 | 170 | 120 | 2 | 12 | 14 | 0.118 |
| MBL26 | 130 | 145 | 161 | 125 | 2 | 12 | 14 | 0.08 |
| MB26 | 130 | 149 | 175 | 125 | 2 | 12 | 14 | 0.118 |
| MB27 | 135 | 160 | 185 | 130 | 2 | 14 | 14 | 0.144 |
| MBL28 | 140 | 155 | 172 | 135 | 2 | 14 | 16 | 0.09 |
| MB28 | 140 | 160 | 192 | 135 | 2 | 14 | 16 | 0.144 |
| MB29 | 145 | 172 | 202 | 140 | 2 | 14 | 16 | 0.168 |
| MBL30 | 150 | 170 | 189 | 145 | 2 | 14 | 16 | 0.1 |
| MB30 | 150 | 171 | 205 | 145 | 2 | 14 | 16 | 0.155 |
| MB31 | 155 | 182 | 212 | 147.5 | 2.5 | 16 | 16 | 0.209 |
| MBL32 | 160 | 180 | 199 | 154 | 2.5 | 16 | 18 | 0.14 |
| MB32 | 160 | 182 | 217 | 154 | 2.5 | 16 | 18 | 0.222 |
| MB33 | 165 | 193 | 222 | 157.5 | 2.5 | 16 | 18 | 0.241 |
| MBL34 | 170 | 190 | 211 | 164 | 2.5 | 16 | 18 | 0.15 |
| MB34 | 170 | 193 | 232 | 164 | 2.5 | 16 | 18 | 0.248 |
| MBL36 | 180 | 200 | 222 | 174 | 2.5 | 18 | 20 | 0.16 |
| MB36 | 180 | 203 | 242 | 174 | 2.5 | 18 | 20 | 0.258 |
| MBL38 | 190 | 210 | 232 | 184 | 2.5 | 18 | 20 | 0.178 |
| MB38 | 190 | 214 | 252 | 184 | 2.5 | 18 | 20 | 0.278 |
| MBL40 | 200 | 222 | 245 | 194 | 2.5 | 18 | 20 | 0.22 |
| MB40 | 200 | 226 | 262 | 194 | 2.5 | 18 | 20 | 0.293 |
| MB44 | 220 | 250 | 292 | 213 | 3 | 20 | 24 | 0.35 |
| MB48 | 240 | 270 | 312 | 233 | 3 | 20 | 24 | 0.45 |
| MB52 | 260 | 300 | 342 | 253 | 3 | 24 | 28 | 0.6 |
| MB56 | 260 | 320 | 362 | 273 | 3 | 24 | 28 | 0.624 |
