HM

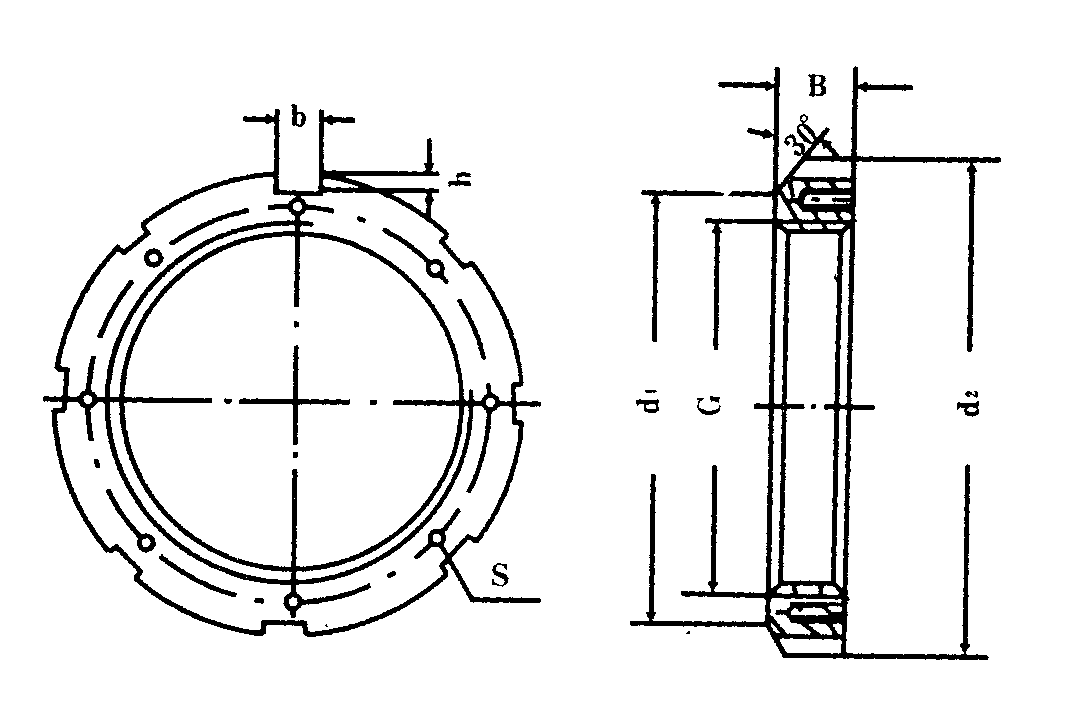

HM drawing.png

Item No.	Boundary Dimensions（mm）						Lock Washer	N.Weight (kg)
Item No.	G	d1	d₂	B	b	h	Lock Washer	N.Weight (kg)
HML44	TR220X4	242	260	32	20	9	MSL44	3.40
HML48	TR240X4	270	290	34	20	10	MSL48	4.85
HML52	TR260X4	290	310	34	20	10	MSL48	5.15
HML56	TR280X4	310	330	38	24	10	MSL56	5.50
HML60	TR300X4	336	360	42	24	12	MSL60	7.25
HM60	TR300X4	340	380	40	24	12	MS60	12.00
HM62	TR310X4	350	390	42	24	12		13.00
HML64	TR320X5	356	380	42	24	12	MSL64	10.50
HM64	TR320X5	360	400	42	24	12	MS64	13.50
HML68	TR340X5	376	400	45	24	12	MSL64	13.00
HM68	TR340X5	400	440	55	28	15	MS68	23.20
HML69	TR345X5	384	410	45	28	13		13.00
HM70	TR350X5	410	450	55	28	15		25.00
HML72	TR360X5	394	420	45	28	13	MSL72	14.00
HM72	TR360X5	420	460	58	28	15	MS68	27.00
HML73	TR365X5	404	430	48	28	13		14.00
HML76	TR380X5	442	450	48	28	14	MSL76	15.00
HM76	TR380X5	440	490	60	32	18	MS76	31.00
HML77	TR385X5	422	450	48	28	14		15.50
HML80	TR400X5	442	470	52	28	14	MSL76	17.00
HM80	TR400X5	460	520	62	32	18	MS80	40.00
HML82	TR410X5	452	480	52	32	14		19.00
HML84	TR420X5	462	490	52	32	14	MSL84	21.50
HM84	TR420X5	490	540	70	32	18	MS80	47.00
HML86	TR430X5	472	500	52	32	14		22.00
HML88	TR440X5	490	520	60	32	15	MSL88	30.00
HM88	TR440X5	510	560	70	36	20	MS88	48.50
HML90	TR450X5	490	520	60	32	15		24.00
HML92	TR460X5	510	540	60	32	15	MSL88	28.00
HM92	TR460X5	540	580	75	36	20	MS88	51.00
KM96	TR480X5	560	620	75	36	20		62.20
HML94	TR470X5	510	540	60	32	15		27.50
HML96	TR480X5	530	560	60	36	15	MSL96	29.50
HM96	TR480X5	560	620	75	36	20	MS96	62.50
HML98	TR490X5	550	580	60	36	15		34.00
HML/500	TR500X5	550	580	68	36	15	MSL96	35.00
HM/500	TR500X5	580	630	80	40	23	MS/500	64.00
HM/510	TR510X6	590	650	80	40	23		79.00
HML/520	TR520X6	570	600	68	36	15		37.00
HML/530	TR530X6	590	630	68	40	20	MSL/530	50.00
HM/530	TR530X6	610	670	80	40	23	MS/530	82.00
HML/540	TR540X6	590	630	68	40	20		47.00
HM/550	TR550X6	640	700	80	40	23		86.00
HML/560	TR560X6	610	650	75	40	20	MSL/560	51.00
HM/560	TR560X6	650	710	85	45	25	MS/560	97.00
HML/600	TR600X6	660	700	75	40	20	MSL/560	59.00
HM/600	TR600X6	690	750	85	45	25	MS/560	102.00
HML/630	TR630X6	690	730	75	45	20	MSL/630	63.00
HM/630	TR630X6	730	800	95	50	28	MS/630	115.00
HML/670	TR670X6	740	780	80	45	20	MSL/670	78.00
HM/670	TR670X6	775	850	106	50	28	MS/670	174.00
HML/710	TR710X7	780	830	90	50	25	MSL/710	98.00
HM/710	TR710X7	825	900	106	55	30	MS/710	196.00
HML/750	TR750X7	820	870	90	55	25	MSL/750	105.00
HM/750	TR750X7	875	950	112	60	34	MS/750	231.00
HML/800	TR800X7	870	920	90	55	25	MSL/750	112.00
HM/800	TR800X7	925	1000	112	60	34	MS/750	245.00
HML/850	TR850X7	925	980	90	60	25	MSL/850	130.00
HM/850	TR850X7	975	1060	118	70	38	MS/900	289.00
HML/900	TR900X7	975	1030	100	60	25	MSL/850	152.00
HM/900	TR900X7	1030	1120	125	70	38	MS/900	340.00
HML/950	TR950X8	1025	1080	100	60	25	MSL/950	163.00
HM/950	TR950X8	1080	1170	125	70	38	MS/950	359.00
HML/1000	TR1000X8	1085	1140	100	60	25	MSL/1000	184.00
HM/1000	TR1000X8	1140	1240	125	70	38	MS/1000	413.00
HML/1060	TR1060X8	1145	1200	100	60	25	MSL/1000	195.00
HM/1060	TR1060X8	1210	1300	125	70	38	MS/1000	436.00
HML/1120	TR1120X8	1205	1260	100	60	25	MSL/1000	205.00
