H39

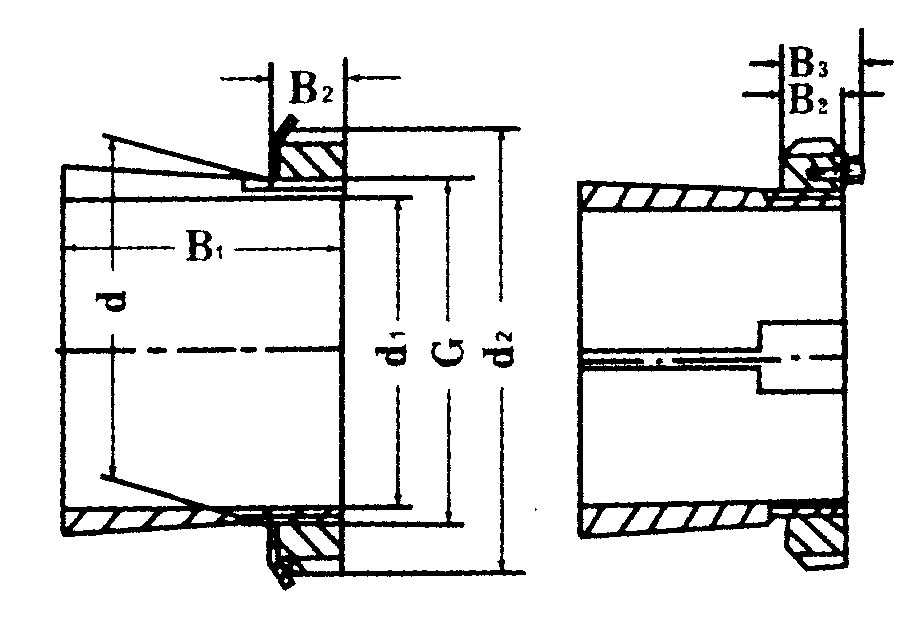

H30 31 32 39 drawing .png

Item No.	Boundary Dimensions（mm）							Lock Nut	Lock Washer	Bearing No.	N.Weight （kg)
Item No.	d	d1	d2	B1	B2	B3	G	Lock Nut	Lock Washer	Bearing No.	N.Weight （kg)
H3924	120	110	145	60	22	﹣	M120X2	KML24	MBL24	23924K	1.7
H3926	130	115	155	65	23	﹣	M130X2	KML26	MBL26	23926K	2.4
H3928	140	125	165	66	24	﹣	M140X2	KML28	MBL28	23928K	2.7
H3930	150	135	180	76	26	﹣	M150X2	KML30	MBL30	23930K	3.6
H3932	160	140	190	78	28	﹣	M160X3	KML32	MBL32	23932K	4.6
H3934	170	150	200	79	29	﹣	M170X3	KML34	MBL34	23934K	5
H3936	180	160	210	87	30	﹣	M180X3	KML36	MBL36	23936K	5.7
H3938	190	170	220	89	31	﹣	M190X3	KML38	MBL38	23938K	6.2
H3940	200	180	240	98	32	﹣	M200X3	KML40	MBL40	23940K	7.9
H3944	220	200	260	96	30	41	TR220X4	HML44	MSL44	23944K	7.95
H3948	240	220	290	101	34	46	TR240X4	HML48	MSL48	23948K	11
H3952	260	240	310	116	34	46	TR260X4	HML52	MSL48	23952K	11.7
H3956	280	260	330	121	38	50	TR280X4	HML56	MSL56	23956K	15.3
H3960	300	280	360	140	42	54	TR300X4	HML60	MSL60	23960K	20
H3964	320	300	380	140	42	55	TR320X5	HML64	MSL64	23964K	21.5
H3968	340	320	400	144	45	58	TR340X5	HML68	MSL64	23968K	24.5
H3972	360	340	420	144	45	58	TR360X5	HML72	MSL72	23972K	25.2
H3976	380	360	450	164	48	62	TR380X5	HML76	MSL76	23976K	31.5
H3980	400	380	470	168	52	66	TR400X5	HML80	MSL76	23980K	35
H3984	420	400	490	168	52	66	TR420X5	HML84	MSL84	23984K	36
H3988	440	410	520	189	60	77	TR440X5	HML88	MSL88	23988K	58
H3992	460	430	540	189	60	77	TR460X5	HML92	MSL88	23992K	60
H3996	480	450	560	200	60	77	TR480X5	HML96	MSL96	23996K	66
H39/500	500	470	580	208	68	85	TR500X5	HML/500	MSL96	239/500K	74.3
H39/530	530	500	630	216	68	90	TR530X6	HML/530	MSL/530	239/530K	87.9
H39/560	560	530	650	227	75	97	TR560X6	HML/560	MSL/560	239/560K	95
H39/600	600	560	700	239	75	97	TR600X6	HML/600	MSL/560	239/600K	127
H39/630	630	600	730	254	75	97	TR630X6	HML/630	MSL/630	239/630K	124
H39/670	670	630	780	264	80	102	TR670X6	HML/670	MSL/670	239/670K	162
H39/710	710	670	830	286	90	112	TR710X7	HML/710	MSL/710	239/710K	183
H39/750	750	710	870	291	90	112	TR750X7	HML750	MSL/750	239/750K	211
H39/800	800	750	920	303	90	112	TR800X7	HML/800	MSL/800	239/800K	259
H39/850	850	800	980	308	90	115	TR850X7	HML/850	MSL850	239/850K	288
H39/900	900	850	1030	326	100	125	TR900X7	HML/900	MSL/900	239/900K	330
H39/950	950	900	1080	344	100	125	TR950X8	HML/950	MSL/950	239/950K	362
H39/1000	1000	950	1140	358	100	125	TR1000X8	HML/1000	MSL/1000	239/1000K	407
H39/1060	1060	1000	1200	372	100	125	TR1060X8	HML/1060	MSL/1000	239/1060K	490
