H23

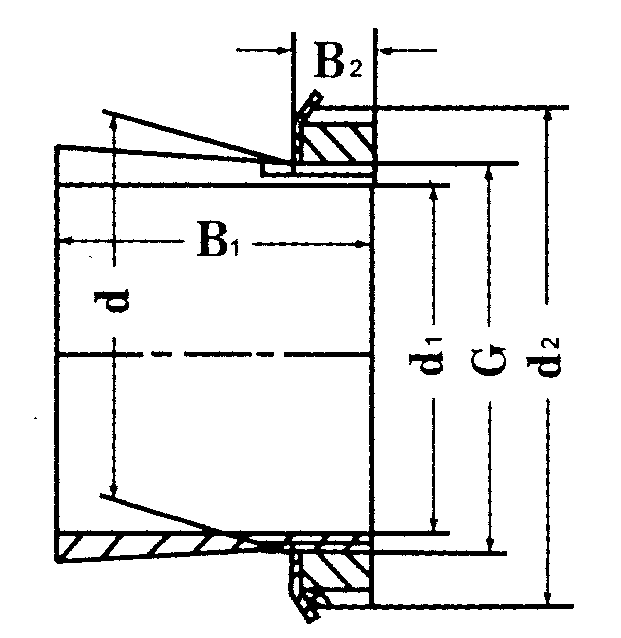

H drawing.png

Item No.	Boundary Dimensions（mm）						Lock Nut	Lock Washer	Bearing No.		N.Weight Kgs
Item No.	d	d1	d2	B1	B2	G	Lock Nut	Lock Washer	Bearing No.		N.Weight Kgs
H2302	15	12	25	25	6	M15X1	KM02	MB02	--	--	0.032
H2303	17	14	28	27	6	M17X1	KM03	MB03	--	--	0.042
H2304	20	17	32	31	7	M20X1	KM04	MB04	2304K	--	0.050
H2305	25	20	38	35	8	M25X1.5	KM05	MB05	2305K	--	0.085
H2306	30	25	45	38	8	M30X1.5	KM06	MB06	2306K	--	0.110
H2307	35	30	52	43	9	M35X1.5	KM07	MB07	2307K	--	0.160
H2308	40	35	58	46	10	M40X1.5	KM08	MB08	2308K	22308K	0.220
H2309	45	40	65	50	11	M45X1.5	KM09	MB09	2309K	22309K	0.270
H2310	50	45	70	55	12	M50X1.5	KM10	MB10	2310K	22310K	0.340
H2311	55	50	75	59	12	M55X2	KM11	MB11	2311K	22311K	0.390
H2312	60	55	80	62	13	M60X2	KM12	MB12	2312K	22312K	0.450
H2313	65	60	85	65	14	M65X2	KM13	MB13	2313K	22313K	0.520
H2314	70	60	92	68	14	M70X2	KM14	MB14	2314K	22314K	0.880
H2315	75	65	98	73	15	M75X2	KM15	MB15	2315K	22315K	1.100
H2316	80	70	105	78	17	M80X2	KM16	MB16	2316K	22316K	1.200
H2317	85	75	110	82	18	M85X2	KM17	MB17	2317K	22317K	1.350
H2318	90	80	120	86	18	M90X2	KM18	MB18	2318K	22318K	1.600
H2319	95	85	125	90	19	M95X2	KM19	MB19	2319K	22319K	1.800
H2320	100	90	130	97	20	M100X2	KM20	MB20	2320K	22320K	2.000
H2321	105	95	140	101	20	M105X2	KM21	MB21	2321K	22321K	2.460
H2322	110	100	145	105	20	M110X2	KM22	MB22	2322K	22322K	2.750
H2324	120	110	155	112	22	M120X2	KM24	MB24	--	22324K 23224K	3.000
H2326	130	115	165	121	23	M130X2	KM26	MB26	--	22326K 23226K	4.450
H2328	140	125	180	131	24	M140X2	KM28	MB28	--	22328K 23228K	5.400
H2330	150	135	195	139	26	M150X2	KM30	MB30	--	22330K 23230K	6.400
H2332	160	140	210	147	28	M160X3	KM32	MB32	--	22332K 23232K	8.800
H2334	170	150	220	154	29	M170X3	KM34	MB34	--	22334K 23234K	9.900
H2336	180	160	230	161	30	M180X3	KM36	MB36	--	22336K 23236K	11.000
H2338	190	170	240	169	31	M190X3	KM38	MB38	--	22338K 23238K	12.000
H2340	200	180	250	176	32	M200X3	KM40	MB40	--	22340K 23240K	13.500
H2344	220	200	280	186	35	TR220X4	HM44	MB44	--	22344K 23244K	17.000
H2348	240	220	300	199	37	TR240X4	HM48	MB48	--	22348K 23248K	19.000
H2352	260	240	330	211	39	TR260X4	HM52	MB52	--	22352K 23252K	23.000
H2356	280	260	350	224	41	TR280X4	HM56	MB56	--	22356K 23256K	27.000
