H31

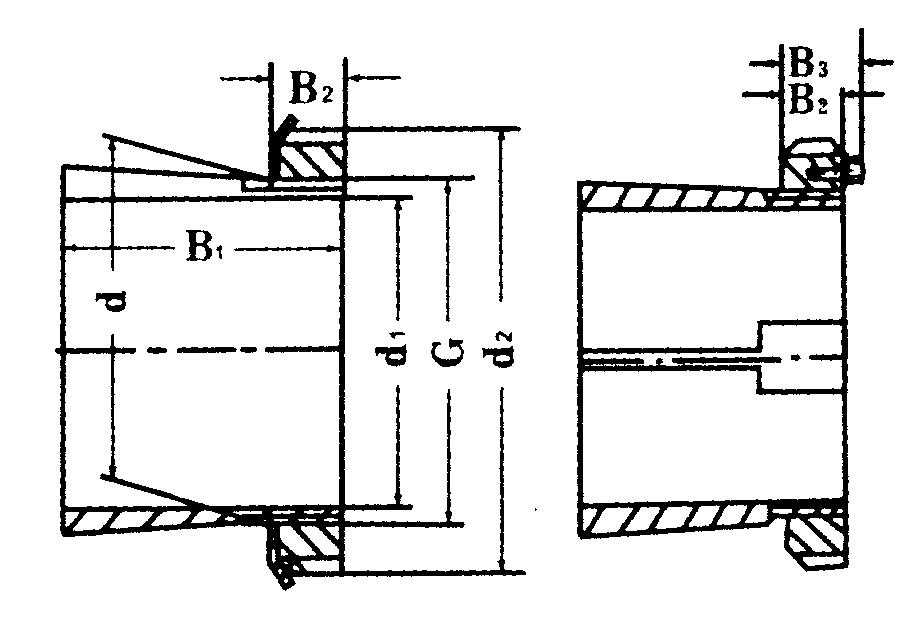

H30 31 32 39 drawing .png

Item No.	Boundary Dimensions（mm）							Lock Nut	Lock Washer	Bearing No.		N.Weight （kg)
Item No.	d	d1	d2	B1	B2	B3	G	Lock Nut	Lock Washer	Bearing No.		N.Weight （kg)
H3120	100	90	130	76	20	﹣	M100X2	KM20	MB20	23120K		1.800
H3122	110	100	145	81	21	﹣	M110X2	KM22	MB22	23122K	22222K	2.100
H3124	120	110	155	88	22	﹣	M120X2	KM24	MB24	23124K	22224K	2.500
H3126	130	115	165	92	23	﹣	M130X2	KM26	MB26	23126K	22226K	3.450
H3128	140	125	180	97	24	﹣	M140X2	KM28	MB28	23128K	22228K	4.100
H3130	150	135	195	111	26	﹣	M150X2	KM30	MB30	23130K	22230K	5.250
H3132	160	140	210	119	28	﹣	M160X3	KM32	MB32	23132K	22232K	7.250
H3134	170	150	220	122	29	﹣	M170X3	KM34	MB34	23134K	22234K	8.100
H3136	180	160	230	131	30	﹣	M180X3	KM36	MB36	23136K	22236K	9.150
H3138	190	170	240	141	31	﹣	M190X3	KM38	MB38	23138K	22238K	10.500
H3140	200	180	250	150	32	﹣	M200X3	KM40	MB40	23140K	22240K	12.000
H3144	220	200	280	161	35	﹣	TR220X4	HM44	MB44	23144K	22244K	15.000
H3148	240	220	300	172	37	﹣	TR240X4	HM48	MB48	23148K	22248K	16.000
H3152	260	240	330	190	39	﹣	TR260X4	HM52	MB52	23152K	22252K	21.000
H3156	280	260	350	195	41	﹣	TR280X4	HM56	MB56	23156K	22256K	23.000
H3160	300	280	380	208	40	53	TR300X4	HM60	MS60	23160K	22260K	29.000
H3164	320	300	400	226	42	56	TR320X5	HM64	MS64	23164K	22264K	32.000
H3168	340	320	440	254	55	72	TR340X5	HM68	MS68	23168K	--	50.000
H3172	360	340	460	259	58	75	TR360X5	HM72	MS68	23172K	--	56.000
H3176	380	360	490	264	60	77	TR380	HM76	MS76	23176K	--	61.500
H3180	400	380	520	272	62	82	TR400X5	HM80	MS80	23180K	--	73.000
H3184	420	400	540	304	70	90	TR420X5	HM84	MS80	23184K	--	80.000
H3188	440	410	560	307	70	90	TR440X5	HM88	MS88	23188K	--	95.000
H3192	460	430	580	326	75	95	TR460X5	HM92	MS88	23192K	--	119.000
H3196	480	450	620	335	75	95	TR480X5	HM96	MS96	23196K	--	135.000
H31/500	500	470	630	356	80	100	TR500X5	HM/500	MS/500	231/500K	--	145.000
H31/530	530	500	670	364	80	105	TR530X6	HM/530		231/530K	--	161.000
H31/560	560	530	710	377	85	110	TR560X6	HM/560	MS/560	231/560K	--	185.000
H31/600	600	560	750	399	85	110	TR600X6	HM/600	MS/560	231/600K	--	234.000
H31/630	630	600	800	424	95	120	TR630X6	HM/630	MS/630	231/630K	--	254.000
H31/670	670	630	850	456	106	131	TR670X6	HM/670	MS/670	231/670K	--	340.000
H31/710	710	670	900	467	106	135	TR710X7	HM/710	MS/710	231/710K	--	392.000
H31/750	750	710	950	493	112	141	TR750X7	HM/750	MS/750	231/750K	--	451.000
H31/800	800	750	1000	505	112	141	TR800X7	HM/800	MS/750	231/800K	--	535.000
H31/850	850	800	1060	536	118	147	TR850X7	HM/850	MS/850	231/850K	--	616.000
H31/900	900	850	1120	557	125	154	TR900X7	HM/900	MS/900	231/900K	--	677.000
H31/950	950	900	1170	583	125	154	TR950X8	HM/950	MS/950	231/950K	--	738.000
H31/1000	1000	950	1240	609	125	154	TR1000X8	HM/1000	MS/1000	231/1000K	--	842.000
H31/1060	1060	1000	1300	622	125	154	TR1060X8	HM/1060	MS/1000	231/1060K	--	984.000
