H30

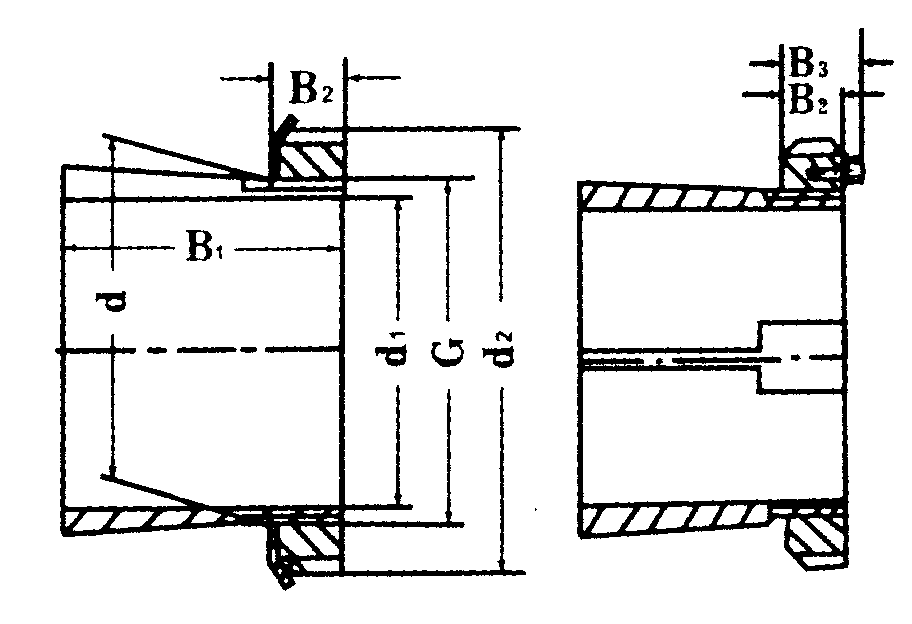

H30 31 32 39 drawing .png

Item No.	Boundary Dimensions（mm）							Lock Nut	Lock Washer	Bearing No.	N.Weight （kg)
Item No.	d	d1	d2	B1	B2	B3	G	Lock Nut	Lock Washer	Bearing No.	N.Weight （kg)
H3024	120	110	145	72	22	﹣	M120X2	KML24	MBL24	23024K	1.8
H3026	130	115	155	80	23	﹣	M130X2	KML26	MBL26	23026K	2.8
H3028	140	125	165	82	24	﹣	M140X2	KML28	MBL28	23028K	3.05
H3030	150	135	180	87	26	﹣	M150X2	KML30	MBL30	23030K	3.75
H3032	160	140	190	93	28	﹣	M160X3	KML32	MBL32	23032K	5.1
H3034	170	150	200	101	29	﹣	M170X3	KML34	MBL34	23034K	5.8
H3036	180	160	210	109	30	﹣	M180X3	KML36	MBL36	23036K	6.7
H3038	190	170	220	112	31	﹣	M190X3	KML38	MBL38	23038K	7.25
H3040	200	180	240	120	32	﹣	M200X3	KML40	MBL40	23040K	8.9
H3044	220	200	260	126	30	41	TR220X4	HML44	MSL44	23044K	9.9
H3048	240	220	290	133	34	46	TR240X4	HML48	MSL48	23048K	12
H3052	260	240	310	145	34	46	TR260X4	HML52	MSL48	23052K	13.5
H3056	280	260	330	152	38	50	TR280X4	HML56	MSL56	23056K	16
H3060	300	280	360	168	42	54	TR300X4	HML60	MSL60	23060K	20.5
H3064	320	300	380	171	42	55	TR320X5	HML64	MSL64	23064K	22
H3068	340	320	400	187	45	58	TR340X5	HML68	MSL64	23068K	27
H3072	360	340	420	188	45	58	TR360X5	HML72	MSL72	23072K	29
H3076	380	360	450	193	48	62	TR380X5	HML76	MSL76	23076K	35.5
H3080	400	380	470	210	52	66	TR400X5	HML80	MSL76	23080K	40
H3084	420	400	490	212	52	66	TR420X5	HML84	MSL84	23084K	47
H3088	440	410	520	228	66	77	TR440X5	HML88	MSL88	23088K	65
H3092	460	430	540	234	60	77	TR460X5	HML92	MSL88	23092K	71
H3096	480	450	560	237	60	77	TR480X5	HML96	MSL96	23096K	75
H30/500	500	470	580	247	68	85	TR500X5	HML/500	MSL96	230/500K	82
H30/530	530	500	630	265	68	90	TR530X6	HML/530	MSL/530	230/530K	105
H30/560	560	530	650	282	75	97	TR560X6	HML/560	MSL/560	230/560K	112
H30/600	600	560	700	289	75	97	TR600X6	HML/600	MSL/560	230/600K	147
H30/630	630	600	730	301	75	97	TR630X6	HML/630	MSL/630	230/630K	138
H30/670	670	630	780	324	80	102	TR670X6	HML/670	MSL/670	230/670K	190
H30/710	710	670	830	342	90	112	TR710X7	HML/710	MSL/710	230/710K	228
H30/750	750	710	870	356	90	112	TR750X7	HML750	MSL/750	230/750K	246
H30/800	800	750	920	366	90	112	TR800X7	HML/800	MSL/800	230/800K	302
H30/850	850	800	980	380	90	115	TR850X7	HML/850	MSL850	230/850K	341
H30/900	900	850	1030	400	100	125	TR900X7	HML/900	MSL/900	230/900K	387
H30/950	950	900	1080	420	100	125	TR950X8	HML/950	MSL/950	230/950K	424
H30/1000	1000	950	1140	430	100	125	TR1000X8	HML/1000	MSL/1000	230/1000K	470
H30/1060	1060	1000	1200	447	100	125	TR1060X8	HML/1060	MSL/1000	230/1060K	571
