Products Bearings 62200 Series

62200 Series

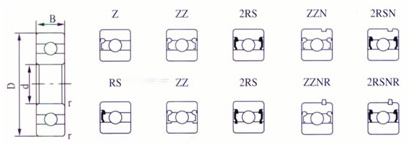

Bearing No.	Boundary Dimensions(mm)				Basic Load Rating		Limiting Speed		Net Weight
Bearing No.	d	D	B	Chamfer	C(N)	CO(N)	Grease	Oil	Kgs
62200	10	30	14	0.6	2.38	5.1	24000	30000	0.049
62201	12	32	14	0.6	3.05	6.82	22000	28000	0.053
62202	15	35	14	0.6	3.72	7.65	19000	24000	0.059
62203	17	40	16	1	4.78	9.58	17000	20000	0.091
62204	20	47	18	1	6.65	12.8	15000	18000	0.131
62205	25	52	18	1	7.88	14	12000	15000	0.148
62206	30	62	20	1.5	11.5	19.5	10000	13000	0.236
62207	35	72	23	1.5	15.2	25.5	9000	11000	0.375
62208	40	80	23	2	18.6	18.2	8000	10000	0.604
62301	12	37	17	1	5.08	9.72	20000	26000	0.095
62302	15	42	17	1	5.42	11.5	19000	24000	0.113
62303	17	47	19	1	6.58	13.5	17000	20000	0.141
62304	20	52	21	1.5	7.88	15.8	16000	18000	0.197
62305	25	62	24	1.5	11.5	22.2	13000	16000	0.317
62306	30	72	27	2	15.2	27	10000	14000	0.473
62307	35	80	31	2	19.2	33.2	9000	11000	0.658
6403	17	62	17	1	-	-	-	-	0.6
6404	20	72	19	1	-	-	-	-	0.9
6405	25	80	21	1.5	-	-	-	-	1.19
6406	30	90	23	1.5	-	-	-	-	1.59
