H3

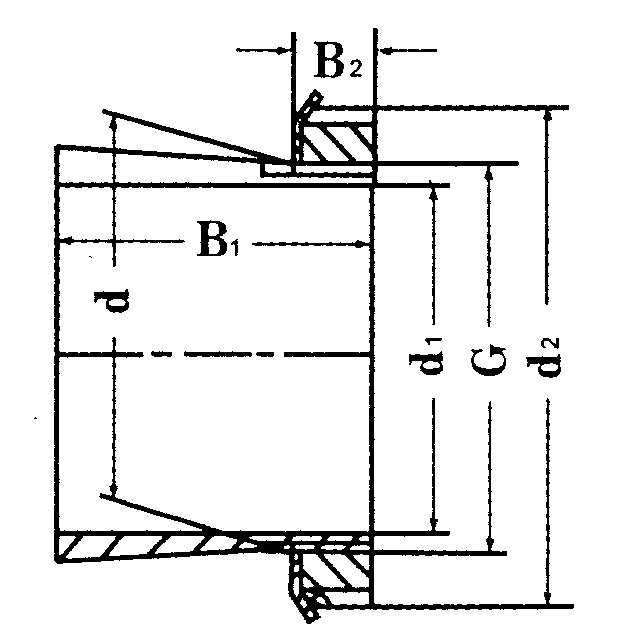

| Item No. | Boundary Dimensions（mm） | Lock Nut | Lock Washer | Bearing No. | N.Weight （kg) | ||||||
| d | d1 | d2 | B1 | B2 | G | ||||||
| H302 | 15 | 12 | 25 | 22 | 6 | M15X1 | KM02 | MB02 | 1302K 2202K | ||
| H303 | 17 | 14 | 28 | 24 | 6 | M17X1 | KM03 | MB03 | 1303K 2203K | ||
| H304 | 20 | 17 | 32 | 28 | 7 | M20X1 | KM04 | MB04 | 1304K 2204K | 21304K | 0.04 |
| H305 | 25 | 20 | 38 | 29 | 8 | M25X1.5 | KM05 | MB05 | 1305K 2205K | 21305K | 0.071 |
| H306 | 30 | 25 | 45 | 31 | 8 | M30X1.5 | KM06 | MB06 | 1306K 2206K | 21306K | 0.095 |
| H307 | 35 | 30 | 52 | 35 | 9 | M35X1.5 | KM07 | MB07 | 1307K 2207K | 21307K | 0.14 |
| H308 | 40 | 35 | 58 | 36 | 10 | M40X1.5 | KM08 | MB08 | 1308K 2208K | 21308K 22208K | 0.17 |
| H309 | 45 | 40 | 65 | 39 | 11 | M45X1.5 | KM09 | MB09 | 1309K 2209K | 21309K 22209K | 0.23 |
| H310 | 50 | 45 | 70 | 42 | 12 | M50X1.5 | KM10 | MB10 | 1310K 2210K | 21310K 22210K | 0.27 |
| H311 | 55 | 50 | 75 | 45 | 12 | M55X2 | KM11 | MB11 | 1311K 2211K | 21311K 22211K | 0.32 |
| H312 | 60 | 55 | 80 | 47 | 13 | M60X2 | KM12 | MB12 | 1312K 2212K | 21312K 22212K | 0.36 |
| H313 | 65 | 60 | 85 | 50 | 14 | M65X2 | KM13 | MB13 | 1313K 2213K | 21313K 22213K | 0.42 |
| H314 | 70 | 60 | 92 | 52 | 14 | M70X2 | KM14 | MB14 | 1314K 2214K | 21314K 22214K | 0.67 |
| H315 | 75 | 65 | 98 | 55 | 15 | M75X2 | KM15 | MB15 | 1315K 2215K | 21315K 22215K | 0.78 |
| H316 | 80 | 70 | 105 | 59 | 17 | M80X2 | KM16 | MB16 | 1316K 2216K | 21316K 22216K | 0.95 |
| H317 | 85 | 75 | 110 | 63 | 18 | M85X2 | KM17 | MB17 | 1317K 2217K | 21317K 22217K | 1.1 |
| H318 | 90 | 80 | 120 | 65 | 18 | M90X2 | KM18 | MB18 | 1318K 2218K | 21318K 22218K | 1.3 |
| H319 | 95 | 85 | 125 | 68 | 19 | M95X2 | KM19 | MB19 | 1319K 2219K | 21319K 22219K | 1.4 |
| H320 | 100 | 90 | 130 | 71 | 20 | M100X2 | KM20 | MB20 | 1320K 2220K | 21320K 22220K | 1.6 |
| H321 | 105 | 95 | 140 | 74 | 20 | M105X2 | KM21 | MB21 | |||
| H322 | 110 | 100 | 145 | 77 | 21 | M110X2 | KM22 | MB22 | 1322K 2222K | 21322K 22222K | 2.05 |
