Products Bearings H2

H2

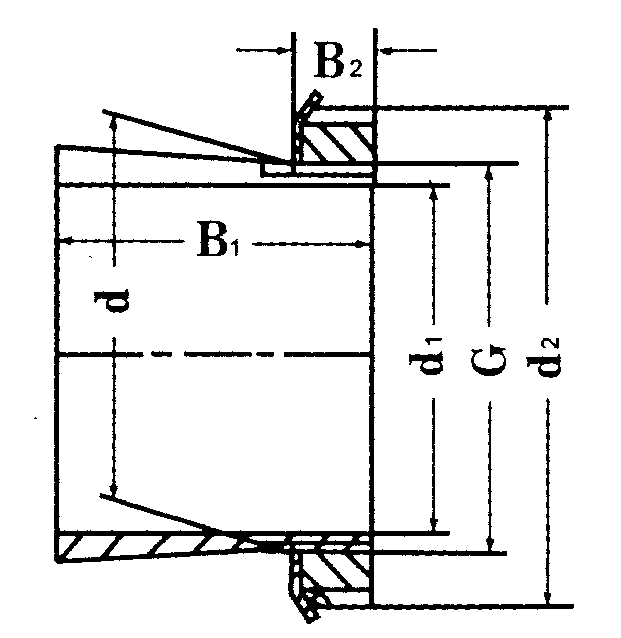

H drawing.png

Item No.	Boundary Dimensions（mm）						Lock Nut	Lock Washer	Bearing No.	N.Weight （kg)
Item No.	d	d1	d2	B1	B2	G	Lock Nut	Lock Washer	Bearing No.	N.Weight （kg)
H202	15	12	25	19	6	M15X1	KM02	MB02	1202K	0.024
H203	17	14	28	20	6	M17X1	KM03	MB03	1203K	0.030
H204	20	17	32	24	7	M20X1	KM04	MB04	1204K	0.036
H205	25	20	38	26	8	M25X1.5	KM05	MB05	1205K	0.064
H206	30	25	45	27	8	M30X1.5	KM06	MB06	1206K	0.086
H207	35	30	52	29	9	M35X1.5	KM07	MB07	1207k	0.120
H208	40	35	58	31	10	M40X1.5	KM08	MB08	1208K	0.160
H209	45	40	65	33	11	M45X1.5	KM09	MB09	1209K	0.210
H210	50	45	70	35	12	M50X1.5	KM10	MB10	1210K	0.240
H211	55	50	75	37	12	M55X2	KM11	MB11	1211K	0.280
H212	60	55	80	38	13	M60X2	KM12	MB12	1212K	0.310
H213	65	60	85	40	14	M65X2	KM13	MB13	1213K	0.360
H214	70	60	92	41	14	M70X2	KM14	MB14	1214K	0.550
H215	75	65	98	43	15	M75X2	KM15	MB15	1215K	0.660
H216	80	70	105	46	17	M80X2	KM16	MB16	1216K	0.810
H217	85	75	110	50	18	M85X2	KM17	MB17	1217K	0.940
H218	90	80	120	52	18	M90X2	KM18	MB18	1218K	1.100
H219	95	85	125	55	19	M95X2	KM19	MB19	1219K	1.250
H220	100	90	130	58	20	M100X2	KM20	MB20	1220K	1.400
H221	105	95	140	60	20	M105X2	KM21	MB21	1221K	1.600
H222	110	100	145	63	21	M110X2	KM22	MB22	1222K	1.800
