AH

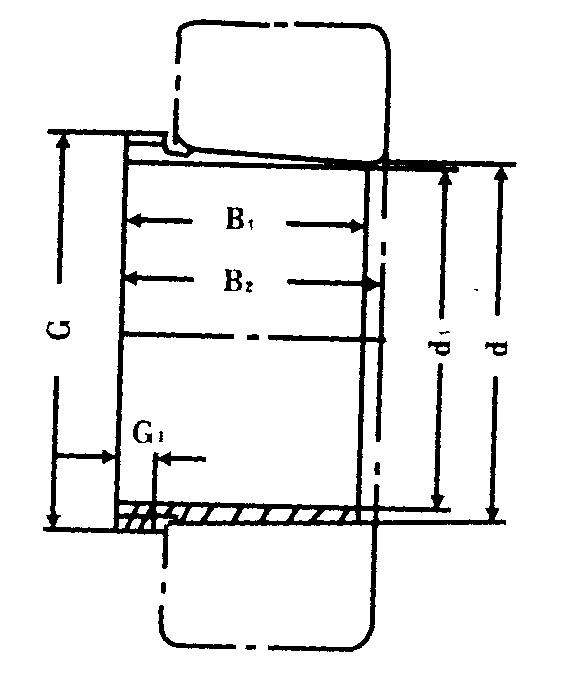

AH drawing.png

Item No.	Boundary Dimensions（mm）							Lock Nut	N.Weight （kg)
Item No.	d1	d	B1	B2	G	G1	G2	Lock Nut	N.Weight （kg)
AH226	125	130	53	57	M140X2	12		KM28	0.82
AHX326	125	130	74	78	M140X2	14		KM28	1.03
AHX2326	125	130	115	119	M145X2	19		KM29	2.00
AHX3026	125	130	67	71	M140X2	14		KM28	0.91
AHX3126	125	130	78	82	M140X2	12		KM28	1.10
AHX3226	125	130	98	102	M145X2	15		KM29	1.55
AH24026	125	130	83	93	M135X2	14		KM27	0.88
AH24126	125	130	94	104	M140X2	14		KM28	1.15
AH228	135	140	56	61	M150X2	13		KM30	1.00
AHX328	135	140	77	82	M150X2	14		KM30	1.15
AHX2328	135	140	125	130	M155X3	20		KM31	2.35
AHX3028	135	140	68	73	M150X2	14		KM30	1.00
AHX3128	135	140	83	88	M150X2	14		KM30	1.30
AHX3228	135	140	104	109	M155X3	15		KM31	1.85
AH24028	135	140	83	93	M145X2	14		KM29	0.95
AH24128	135	140	99	109	M150X2	14		KM30	1.30
AH230	145	150	60	65	M160X3	14		KM32	1.16
AHX330	145	150	83	88	M165X3	15		KM33	1.55
AHX2330	145	150	135	140	M165X3	24		KM33	2.80
AHX3030	145	150	72	77	M160X3	15		KM32	1.15
AHX3130	145	150	96	101	M165X3	15		KM33	1.80
AHX3230	145	150	114	119	M165X3	17		KM33	2.20
AH24030	145	150	90	101	M155X3	15		KM31	1.05
AH24130	145	150	115	126	M160X3	15		KM32	1.55
AH232	150	160	64	69	M170X3	15		KM34	1.91
AHX332	150	160	88	93	M180X3	16		KM36	2.73
AHX2332	150	160	140	146	M180X3	24		KM36	4.65
AHX3032	150	160	77	82	M170X3	16		KM34	2.05
AHX3132	150	160	103	108	M180X3	16		KM36	3.20
AHX3232	150	160	124	130	M180X3	20		KM36	4.00
AH24032	150	160	95	106	M170X3	15		KM34	2.30
AH24132	150	160	124	135	M170X3	15		KM34	3.00
AH234	160	170	69	74	M180X3	16		KM36	2.21
AH334	160	170	93	98	M190X3	17		KM38	3.19
AH2334	160	170	146	152	M190X3	24		KM38	5.25
AH3034	160	170	85	90	M180X3	17		KM36	2.45
AH3134	160	170	104	109	M190X3	16		KM38	3.45
AH3234	160	170	134	140	M190X3	24		KM38	4.80
AH24034	160	170	106	117	M180X3	16		KM36	2.70
AH24134	160	170	125	136	M180X3	16		KM36	3.25
AH236	170	180	69	74	M190X3	16		KM38	2.34
AH2236	170	180	105	110	M200X3	17		KM40	3.75
AH2336	170	180	154	160	M200X3	26		KM40	6.05
AH3036	170	180	92	98	M190X3	17		KM38	2.80
AH3136	170	180	116	122	M200X3	19		KM40	4.25
AH3236	170	180	140	146	M200X3	24		KM40	5.25
AH24036	170	180	116	127	M190X3	16		KM38	3.20
AH24136	170	180	134	145	M190X3	16		KM38	3.75
AH238	180	190	73	78	TR205X4	17		HML41	2.94
AH2238	180	190	112	117	TR210X4	18		HM42	4.25
AH2338	180	190	160	167	TR210X4	26		HM42	6.70
AH3038	180	190	96	102	TR205X4	18		HML41	3.40
AH3138	180	190	125	131	TR210X4	20		HM42	4.90
AH3238	180	190	145	152	TR210X4	25		HM42	5.90
AH24038	180	190	118	131	M200X3	18		KM40	3.55
AH24138	180	190	146	159	M200X3	18		KM40	4.45
AH240	190	200	77	82	TR215X4	18		HML43	3.12
AH2240	190	200	118	123	TR220X4	19		HM44	4.70
AH2340	190	200	170	177	TR220X4	30		HM44	7.60
AH3040	190	200	102	108	TR215X4	19		HML43	3.85
AH3140	190	200	134	140	TR220X4	21		HM44	5.65
AH3240	190	200	153	160	TR220X4	25		HM44	6.60
AH24040	190	200	127	140	TR210X4	18		HM42	4.00
AH24140	190	200	158	171	TR210X4	18		HM42	5.05
