AH, AOH

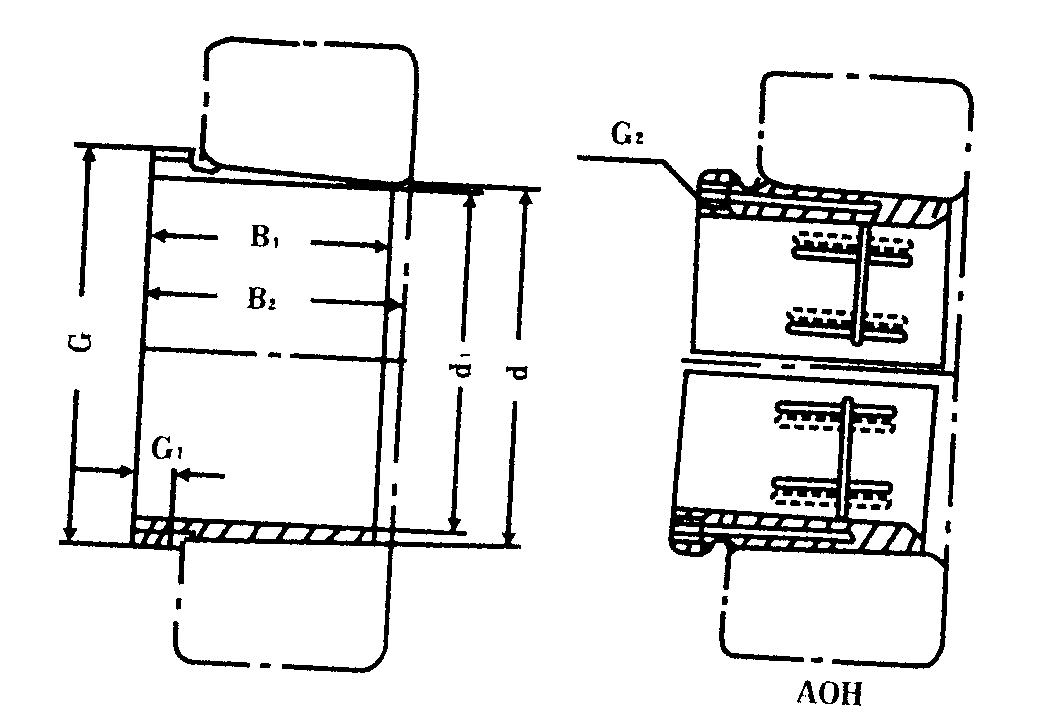

AH AOH drawing.png

Item No.	Boundary Dimensions（mm）							Lock Nut	N.Weight （kg)
Item No.	d1	d	B1	B2	G	G1	G2	Lock Nut	N.Weight （kg)
AH244	200	220	85	91	TR235X4	18		HML47	6.10
AH2244	200	220	130	136	TR240X4	20		HM48	9.10
AOH2244	200	220	130	136	TR240X4	20	G1/4	HM48	9.10
AH2344	200	220	181	189	TR240X4	30		HM48	13.50
AOH2344	200	220	181	189	TR240X4	30	G1/4	HM48	13.50
AH3044	200	220	111	117	TR235X4	20		HML47	7.40
AOH3044	200	220	111	117	TR235X4	20	G1/4	HML47	7.40
AH3144	200	220	145	151	TR240X4	23		HM48	9.30
AOH3144	200	220	145	151	TR240X4	23	G1/4	HM48	9.30
AH24044	200	220	138	152	TR230X4	20		HM46	8.20
AOH24044	200	220	138	152	TR230X4	20	G1/4	HM46	8.20
AH24144	200	220	170	184	TR230X4	20		HM46	10.00
AOH24144	200	220	170	184	TR230X4	20	G1/4	HM46	10.00
AH248	220	240	96	102	TR260X4	22		HML52	8.16
AH2248	220	240	144	150	TR260X4	21		HM52	11.10
AOH2248	220	240	144	150	TR260X4	21	G1/4	HM52	11.10
AH2348	220	240	189	197	TR260X4	30		HM52	14.00
AOH2348	220	240	189	197	TR260X4	30	G1/4	HM52	14.00
AH3048	220	240	116	123	TR260X4	21		HML52	7.95
AOH3048	220	240	116	123	TR260X4	21	G1/4	HML52	7.95
AH3148	220	240	154	161	TR260X4	25		HM52	12.00
AOH3148	220	240	154	161	TR260X4	25	G1/4	HM52	12.00
AH24048	220	240	138	153	TR260X4	20		HM50	8.05
AOH24048	220	240	138	153	TR260X4	20	G1/4	HM50	8.05
AH24148	220	240	180	195	TR260X4	20		HM52	11.50
AOH24148	220	240	180	195	TR260X4	20	G1/4	HM52	11.50
AH252	240	260	105	111	TR280X4	23		HML56	9.89
AH2252	240	260	155	161	TR290X4	23		HM58	12.50
AOH2252	240	260	155	161	TR290X4	23	G1/4	HM58	12.50
AH2352	240	260	205	213	TR290X4	30		HM58	17.50
AOH2352	240	260	205	213	TR290X4	30	G1/4	HM58	17.50
AH3052	240	260	128	135	TR280X4	23		HML56	9.60
AOH3052	240	260	128	135	TR280X4	23	G1/4	HML56	9.60
AH3152	240	260	172	179	TR290X4	26		HM58	16.00
AOH3152	240	260	172	179	TR290X4	26	G1/4	HM58	16.00
AH24052	240	260	162	178	TR270X4	22		HM54	10.50
AOH24052	240	260	162	178	TR270X4	22	G1/4	HM54	10.50
AH24152	240	260	202	218	TR280X4	22		HM56	14.00
AOH24152	240	260	202	218	TR280X4	22	G1/4	HM56	14.00
AH256	260	280	105	113	TR300X4	23		HML60	10.40
AH2256	260	280	155	163	TR310X4	24		HM62	15.00
AOH2256	260	280	155	163	TR310X4	24	G1/4	HM62	15.00
AH2356	260	280	212	220	TR310X4	30		HM62	19.50
AOH2356	260	280	212	220	TR310X4	30	G1/4	HM62	19.50
AH3056	260	280	131	139	TR300X4	24		HML60	11.00
AOH3056	260	280	131	139	TR300X4	24	G1/4	HML60	11.00
AH3156	260	280	175	183	TR310X4	28		HM62	15.50
AOH3156	260	280	175	183	TR310X4	28	G1/4	HM62	15.50
AH24056	260	280	162	179	TR290X4	22		HM58	11.50
AOH24056	260	280	162	179	TR290X4	22	G1/4	HM58	11.50
AH24156	260	280	202	219	TR300X4	22		HM60	15.00
AOH24156	260	280	202	219	TR300X4	22	G1/4	HM60	15.00
