AH, AOH

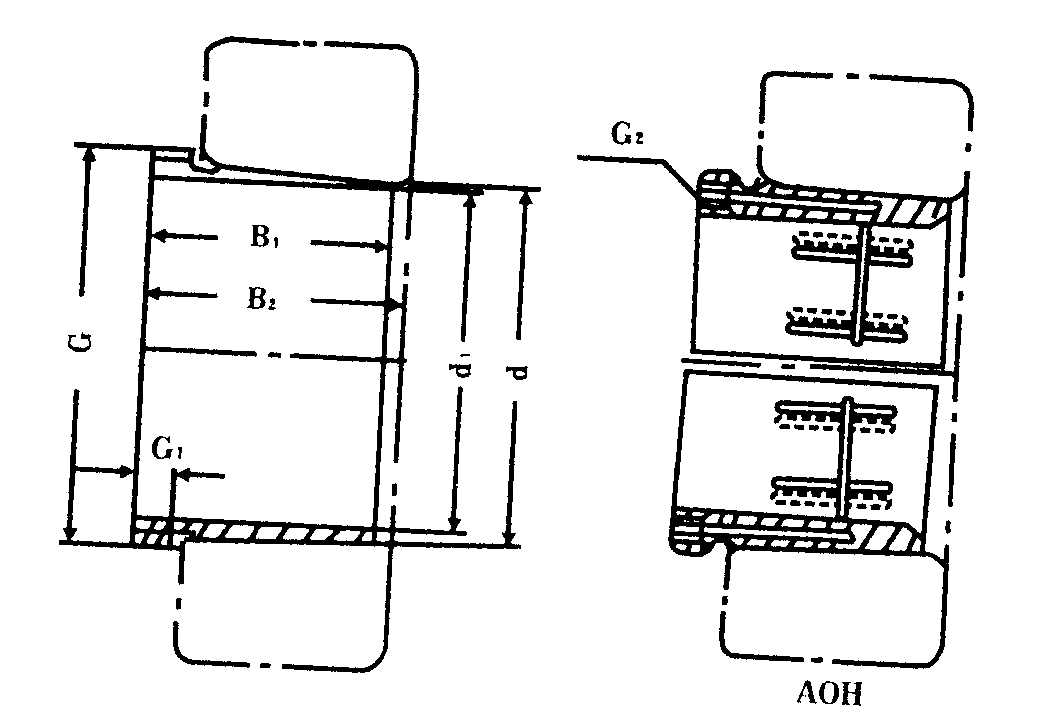

AH AOH drawing.png

Item No.	Boundary Dimensions（mm）							Lock Nut	N.Weight （kg)
Item No.	d1	d	B1	B2	G	G1	G2	Lock Nut	N.Weight （kg)
AH2260	280	300	170	178	TR330X5	26		HM66	18.00
AOH2260	280	300	170	178	TR330X5	26	G1/4	HM66	18.00
AH3060	280	300	145	153	TR320X5	26		HML64	13.00
AOH3060	280	300	145	153	TR320X5	26	G1/4	HML64	13.00
AH3160	280	300	192	200	TR330X5	30		HM66	19.00
AOH3160	280	300	192	200	TR330X5	30	G1/4	HM66	19.00
AH3260	280	300	228	236	TR330X5	34		HM66	23.50
AOH3260	280	300	228	236	TR330X5	34	G1/4	HM66	23.50
AH24060	280	300	184	202	TR310X4	24		HM62	14.00
AOH24060	280	300	184	202	TR310X4	24	G1/4	HM62	14.00
AH24160	280	300	224	242	TR320X5	24		HM64	18.50
AOH24160	280	300	224	242	TR320X5	24	G1/4	HM64	18.50
AH2264	300	320	180	190	TR350X5	27		HM70	20.00
AOH2264	300	320	180	190	TR350X5	27	G1/4	HM70	20.00
AH3064	300	320	149	157	TR345X5	27		HML69	14.50
AOH3064	300	320	149	157	TR345X5	27	G1/4	HML69	14.50
AH3164	300	320	209	217	TR350X5	31		HM70	22.50
AOH3164	300	320	209	217	TR350X5	31	G1/4	HM70	22.50
AH3264	300	320	246	254	TR350X5	36		HM70	27.50
AOH3264	300	320	246	254	TR350X5	36	G1/4	HM70	27.50
AH24064	300	320	184	202	TR330X5	24		HM66	15.00
AOH24064	300	320	184	202	TR330X5	24	G1/4	HM66	15.00
AH24164	300	320	242	260	TR340X5	24		HM68	20.50
AOH24164	300	320	242	260	TR340X5	24	G1/4	HM68	20.50
AH3068	320	340	162	171	TR365X5	28		HML73	17.50
AOH3068	320	340	162	171	TR365X5	28	G1/4	HML73	17.50
AH3168	320	340	225	234	TR370X5	33		HM74	26.50
AOH3168	320	340	225	234	TR370X5	33	G1/4	HM74	26.50
AH3268	320	340	264	273	TR370X5	38		HM74	32.00
AOH3268	320	340	264	273	TR370X5	38	G1/4	HM74	32.00
AH24068	320	340	206	225	TR360X5	26		HM72	18.00
AOH24068	320	340	206	225	TR360X5	26	G1/4	HM72	18.00
AH24168	320	340	269	288	TR360X5	26		HM72	25.50
AOH24168	320	340	269	288	TR360X5	26	G1/4	HM72	25.50
AH3072	340	360	167	176	TR385X5	30		HML77	19.00
AOH3072	340	360	167	176	TR385X5	30	G1/4	HML77	19.00
AH3172	340	360	229	238	TR400X5	35		HM80	30.00
AOH3172	340	360	229	238	TR400X5	35	G1/4	HM80	30.00
AH3272	340	360	274	283	TR400X5	40		HM80	33.00
AOH3272	340	360	274	283	TR400X5	40	G1/4	HM80	33.00
AH24072	340	360	206	226	TR380X5	26		HM76	20.00
AOH24072	340	360	206	226	TR380X5	26	G1/4	HM76	20.00
AH24172	340	360	269	289	TR380X5	26		HM76	26.00
AOH24172	340	360	269	289	TR380X5	26	G1/4	HM76	26.00
AH3076	360	380	170	180	TR410X5	31		HML82	23.50
AOH3076	360	380	170	180	TR410X5	31	G1/4	HML82	23.50
AH3176	360	380	232	242	TR420X5	36		HM84	38.00
AOH3176	360	380	232	242	TR420X5	36	G1/4	HM84	38.00
AH3276	360	380	284	294	TR420X5	42		HM84	45.50
AOH3276	360	380	284	294	TR420X5	42	G1/4	HM84	45.50
AH24076	360	380	208	228	TR400X5	28		HM80	23.50
AOH24076	360	380	208	228	TR400X5	28	G1/4	HM80	23.50
AH24176	360	380	271	291	TR400X5	28		HM80	31.00
AOH24176	360	380	271	291	TR400X5	28	G1/4	HM80	31.00
