AH, AOH

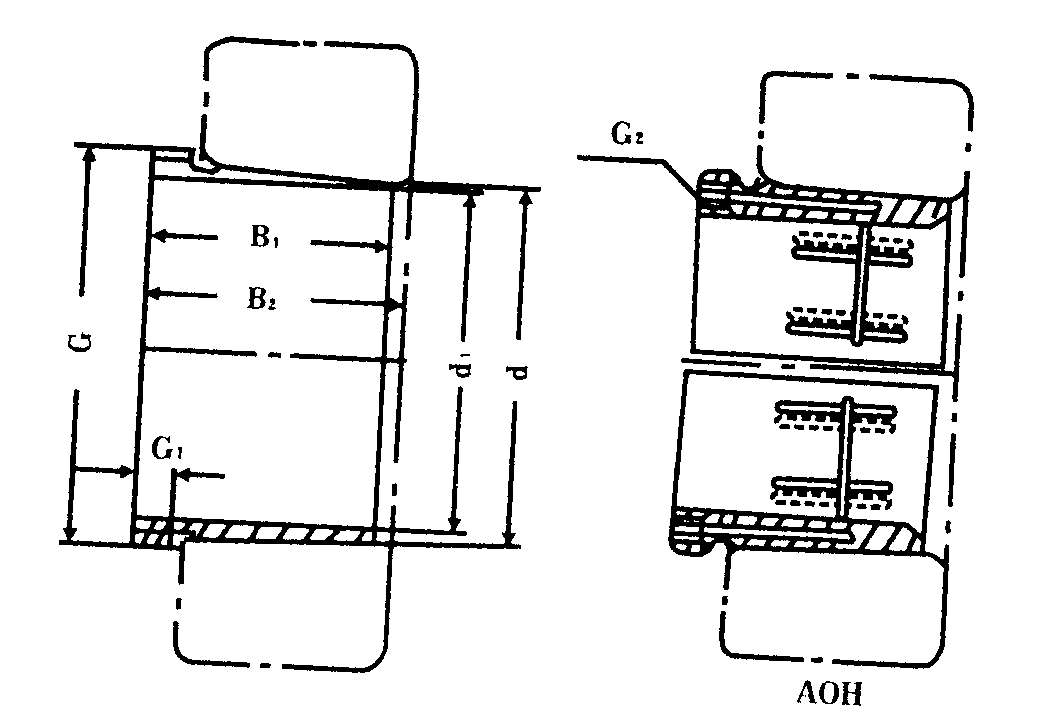

AH AOH drawing.png

Item No.	Boundary Dimensions（mm）							Lock Nut	N.Weight （kg)
Item No.	d1	d	B1	B2	G	G1	G2	Lock Nut	N.Weight （kg)
AH3080	380	400	183	193	TR430X5	33		HML86	27.00
AOH3080	380	400	183	193	TR430X5	33	G1/4	HML86	27.00
AH3180	380	400	240	250	TR440X5	38		HM88	39.50
AOH3180	380	400	240	250	TR440X5	38	G1/4	HM88	39.50
AH3280	380	400	302	312	TR440X5	44		HM88	51.50
AOH3280	380	400	302	312	TR440X5	44	G1/4	HM88	51.50
AH24080	380	400	228	248	TR420X5	28		HM84	27.00
AOH24080	380	400	228	248	TR420X5	28	G1/4	HM84	27.00
AH24180	380	400	278	298	TR420X5	28		HM84	35.00
AOH24180	380	400	278	298	TR420X5	28	G1/4	HM84	35.00
AH3084	400	420	186	196	TR450X5	34		HML90	29.00
AOH3084	400	420	186	196	TR450X5	34	G1/4	HML90	29.00
AH3184	400	420	266	276	TR460X5	40		HM92	46.00
AOH3184	400	420	266	276	TR460X5	40	G1/4	HM92	46.00
AH3284	400	420	321	331	TR460X5	46		HM92	59.00
AOH3284	400	420	321	331	TR460X5	46	G1/4	HM92	59.00
AH24084	400	420	230	252	TR440X5	30		HM88	29.00
AOH24084	400	420	230	252	TR440X5	30	G1/4	HM88	29.00
AH24184	400	420	310	332	TR440X5	30		HM88	39.00
AOH24184	400	420	310	332	TR440X5	30	G1/4	HM88	39.00
AH3088	420	440	194	205	TR470X5	35		HML94	31.90
AOH3088	420	440	194	205	TR470X5	35	G1/4	HML94	31.90
AH3188	420	440	270	281	TR480X5	42		HM96	50.00
AOH3188	420	440	270	281	TR480X5	42	G1/4	HM96	50.00
AH3288	420	440	330	341	TR480X5	48		HM96	64.50
AOH3288	420	440	330	341	TR480X5	48	G1/4	HM96	64.50
AH24088	420	440	242	264	TR460X5	30		HML92	32.00
AOH24088	420	440	242	264	TR460X5	30	G1/4	HML92	32.00
AH24188	420	440	310	332	TR460X5	30		HM92	45.50
AOH24188	420	440	310	332	TR460X5	30	G1/4	HM92	45.50
AHX3092	440	460	202	213	TR490X5	37		HML98	35.00
AOHX3092	440	460	202	213	TR490X5	37	G1/4	HML98	35.00
AHX3192	440	460	285	296	TR510X6	43		HM/510	58.00
AOHX3192	440	460	285	296	TR510X6	43	G1/4	HM/510	58.00
AHX3292	440	460	349	360	TR510X6	50		HM/510	75.50
AOHX3292	440	460	349	360	TR510X6	50	G1/4	HM/510	75.50
AH24092	440	460	250	273	TR480X5	32		HML96	34.50
AOH24092	440	460	250	273	TR480X5	32	G1/4	HML96	34.50
AH24192	440	460	332	355	TR480X5	32		HM96	50.00
AOH24192	440	460	332	355	TR480X5	32	G1/4	HM96	50.00
AHX3096	460	480	205	217	TR520X6	38		HML/520	39.60
AOHX3096	460	480	205	217	TR520X6	38	G1/4	HML/520	39.60
AHX3196	460	480	295	307	TR530X6	45		HM/530	63.00
AOHX3196	460	480	295	307	TR530X6	45	G1/4	HM/530	63.00
AHX3296	460	480	364	376	TR530X6	52		HM/530	82.50
AOHX3296	460	480	364	376	TR530X6	52	G1/4	HM/530	82.50
AH24096	460	480	250	273	TR500X5	32		HML/500	36.50
AOH24096	460	480	250	273	TR500X5	32	G1/4	HML/500	36.50
AH24196	460	480	340	363	TR500X5	32		HM/500	51.50
AOH24196	460	480	340	363	TR500X5	32	G1/4	HM/500	51.50
AHX30/500	480	500	209	221	TR540X6	40		HML540	42.50
AOHX30/500	480	500	209	221	TR540X6	40	G1/4	HML540	42.50
AHX31/500	480	500	313	325	TR550X6	47		HM/550	71.00
AOHX31/500	480	500	313	325	TR550X6	47	G1/4	HM/550	71.00
AHX32/500	480	500	393	405	TR550X6	54		HM/550	95.00
AOHX32/500	480	500	393	405	TR550X6	54	G1/4	HM/550	95.00
AH240/500	480	500	253	276	TR530X6	35		HML/530	42.00
AOH240/500	480	500	253	276	TR530X6	35	G1/4	HML/530	42.00
AH241/500	480	500	360	383	TR530X6	35		HM/530	57.00
AOH241/500	480	500	360	383	TR530X6	35	G1/4	HM/530	57.00
