W200 Series

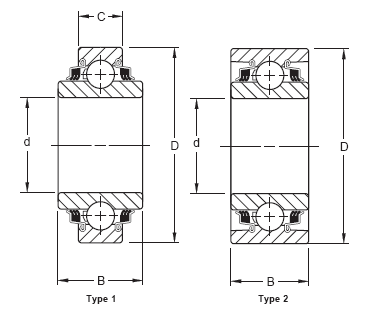

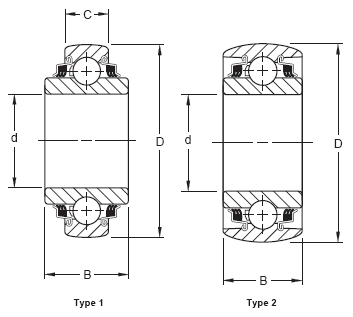

Bearing No. | Type | Boundary Dimensions(mm) | |||
d | D | B | C | ||
Cylindrical Bore | |||||
W208PP10 | 1-1. | 38.113 | 80 | 42.96 | 21 |
W208PPB2 | 1- | 38.113 | 80 | 42.96 | 18 |
W208PPB7 | 1-1. | 30.17 | 80 | 30.18 | 18 |
W208PPB23 | 1-1. | 38.113 | 80 | 42.96 | 30.18 |
W209PPB4 | 2-2. | 39 | 85 | 30.18 | 30.18 |
W209PPB2 | 2-2. | 45 | 85 | 30.18 | 30.18 |
W210PP8 | 2- | 38.88 | 90 | 30.18 | 30.18 |
W210PP2 | 2- | 49.23 | 90 | 30.18 | 30.18 |
W210PPB5 | 2- | 45.34 | 90 | 30.18 | 30.18 |
W210PPB2 | 2- | 49.23 | 90 | 30.18 | 30.18 |
W211PP2 | 2-2. | 55.58 | 100 | 33.34 | 33.34 |
W211PPB2 | 2-2. | 55.58 | 100 | 33.34 | 33.34 |
W214PP2 | 2- | 70 | 125 | 39.69 | 39.69 |
W214PPB2 | 2- | 70 | 125 | 39.69 | 39.69 |
W214PPB9 | 1- | 70.26 | 125 | 44.45 | 28 |
Square Bore | |||||
W208PP6 | 1-1. | 25.4 | 80 | 36.51 | 18 |
W208PP5 | 1-1. | 28.6 | 80 | 36.51 | 18 |
W208PP20 | 1-1. | 28.6 | 80 | 36.51 | 18 |
W208PP8 | 1-1. | 28.6 | 80 | 36.51 | 30.18 |
W208PPB13 | 1-1. | 22.2 | 80 | 36.53 | 18 |
W208PPB6 | 1-1. | 25.4 | 80 | 36.53 | 18 |
W208PPB5 | 1-1. | 28.6 | 80 | 36.53 | 18 |
W209PPB5 | 1-2. | 31.8 | 85 | 36.53 | 30.18 |
W210PPB4 | 2- | 28.6 | 90 | 30.18 | 30.18 |
W210PPB6 | 1- | 28.6 | 90 | 36.53 | 30.18 |
W211PP3 | 2-2. | 38.1 | 100 | 33.34 | 33.34 |
W211PP5 | 1-2. | 38.1 | 101.6 | 44.45 | 36.52 |
W211PPB3 | 2-2. | 38.1 | 100 | 33.34 | 33.34 |
