UP000 Series

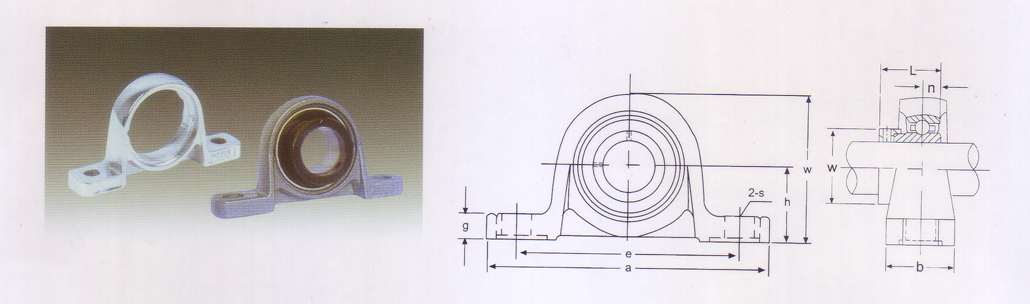

Unit No. | Shaft Dia d | Boundary Dimensions(mm) | Bolt Size | Bearing No. | Housing No. | |||||||||
| mm | h | a | e | b | s | g | W | L | n | w | (mm) | |||
| UP000 | 10 | 18 | 67 | 53 | 16 | 7 | 6 | 35 | 17.5 | 4 | 17 | M6 | U000 | P000 |
| UP001 | 12 | 19 | 71 | 56 | 16 | 7 | 6 | 38 | 17.5 | 4 | 19 | M6 | U001 | P001 |
| UP002 | 15 | 22 | 80 | 63 | 16 | 7 | 7 | 43 | 18.5 | 4.5 | 22 | M6 | U002 | P002 |
| UP003 | 17 | 24 | 85 | 67 | 18 | 7 | 7 | 47 | 20.5 | 5 | 25 | M8 | U003 | P003 |
| UP004 | 20 | 28 | 100 | 80 | 20 | 9 | 9 | 55 | 24.5 | 6 | 30 | M8 | U004 | P004 |
| UP005 | 25 | 32 | 112 | 90 | 20 | 10 | 10 | 62 | 25.5 | 6 | 36 | M10 | U005 | P005 |
| UP006 | 30 | 36 | 132 | 106 | 26 | 11 | 11 | 70 | 26.5 | 6.5 | 42 | M10 | U006 | P006 |
