Products Bearings SN200

SN200

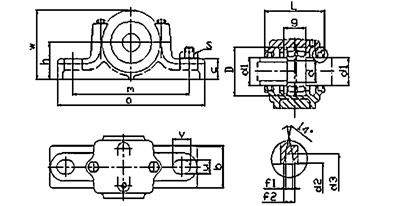

Housing No.	Boundary Dimensions (mm)															Housing Weight (kgs)	Bearing No.		Locating Ring
Housing No.	D H8	a	b	c	g H12	h hl2	L	W	m	u	V	d2 H12	d3 H12	fl U2	f2	Housing Weight (kgs)	Bearing No.		Number	QTY
SN205	52	165	46	22	25	40	67	75	130	15	20	31.5	43	4	5.4	1.4	1205 2205	22205	SR52x5 SR52x7	2 1
SN206	62	185	52	22	30	50	77	90	150	15	20	36.5	48	4	5.4	1.9	1206 2206	22206	SR62x7 SR62xlO	2 1
SN207	72	185	52	22	33	50	82	95	150	15	20	46.5	58	4	5.4	2.0	1207 2207	22207	SR72x8 SR72xlO	2 1
SN208	80	205	60	25	33	60	85	110	170	15	20	51.5	67	5	6.9	3.0	1208 2208	22208	SR80x7.5 SR80xl0	2 1
SN209	85	205	60	25	31	60	85	112	170	15	20	56.5	72	5	6.9	3.2	1209 2209	22209	SR85x6 SR85x8	2 1
SN210	90	205	60	25	33	60	90	115	170	15	20	62	77	5	6.8	3.4	1210 2210	22210	SR90x6.5 SR90xl0	2 1
SN211	100	255	70	28	33	70	95	130	210	18	23	67	82	5	6.8	4.5	1211 2211	22211	SR100x6 SRlOOxS	2 1
SN212	110	255	70	30	38	70	105	135	210	18	23	72	89	6	8.1	5.0	1212 2212	22212	SR110x8 SRllOxlO	2 1
SN213	120	275	80	30	43	80	110	150	230	18	23	77	94	6	8.1	5.4	1213 2213	22213	SR120xl0 SR120xl2	2 1
SN214	125	275	80	30	44	80	115	155	230	18	23	82	99	6	8.1	6.1	1214 2214	22214	SR125H10 SR125H13	2 1
SN215	130	280	80	30	41	80	115	155	230	18	23	87	104	6	8.1	7.4	1215 2215	22215	SR130x8 SR130xl0	2 1
SN216	140	315	90	32	43	95	120	175	260	22	27	92	111	7	9.3	9.5	1216 2216	22216	SR140x8.5 SR140xl0	2 1
SN217	150	320	90	32	46	95	125	185	260	22	27	97	116	7	9.3	10.0	1217 2217	22217	SR150x9 SR150xl0	2 1
SN218	160	345	100	35	62.4	100	145	195	290	22	27	102	125	8	10.8	12.8	1218 2218	22218 23218	SR160xl6.2 SR160xll.2 SR160xl0	2 2 1
SN219	170	345	100	35	53	112	140	210	290	22	27	113	135	8	10.7	17.8	1219 2219	22219	SR170xl0.5 SR170xl0	2 1
SN220	180	380	110	40	70.3	112	160	218	320	26	32	118	140	8	10.7	19.0	2220	22220 23220	SR180xl8.1 SR180xl2.1 SR180xl0	2 2 1
SN222	200	410	120	45	80	125	175	240	350	26	32	128	154	9	12.2	23	2222	22222 23222	SR200x21 SR200xl3.5 SR200xl0	2 2 1
SN224	215	410	120	45	86	140	185	270	350	26	32	138	164	9	12.2	25		22224 23224	SR215xl4 SR215xlO	2 1
SN226	230	445	130	50	90	150	190	290	380	28	36	148	178	10	13.7	28		22226 23226	SR230xl3 SR230xl0	2 1
SN228	250	500	150	50	98	150	205	305	420	33	42	158	188	10	13.7	36		22228 23228	SR250xl5 SR250xl0	2 1
SN230	270	530	160	60	106	160	220	325	450	33	42	168	198	10	13.7	45.5		22230 23230	SR270xl6.5 SR270xl0	2 1
SN232	290	550	160	60	114	170	235	345	470	33	42	178	208	10	13.7	56.5		22232 23232	SR290xl7 SR290xl0	2 1
