Products Bearings SN300

SN300

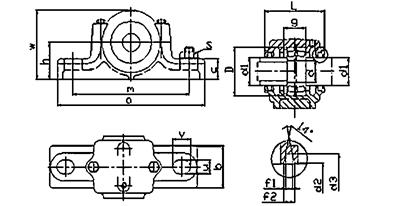

Housing No.	Boundary Dimensions (mm)															Housing Weight (kgs)	Bearing No.		Locating Ring
Housing No.	D H8	a	b	c	g H12	h hl2	L	W	m	u	V	d2 H12	d3 h13	f1 h13	f2	Housing Weight (kgs)	Bearing No.		Number	QTY
SN305	62	185	52	22	34	50	80	90	150	15	20	31.5	43	4	5.4	1.6	1305 2305		SR62x8.5 SR62xlO	2 1
SN306	72	185	52	22	37	50	82	95	150	15	20	36.5	48	4	5.4	1.9	1306 2306		SR72x9 SR72xlO	2 1
SN307	80	205	60	25	41	60	90	110	170	15	20	46.5	58	4	5.4	2.6	1307 2307		SR80xl0 SR80xl0	2 1
SN308	90	205	60	25	43	60	95	115	170	15	20	51.5	67	4	5.4	3.2	1308 2308	21308 22308	SR90xl0 SR90xl0	2 1
SN309	100	255	70	28	46	70	105	130	210	18	23	56.5	72	5	6.9	4.5	1309 2309	21309 22309	SR100xl0.5 SRlOOxlO	2 1
SN310	110	255	70	30	50	70	115	135	210	18	23	62	77	5	6.9	5.0	1310 2310	21310 22310	SRllOxll.5 SRllOxlO	2 1
SN311	120	275	80	30	53	80	120	150	230	18	23	67	82	5	6.8	6.6	1311 2311	21311 22311	SR120xl2 SR120xl0	2 1
SN312	130	280	80	30	56	80	125	155	230	18	23	72	89	5	6.8	7.0	1312 2312	21312 22312	SR130xl2.5 SR130xl0	2 1
SN313	140	315	90	32	58	95	130	175	260	22	27	77	94	6	8.1	8.8	1313 2313	21313 22313	SR140xl2.5 SR140xl0	2 1
SN315	160	345	100	35	65	100	140	195	290	22	27	87	104	6	8.1	11.4	1315 2315	21315 22315	SR160xl4 SR160xl0	2 1
SN316	170	345	100	35	68	112	145	212	290	22	27	92	111	6	8.1	13.0	1316 2316	21316 22316	SR170xl4.5 SR170xl0	2 1
SN317	180	380	110	40	70	112	155	218	320	26	32	97	116	7	9.3	16.0	1317 2317	21317 22317	SR180xl4.5 SR180xl0	2 1
SN318	190	400	110	33	74	112	160	230	320	26	35	102	125	8	10.8	22.8	1318 2318	22318	SR190xl5.5 SR190xl0	2 1
SN319	200	420	120	36	77	125	170	245	350	26	35	113	135	8	10.7	27.8	1319 2319	22319	SR200xl6 SR200xl0	2 1
SN320	215	420	120	38	83	140	175	280	350	26	35	118	140	8	10.7	34.0	1320 2320	22320	SR215xl8 SR215xlO	2 1
SN322	240	460	130	40	90	150	190	300	390	28	38	128	154	9	12.2	45.0	1322 2322	22322	SR240x20 SR240xl0	2 1
SN324	260	540	160	50	96	160	205	325	450	33	42	138	164	9	12.2	62.0		22324	SR260xl0	1
SN326	280	560	160	50	103	170	215	350	470	33	42	153	183	10	13.7	68.8		22326	SR280xl0	1
SN328	300	630	170	55	112	180	235	375	520	35	45	163	193	10	13.7	98.0		22328	SR300xl0	1
SN330	320	680	180	55	118	190	245	395	560	35	45	173	203	10	13.7	116.0		22330	SR320xl0	1
SN332	340	710	190	60	124	200	255	415	580	42	52	183	213	10	13.7	135.0		22332	SR340xl0	1
