Products Bearings SN500

SN500

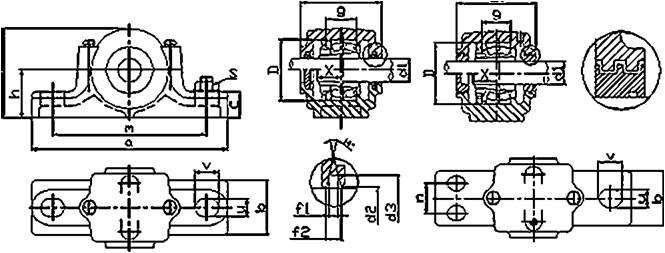

Housing No.	Boundary Dimensions (mm)															N.W. (kgs)	Brearing No.		Adapter Sleeve	Locating Ring
	D H8	a	b	c	g H12	h h12	L	W	m	u	v	d2 h12	d3 h12	f1 h13	f 2					Locating Ring
	D H8	a	b	c	g H12	h h12	L	W	m	u	v	d2 h12	d3 h12	f1 h13	f 2					Number	QTY
SN505	52	165	46	22	25	40	67	75	130	15	20	21.5	31	3	4.2	1.4	1205K 2205K	22205K	H205 HE205 H305 HE305	SR525 SR527	2 1
SN506	62	185	52	22	30	50	77	90	150	15	20	26.5	38	4	5.4	1.9	1206K 2206K	22206K	H206 HE206 H306 HE306	SR627 SR6210	2 1
SN507	72	185	52	22	33	50	82	95	150	15	20	31.5	43	4	5.4	2	1207K 2207K	22207K	H207 HE207 H307 HE307	SR728 SR7210	2 1
SN508	80	205	60	25	33	60	85	110	170	15	20	36.5	48	4	5.4	3.2	1208K 2208K	22208K	H208 HE208 H308 HE308	SR807.5 SR8010	2 1
SN509	85	205	60	25	31	60	85	112	170	15	20	41.5	53	4	5.4	3	1209K 2209K	22209K	H209 HE209 H309 HE309	SR85*6 SR85.8	2 1
SN510	90	205	60	25	33	60	90	115	170	15	20	46.5	58	4	5.4	3.4	1210K 2210K	22210K	H210 HE210 H310 HE310	SR906.5 SR9010	2 1
SN511	100	255	70	28	33	70	95	130	210	18	23	51.5	67	5	6.9	4.6	1211K 2211K	22211K	H211 HE211 H311 HE311	SR1006 SR1008	2 1
SN512	110	255	70	30	38	70	105	135	210	18	23	56.5	72	5	6.9	5	1212K 2212K	22212K	H212 HE212 H312 HE312	SR1108 SR11010	2 1
SN513	120	275	80	30	43	80	110	150	230	18	23	62	77	5	6.8	6.8	1213K 2213K	22213K	H213 HE213 H313 HE313	SR12010 SR12012	2 1
SN515	130	280	80	30	41	80	115	155	230	18	23	67	82	5	6.8	7.4	1215K 2215K	22215K	H215 HE215 H315 HE315	SR1308 SR13010	2 1
SN516	140	315	90	32	43	95	120	175	260	22	27	72	89	6	8.1	9.5	1216K 2216K	22216K	H216 HE216 H316 HE316	SR1408.5 SR14010	2 1
SN517	150	320	90	32	46	95	125	185	260	22	27	77	94	6	8.1	10	1217K 2217K	22217K	H217 HE217 H317 HE317	SR1509 SR15010	2 1
SN518	160	345	100	35	62.4	100	145	195	290	22	27	82	99	6	8.1	12.8	1218K 2218K	22218K 23218K	H218 HE218 H318 HE318 H2318 HE2318	SR16016.2 SR16011.2 SR160*10	2 1
SN519	170	345	100	35	53	112	140	210	290	22	27	87	104	6	8.1	15.4	1219K 2219K	22219K	H219 HE219 H319 HE319	SR17010.5 SR17010	2 1
SN520	180	380	110	40	70.3	112	160	218	320	26	32	92	111	7	9.3	17.8	2220K	22220K 23220K	H320 HE320 H2320 HE2320	SR18012.1 SR18010	2 1
SN522	200	410	120	45	80	125	175	240	350	26	32	102	125	8	10.8	19	2222K	22222K 23222K	H322 HE322 H2322 HE2322	SR20013.5 SR20010	2 1
SN524	215	410	120	45	86	140	185	270	350	26	32	113	135	8	10.7	26		22224K 23224K	H3124 HE3124 H2324 HE2324	SR21514 SR21510	2 1
SN526	230	445	130	50	90	150	190	290	380	28	36	118	140	8	10.7	32		22226K 23226K	H3126 HE3126 H2326 HE2326	SR23013 SR23010	2 1
SN528	250	500	150	50	98	150	205	305	420	33	42	128	154	9	12.2	40		22228K 23228K	H3128 HE3128 H2328 HE2328	SR25015 SR25010	2 1
SN530	270	530	160	60	106	160	220	325	450	33	42	138	164	9	12.2	47.2		22230K 23230K	H3130 HE3130 H2330 HE2330	SR23013 SR23010	2 1
SN532	290	550	160	60	114	170	235	345	470	33	42	143	173	10	13.7	56.5		22232K 23232K	H3132 HE3132 H2332 HE2332	SR25015 SR25010	2 1
