Products Bearings SN600

SN600

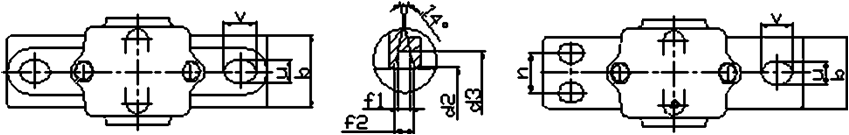

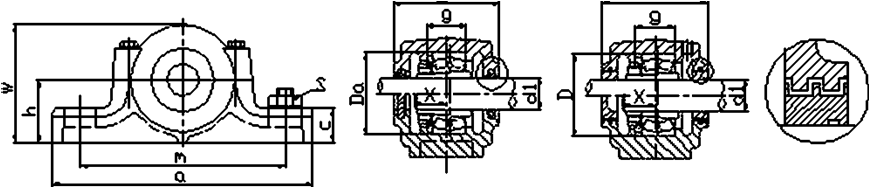

Housing No.	Boundary Dimensions (mm)														N.W. (kg)	Bearing No.		Adapter Sleeve		Locating Ring
Housing No.	D H8	a	b	c	L	Li	W	m	u	V	D2 H12	D3H12	F1 H13	F2	N.W. (kg)	Bearing No.		Adapter Sleeve		dumber	QTY
SN605	62	185	52	22	80	83	90	150	15	20	21.5	31	3	4.2	2.1	1305K 2305K		H305 H2305	HE305 HE2305	SR62x8.5 SR62xlO	2 1
SN606	72	185	52	22	82	85	95	150	15	20	26.5	38	4	5.4	2.8	1306K 2306K		H306 H2306	HE306 HE2306	SR72x9 SR72xlO	2 1
SN607	80	205	60	25	90	93	110	170	15	20	31.5	43	4	5.4	3.5	1307K 2307K		H307 H2307	HE307 HE2307	SRSOxlO SRSOxlO	2 1
SN608	90	205	60	25	95	100	115	170	15	20	36.5	48	4	5.4	4.2	1308K 2308K	21308K 22308K	H308 H2308	HE308 HE2308	SR90xl0 SR90xl0	2 1
SN609	100	255	70	28	105	110	130	210	18	23	41.5	53	4	5.4	5.0	1309K 2309K	21309K 22309K	H309 H2309	HE309 HE2309	SR100xl0.5 SRlOOxlO	2 1
SN610	110	255	70	30	115	120	135	210	18	23	46.5	58	4	5.4	6.1	1310K 2310K	21310K 22310K	H310 H2310	HE310 HE2310	SR110xll.5 SRllOxlO	2 1
SN611	120	275	80	30	120	125	150	230	18	23	51.5	67	5	6.9	6.5	1311K 2311K	21311K 22311K	H311 H2311	HE311 HE2311	SR120xl2 SR120xl0	2 1
SN612	130	280	80	30	125	130	155	230	18	23	56.5	72	5	6.9	7.9	1312K 2312K	21312K 22312K	H312 H2312	HE312 HE2312	SR130xl2.5 SRlSOxlO	2 1
SN613	140	315	90	32	130	135	175	260	22	27	62	77	5	6.8	10.8	1313K 2313K	21313K 22313K	H313 H2313	HE313 HE2313	SR140xl2.5 SR140X10	2 1
SN615	160	345	100	35	140	145	195	290	22	27	67	82	5	6.8	14.6	1315K 2315K	21315K 22315K	H315 H2315	HE315 HE2315	SR160xl4 SR160xl0	2 1
SN616	170	345	100	35	145	150	212	290	22	27	72	89	6	8.1	17.1	1316K 2316K	21316K 22316K	H316 H2316	HE316 HE2316	SR170X14.5 SR170xl0	2 1
SN617	180	380	110	40	155	160	218	320	26	32	77	94	6	8.1	18.7	1317K 2317K	21317K 22317K	H317 H2317	HE317 HE2317	SR180X14.5 SRlSOxlO	2 1
SN618	190	400	110	33	160	165	230	320	26	35	82	99	6	8.1	24.1	1318K 2318K	22318K	H318 H2318	HE318 HE2318	SR190X15.5 SRlSOxlO	2 1
SN619	200	420	120	36	170	175	245	350	26	35	87	104	6	8.1	25.5	1319K 2319K	22319K	H319 H2319	HE319 HE2319	SR200X16 SR200X10	2 1
SN620	215	420	120	38	175	180	280	350	26	35	92	111	7	9.3	31	1320K 2320K	22320K	H320 H2320	HE320 HE2320	SR215X18 SR215X10	2 1
SN622	240	460	130	40	190	195	300	390	28	38	102	125	8	10.8	41.4	1322K 2322K	22322K	H322 H2322	HE322 HE2322	SR240x20 SR240xl0	2 1
SN624	260	540	160	50	205	210	325	450	33	42	113	135	8	10.7	54.6		22324K	H2324	HE2324	SR260xl0	1
SN626	280	560	160	50	215	220	350	470	33	42	118	140	8	10.7	67.2		22326K	H2326	HE2326	SR280xl0	1
SN628	300	630	170	55	235	240	375	520	35	45	128	154	9	12.2	92.6		22328K	H2328	HE2328	SR300X10	1
SN630	320	680	180	55	245	250	395	560	35	45	138	164	9	12.2	101.5		22330K	H2330	HE2330	SR320X10	1
SN632	340	710	190	60	255	260	415	580	42	52	143	173	10	13.7	122.3		22332K	H2332	HE2332	SR340X10	1
