SBPFL200 Series

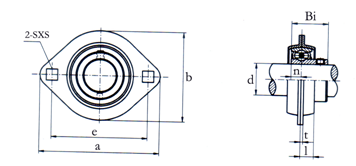

Unit No. | Shaft Dia d | Boundary Dimensions(mm) | Bolt Size | Bearing No. | Housing | ||||||||||
Housing No. | Mass (kg) | ||||||||||||||
| (in) | (mm) | a | e | l | b | t | s | n | Bi | (mm) | (in) | ||||
| SBPFL201-8 | 1/2. | 81 | 63 | 14 | 59 | 2 | 7 | 6 | 22 | M6 | 1/4. | SB201-8 | PFL203 | 0.19 | |
| SBPFL202-9 | 9/16. | SB202-9 | |||||||||||||
| SBPFL202-10 | 5/8. | SB202-10 | |||||||||||||
| SBPFL203-11 | 11/16. | SB203-11 | |||||||||||||
| SBPFL201 | 12 | SB201 | |||||||||||||
| SBPFL202 | 15 | SB202 | |||||||||||||
| SBPFL203 | 17 | SB203 | |||||||||||||
| SBPFL204-12 | 3/4. | 90 | 71 | 16 | 67 | 2 | 9 | 7 | 25 | M8 | 5/16. | SB204-12 | PFL204 | 0.24 | |
| SBPFL204 | 20 | SB204 | |||||||||||||
| SBPFL205-14 | 7/8. | 95 | 76 | 18 | 71 | 2 | 9 | 7.5 | 27 | M8 | 5/16. | SB205-14 | PFL205 | 0.28 | |
| SBPFL205-15 | 15/16 | SB205-15 | |||||||||||||
| SBPFL205-16 | 1 | SB205-16 | |||||||||||||
| SBPFL205 | 25 | SB205 | |||||||||||||
| SBPFL206-18 | 1-1/8. | 113 | 90 | 18 | 84 | 2.6 | 11 | 8 | 30 | M10 | 3/8. | SB206-18 | PFL206 | 0.38 | |
| SBPFL206-19 | 1-3/16. | SB206-19 | |||||||||||||
| SBPFL206-20 | 1-1/4. | SB206-20 | |||||||||||||
| SBPFL206 | 30 | SB206 | |||||||||||||
| SBPFL207-20 | 1-1/4. | 122 | 100 | 20 | 94 | 2.6 | 11 | 8.5 | 32 | M10 | 3/8. | SB207-20 | PFL207 | 0.65 | |
| SBPFL207-21 | 1-5/16. | SB207-21 | |||||||||||||
| SBPFL207-22 | 1-3/8. | SB207-22 | |||||||||||||
| SBPFL207-23 | 1-7/16. | SB207-23 | |||||||||||||
| SBPFL207 | 35 | SB207 | |||||||||||||
