SBPP200 Series

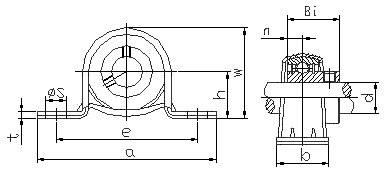

Unit No. | Shaft Dia d | Boundary Dimensions(mm) | Bolt Size | Bearing No. | Housing | |||||||||||
Housing No. | Mass (kg) | |||||||||||||||
| (in) | (mm) | h | a | e | b | s | t | w | n | Bi | (mm) | (in) | ||||
| SBPP201-8 | 1/2. | 22.2 | 86 | 68 | 25 | 9.5 | 3.2 | 44 | 6 | 22 | M8 | 5/16. | SB201-8 | PP203 | 0.16 | |
| SBPP202-9 | 9/16. | SB202-9 | ||||||||||||||
| SBPP202-10 | 5/8. | SB202-10 | ||||||||||||||
| SBPP203-11 | 11/16. | SB203-11 | ||||||||||||||
| SBPP201 | 12 | SB201 | ||||||||||||||
| SBPP202 | 15 | SB202 | ||||||||||||||
| SBPP203 | 17 | SB203 | ||||||||||||||
| SBPP204-12 | 3/4. | 25.4 | 98 | 76 | 32 | 9.5 | 3.2 | 50 | 7 | 25 | M8 | 5/16. | SB204-12 | PP204 | 0.24 | |
| SBPP204 | 20 | SB204 | ||||||||||||||
| SBPP205-14 | 7/8. | 28.6 | 108 | 86 | 32 | 11.5 | 4 | 56 | 7.5 | 27 | M10 | 3/8. | SB205-14 | PP205 | 0.28 | |
| SBPP205-15 | 15/16 | SB205-15 | ||||||||||||||
| SBPP205-16 | 1 | SB205-16 | ||||||||||||||
| SBPP205 | 25 | SB205 | ||||||||||||||
| SBPP206-18 | 1-1/8. | 33.3 | 117 | 95 | 38 | 11.5 | 4 | 66 | 8 | 30 | M10 | 3/8. | SB206-18 | PP206 | 0.38 | |
| SBPP206-19 | 1-3/16. | SB206-19 | ||||||||||||||
| SBPP206-20 | 1-1/4. | SB206-20 | ||||||||||||||
| SBPP206 | 30 | SB206 | ||||||||||||||
| SBPP207-20 | 1-1/4. | 39.7 | 129 | 106 | 42 | 11.5 | 4.6 | 78 | 8.5 | 32 | M10 | 3/8. | SB207-20 | PP207 | 0.65 | |
| SBPP207-21 | 1-5/16. | SB207-21 | ||||||||||||||
| SBPP207-22 | 1-3/8. | SB207-22 | ||||||||||||||
| SBPP207-23 | 1-7/16. | SB207-23 | ||||||||||||||
| SBPP207 | 35 | SB207 | ||||||||||||||
