UCX

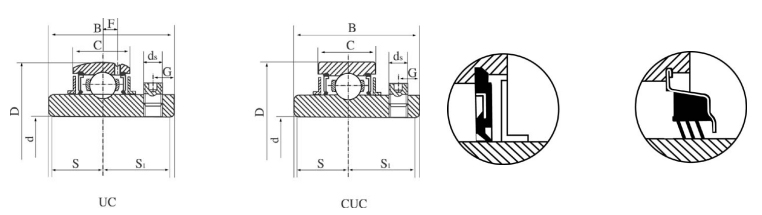

uc200 drawing.jpg

Bearing No.	Boundary Dimensions（mm/ inch）									Basic Load Rating(KN)		Weight

										Dynamic	Static	Kg(pc)
	d	D	B	C	S	s1	G	dS	F	Cr	Cor
UCX05	25	62 2.4409	38.1 1.5	19 0.748	15.9 0.626	22.2 0.874	5 0.197	M6×0.75 1/4-28UNF	5 0.197	14970	10040	0.39
UCX05-13	13/16
UCX05-14	7/8.
UCX05-15	15/16
UCX05-16	1
UCX06	30	72 2.8346	42.9 1.689	20 0.7874	17.5 0.689	25.4 1	7 0.276	M8×1 5/16-24UNF	5.7 0.224	19750	13670	0.68
UCX06-17	1-1/16.
UCX06-18	1-1/8.
UCX06-19	1-3/16.
UCX07	35	80 3.1496	49.2 1.937	21 0.8268	19 0.748	30.2 1.189	8 0.315	M8×1 5/16-24UNF	6.2 0.244	22710	15940	0.82
UCX07-21	1-5/16.
UCX07-22	1-3/8.
UCX07-23	1-7/16.
UCX08	40	85 3.3465	49.2 1.937	22 0.8661	19 0.748	30.2 1.189	8 0.315	M8×1 5/16-24UNF	6.4 0.252	24360	17710	0.93
UCX08-24	1-1/2.
UCX08-25	1-9/16.
UCX09	45	90 3.5433	51.6 2.0315	24 0.9449	19 0.748	32.6 1.283	10 0.394	M10×1 3/8-24UNF	6.5 0.256	26980	19840	1
UCX09-26	1-5/8.
UCX09-27	1-11/16.
UCX09-28	1-3/4.
UCX10	50	100 3.937	55.6 2.189	25 0.9843	22.2 0.874	33.4 1.315	10 0.394	M10×1 3/8-24UNF	7 0.276	33370	25110	1.35
UCX10-30	1-7/8.
UCX10-31	1-15/16
UCX11	55	110 4.3307	65.1 2.563	27 1.063	25.4 1	39.7 1.563	10 0.394	M10×1 3/8-24UNF	7.6 0.299	36740	27970	1.9
UCX11-33	2-1/16.
UCX11-34	2-1/8.
UCX11-35	2-3/16.
UCX12	60	120 4.3307	65.1 2.563	28 1.1024	25.4 1	39.7 1.563	10 0.394	M10×1 3/8-24UNF	8.5 0.335	44010	34180	2.27
UCX12-38	2-3/8.
UCX12-39	2-7/16.
UCX13	65	125 4.9213	74.6 2.937	29 1.1417	30.2 1.189	44.4 1.748	12 0.472	M12×1.5 1/2-20UNF	8.9 0.35	46790	37590	2.45
UCX13-40	2-1/2.
UCX13-41	2-9/16.
UCX14	70	130 5.1181	77.8 3.063	30 1.1811	33.3 1.311	44.5 1.752	12 0.472	M12×1.5 1/2-20UNF	9.2 0.362	50850	41260	2.47
UCX14-42	2-3/8.
UCX14-43	2-11/16.
UCX14-44	2-3/4.
UCX15	75	140 5.5118	82.6 3.252	32 1.2598	33.3 1.311	49.3 1.9409	12 0.472	M12×1.5 1/2-20UNF	9.5 0.374	55040	45090	3.11
UCX15-45	2-13/16
UCX15-46	2-7/8.
UCX15-47	2-15/16
UCX15-48	3
UCX16	80	150 5.9055	85.7 3.374	34 1.3386	34.1 1.343	51.6 2.031	12 0.472	M12×1.5 1/2-20UNF	10.2 0.402	64010	53280	3.79
UCX16-49	3-1/16.
UCX16-50	3-1/8.
UCX16-51	3-3/16.
UCX17	85	160 6.2992	96 3.7795	36 1.4173	39.7 1.563	56.3 2.217	12 0.472	M12×1.5 1/2-20UNF	11.2 0.441	73830	60760	4.82
UCX17-53	3-5/16.
UCX17-55	3-7/16.
